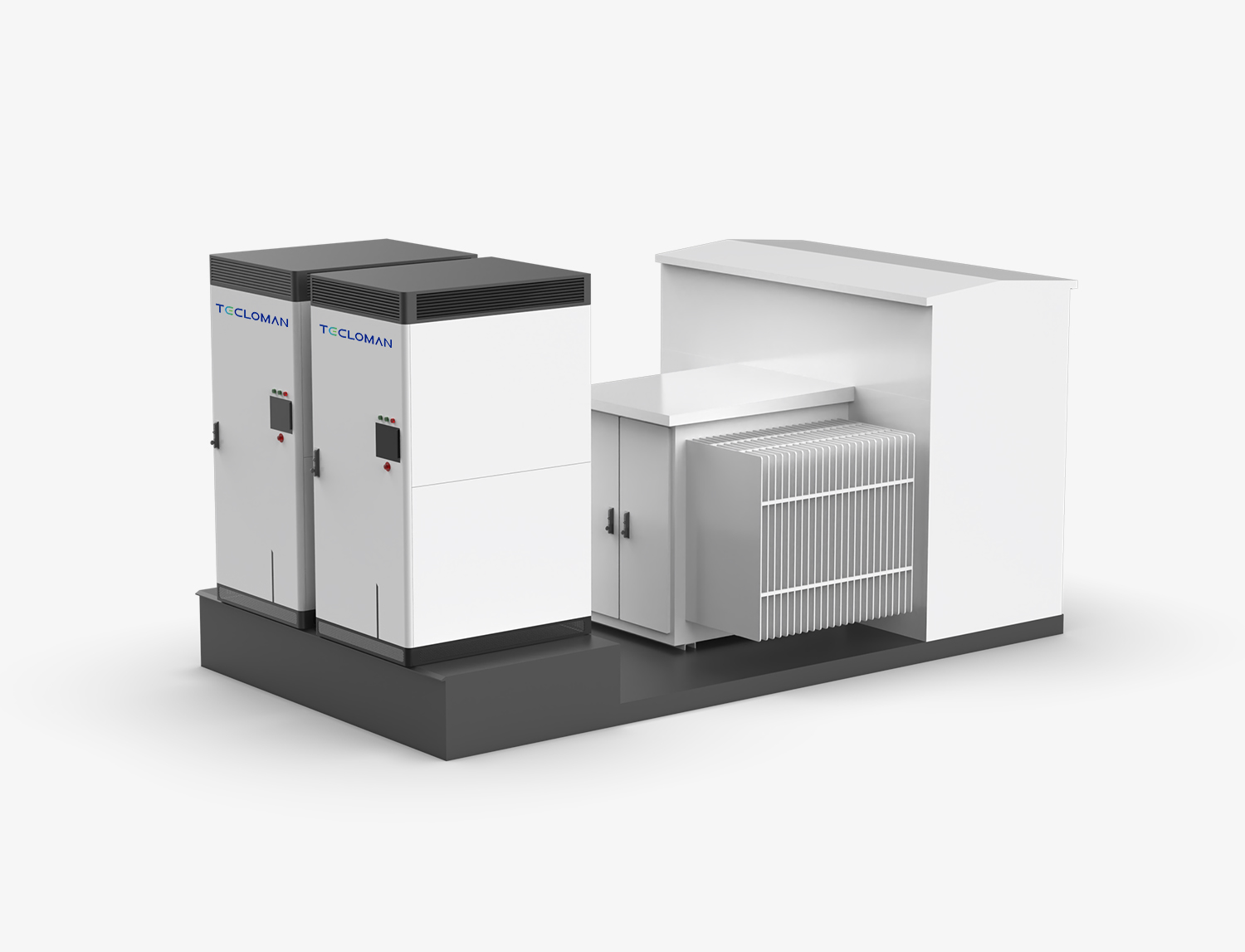

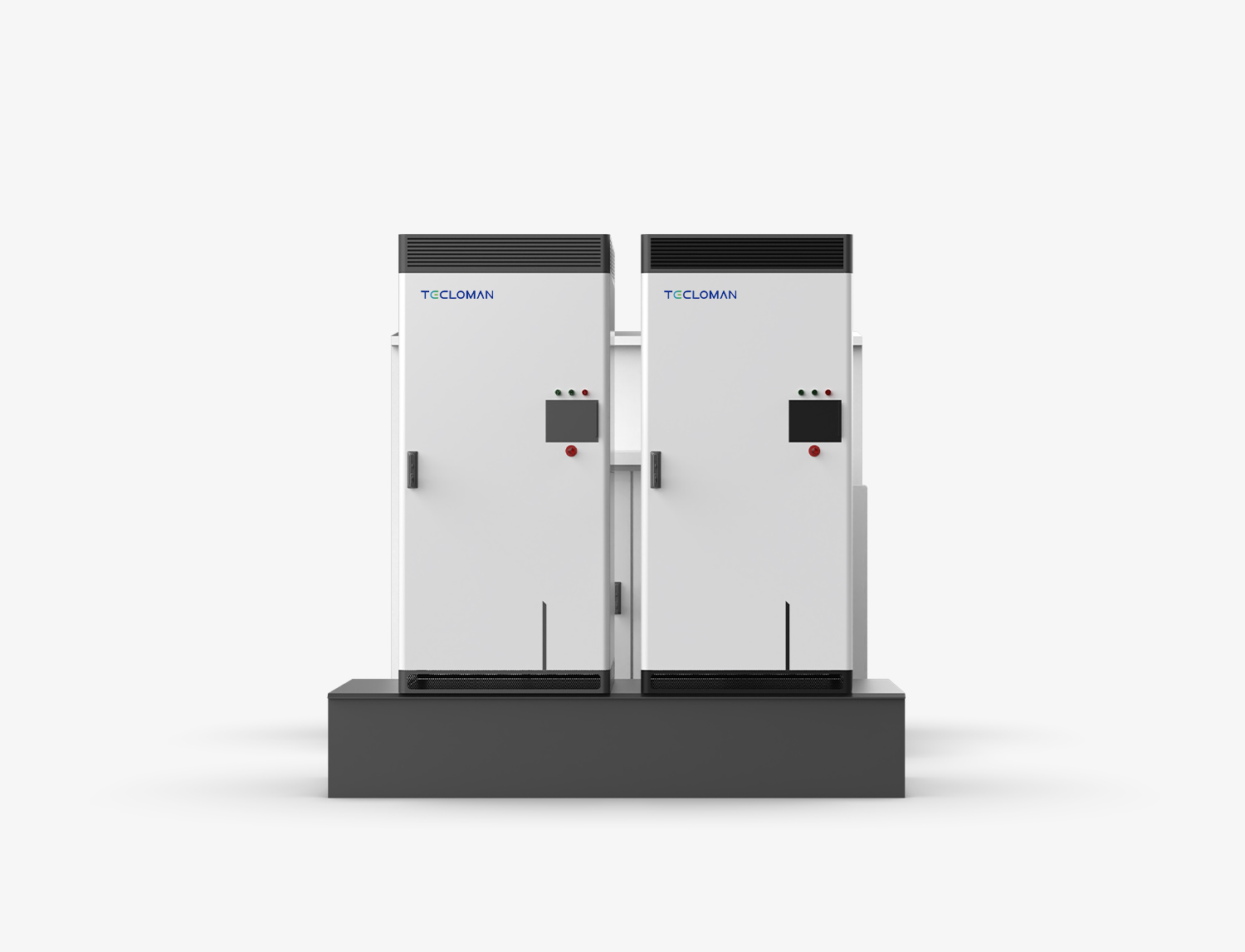

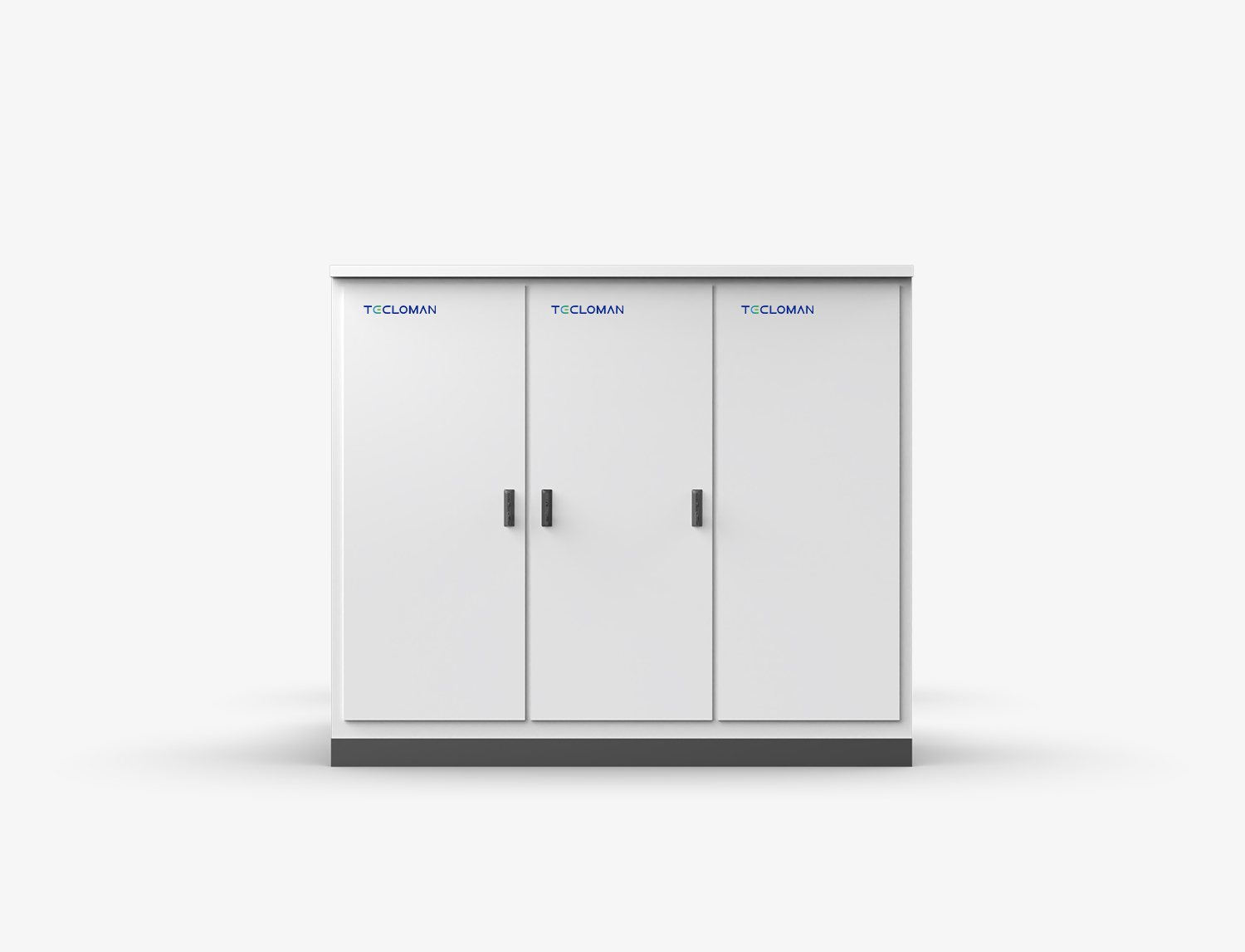

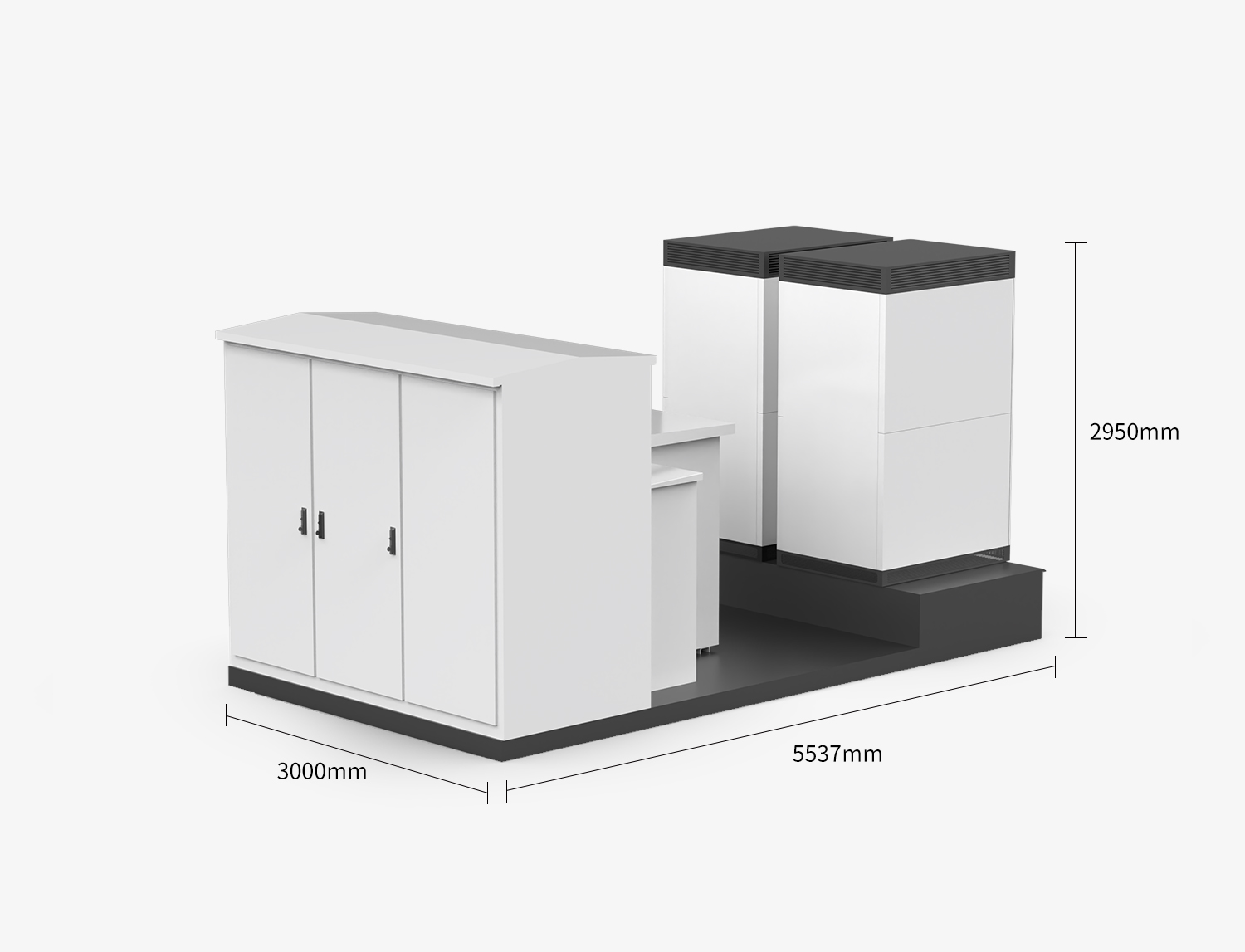

1500V PCS-MV Substation
Reasonable and efficient layout, improve space utilizationIntegration of secondary circuit, unified measurement, protection and communication
“Change” “Boost” – body design, to achieve integrated product delivery
Tri-level topology energy storage converter with 99.03% efficiency
Boost application type covers 35kV and below voltage levelSupport 110% overload, 50C no derating, high system stability
Discuss 1500V PCS-MV Substation.
Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.
Documents for this product.
All product documentsTechnical specifications
Explore the details behind the system.
Model | TBVS-2500K-TH | TBVS-2750K-TH | TBVS-3150K-TH | TBVS-3450K-TH | TBVS-5000K-TH | |
DC | Maximum DC voltage | 1500V | ||||
DC voltage range | 800 ~ 1500V | 800～1500V | 915～1500V | 1000～1500V | 1000～1500V | |
Maximum DC current | 3500A | 3858A | 3864A | 3872A | 6000A | |
Grid-connected output | Rated Power | 2500kW | 2750kW | 3150kW | 3450kW | 5000kW |
Maximum capacity | 2750kVA | 3025kVA | 3465kVA | 3795kVA | 6000kVA | |
Rated Voltage | 550V | 550V | 630V | 690V | 690V | |
Voltage range | -15%~ 10%(Range can be set) | |||||
Rated Frequency | 50Hz/60Hz | |||||
Maximum output current | 3176A | 5020A | ||||
Power factor | -1(overrun) ~ 1(lag) | |||||
THDI | <3%(rated power) | |||||
Off-grid output | Rated Voltage | 550V | 550V | 630V | 690V | 690V |
Maximum output current | 3176A | 5020A | ||||
THDU | <3%(linear load) | |||||
Rated Frequency | 50Hz/60Hz | |||||
Efficiency | Maximum efficiency | 99.03% | ||||
Transformer parameters | Rated capacity | 2500kVA | 2750kVA | 3150kVA | 3450kVA | 5000kVA |
Voltage Ratio | 0.55/(6~35)kV | 0.55/(6~35)kV | 0.63/(6~35)kV | 0.69/(6~35)kV | 0.69/(6~35)kV | |
Transformer Type | Dry transformer/oil transformer | |||||
Basic parameters | Protection Grade | IP54 | ||||
Operation ambient temperature | -15 "C~50'C(>50C derating operation) | |||||
Relative humidity | ≤90%RH, without condensation | |||||
Cooling | Forced air | |||||
Max. Altitude | 4000 m (> 2000 m derating) | |||||
Communication Interface | RS485 /Ethernet | |||||
Communication protocol | Modbus-RTU / Modbus-TCP/IEC61850/IEC104 | |||||
