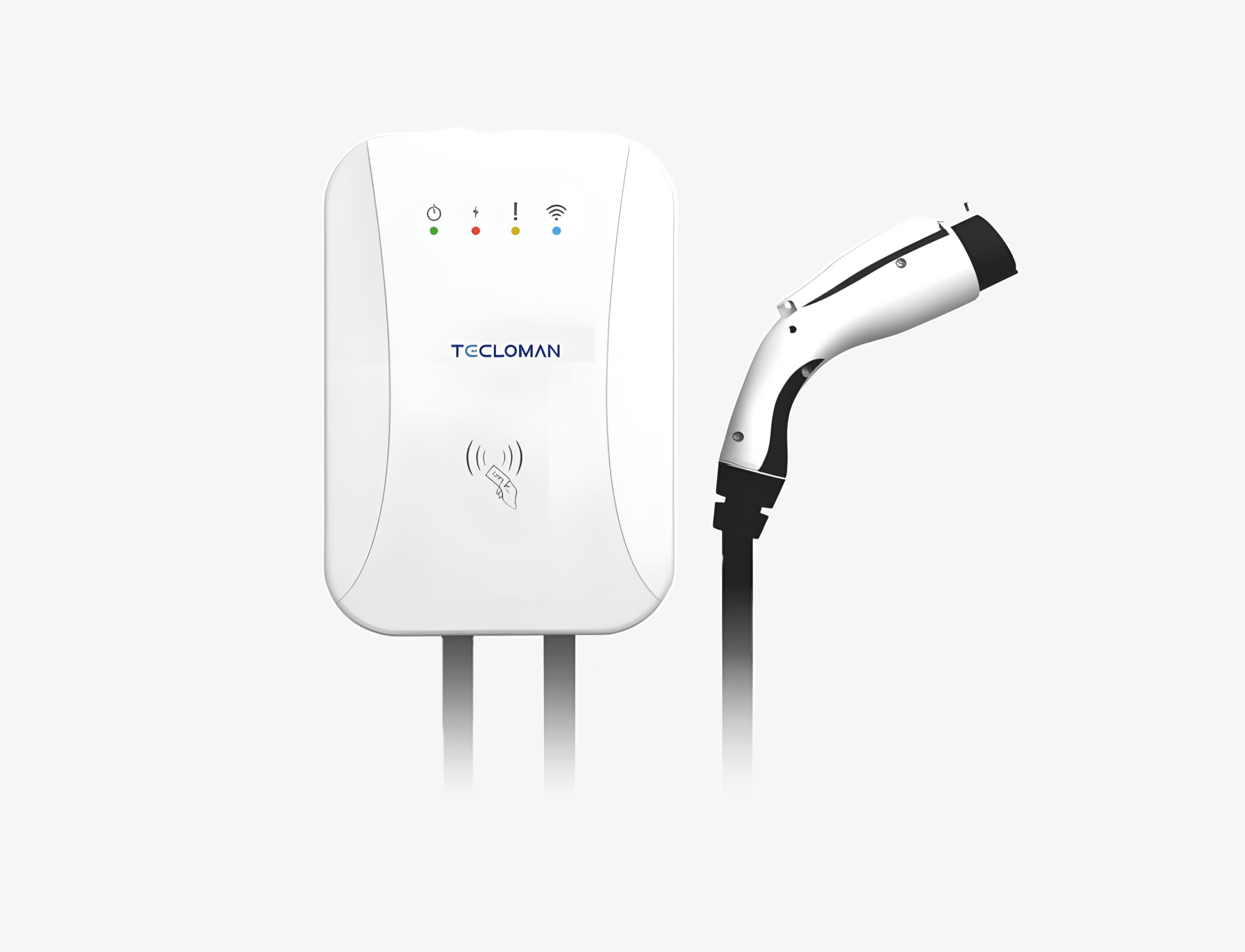

HP20
With attractive ergonomic enclosure and user-friendly body design,the classical HP20 wallbox charger is an intelligent,affordable and scalable charging solution.
The various communication modules are convenient for different users to flexibly choose,tailored to the specific needs of the market segments.Produced in strict accordance with UL regulations,each component performs excellent.Multiple listing negotiable.
Discuss HP20.
Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.
Documents for this product.
All product documentsTechnical specifications
Explore the details behind the system.
Item | HP10132E 7KW/32A | HP10316E 11KW/16A | HP10332E 22KW/32A | |||||
Input | Power Supply | 1P+N+PE | 1P+2P+3P+N+PE | 1P+2P+3P+N+PE | ||||
Rated Voltage | AC220V±15% | AC 380V±15% | AC380V±15% | |||||
Rated current | 32A | 16A | 32A | |||||
Output | Output Voltage | AC220V±15% | AC380V±15% | AC380V±15% | ||||
Maximum Current | 32A (6~32A adjustable) | 16A (0~16A adjustable) 22KW(MAX) | 32A (6~32A adjustable) | |||||
Rated Power | 7KW(MAX) | 11KW(MAX) | 22KW(MAX) | |||||
Dynamic load balancing(extra device) | O | O | O | |||||
User interface | Tethered/Untethered | Tethered-Type2.5M cable | Tethered-Type25M cable | Tethered-Type25M cable | ||||
Material | PC+ABS | |||||||
Colour | White front+grey back | |||||||
Indicator | 4 indicators | |||||||
Display | X | X | X | |||||
Ethernet(RJ45) | X | X | X | |||||
Wifi or Bluetooth | 2.4G wifi | |||||||
OCPP1.6 Interface | O | O | O | |||||
WE E-Charge App | O | O | O | |||||
Start Mode | RFID/APP | |||||||
Plug in and charge | O | O | O | |||||
Safety | Ingress Protection | IP65,IK10 | ||||||
Residual current protection | Type B RCMU | |||||||
Over load protection | √ | √ | √ | |||||
Over/Under voltage protection | √ | √ | √ | |||||
Short circuit protection | √ | √ | √ | |||||
Earth Leakage Protection | √ | √ | √ | |||||
Ground Protection | √ | √ | √ | |||||
Surge protection | √ | √ | √ | |||||
Over temperature | √ | √ | √ | |||||
PEN protection | O | O | √ | |||||
Certification | CE,RoHS,Reach | |||||||
Environment | Installation(mounting pole optional) | Wall mounted | ||||||
Work Temperature | -30~55℃ | -30~55℃ | -30~55℃ 3%~95% | |||||
Work Humidity | 3%~95% | 3%~95% | 3%~95% | |||||
Work Altitude | <2000m | |||||||
Package | Production Dimension(H*W*D)mm | 310*220*95 | 310*220*95 | 310*220*95 | ||||
Package Dimension(L*W*H)mm | 400*350*260 | 400*350*260 | 400*350*260 | |||||
