Battery Cell

Categories：

Other

Tag：

other

Their on phosphatelithiumcell,renowned forits high safety,environment alfriendliness,and long lifespan,can with stand more than 6000cycles.

YOUR PROJECT. A CLEARER NEXT STEP.

Discuss Battery Cell.

Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.

ENGINEERED FOR PERFORMANCE

Explore the details behind the system.

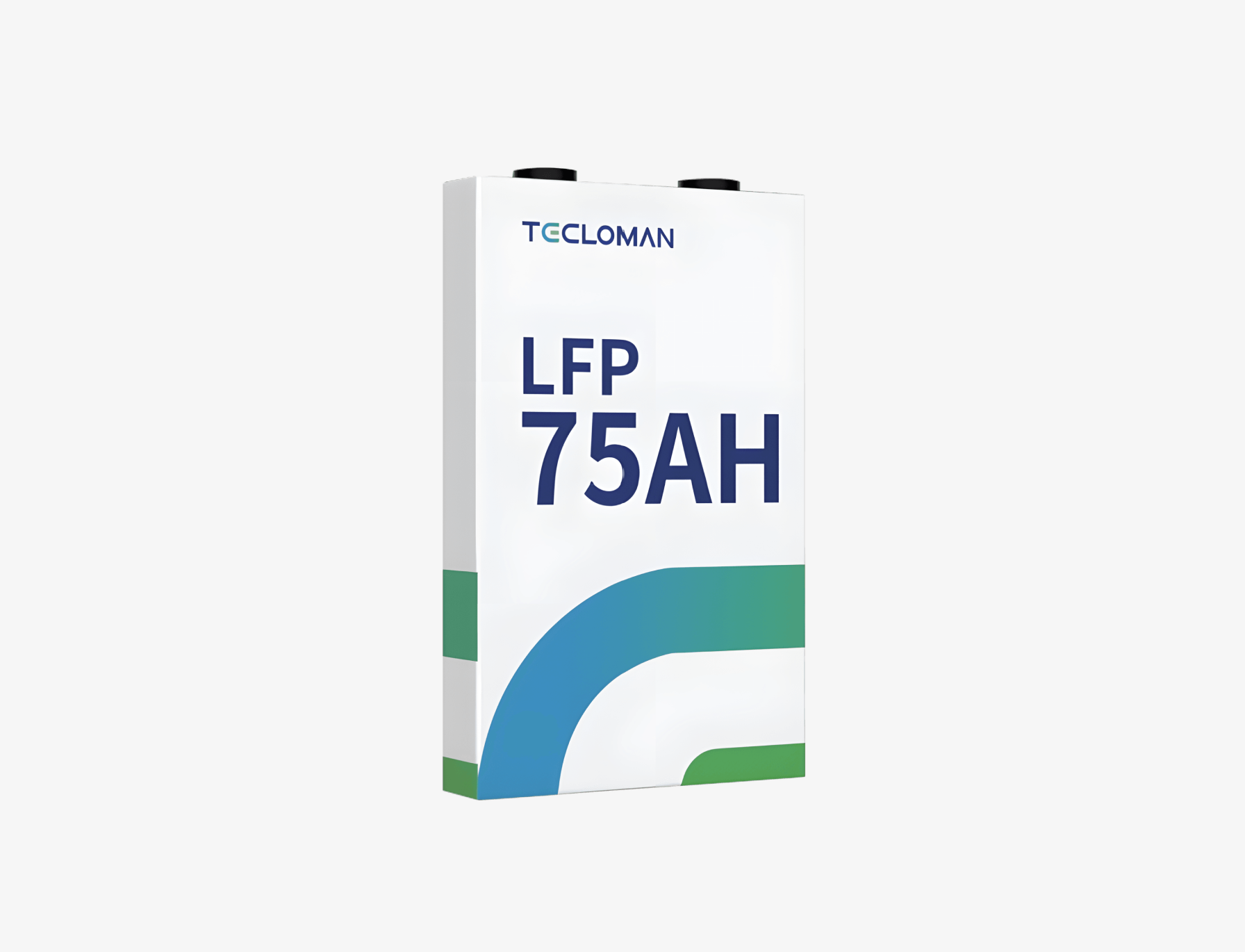

Model	LF75K
Cell specifications	3.2V/75Ah
Rated charge and discharge energy	240Wh
Nominal Voltage	3.2V
Nominal Capacity	75Ah
Quality	1.80土0.10kg
Dimensions	220mmx135mmx29mm
Internal resistance	≤0.6mΩ
Nominal charge/discharge current	37.5A/75.0A(0.5C/1.0C)
Maximum charge/discharge current	75.0A/150.0A(1.0C/2.0C)
Charge cut-off voltage	3.65V
Charge cut-offvoltage	2.50V
Energy density	≥133Wh/kg
Monthly self-discharge rate	≤3%/month
Operating Temperature for Discharge	-20℃~55℃
Operating Temperature for Charge	0°C-55℃
Cycle life	≥6000 cycles (0.5C,25°℃,3000±200 Nclamp force)
Certification&Safety Standards	UL1973、TUV(IEC62619)、MSDS、UN38.3、CCS,GB/T36276
