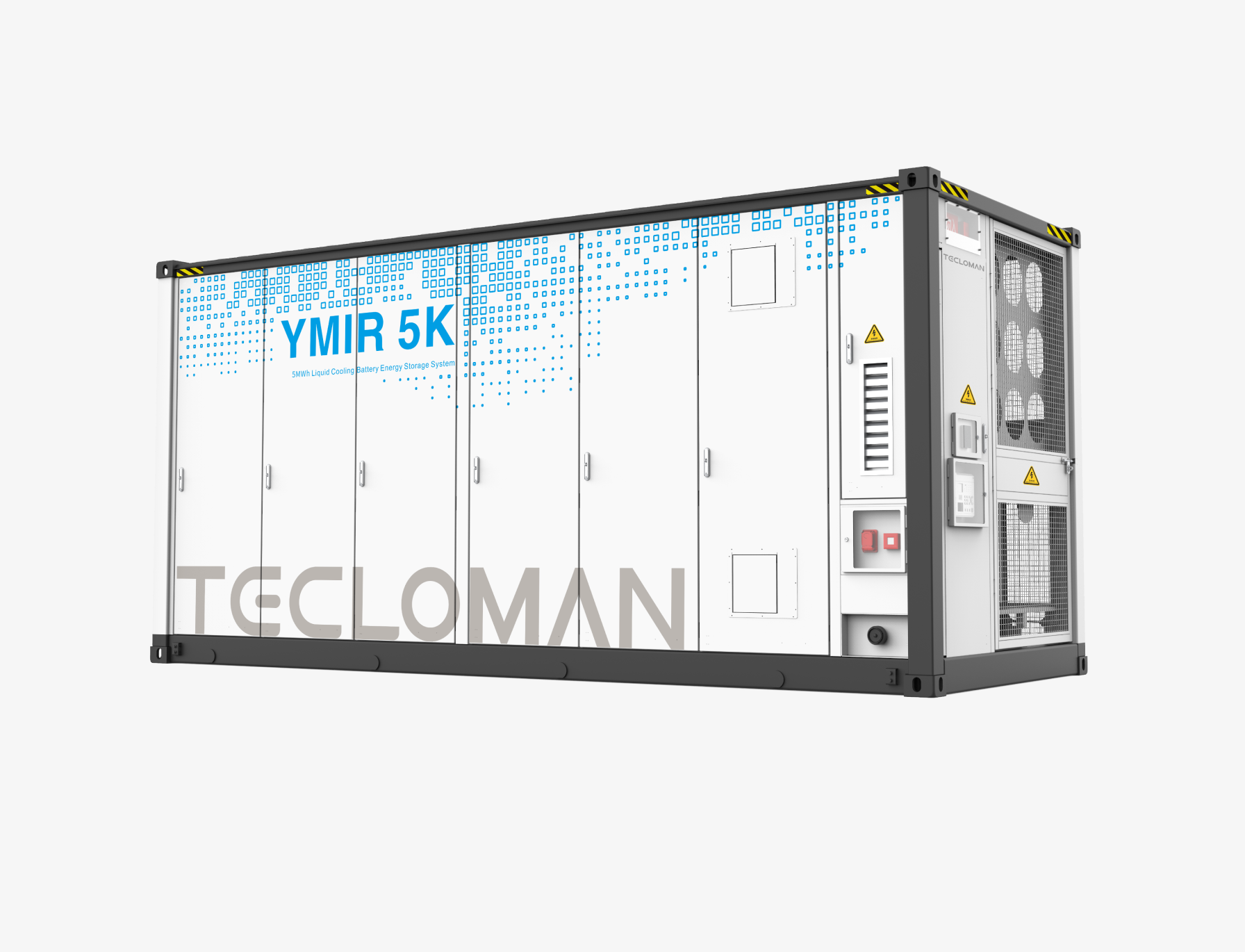

Ymir 5k
TECLOMAN 5MWh liquid cooling energy storage system adopts 314Ah LFP cells,maximum capacity up to 5MWh, extremely high energy density.
The system is integrated-designed,with built-in three- level BMS,UPS,liquid cooling system and fire suppression System
Flexible configurations allows multiple applications for utility scale energy storage power plants,and the energy density is increased by 40%compared with the previous product,which can significantly save cost and space.
Discuss Ymir 5k.
Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.
Documents for this product.
All product documentsTechnical specifications
Explore the details behind the system.
Model | TBAT-5016-15-L |
Container Size | 20ft |
CellType | LFP |
Cell Capacity | 314Ah |
Pack Size | 1P104S |
No.of Packs per Rack | 4 |
Max.Cell Voltage | 3.6V |
Min.Cell Voltage | 2.8V |
Rack Size | 1P416S |
No.of Racks | 12 |
Nominal Voltage Voltage Range | 1331.2 V 1164.8～1497.6V |
Nominal Capacity | 3768 Ah |
Battery Capacity(@BOL) | 5.016 MWh |
C-rate | 0.5C |
Charge/Discharge Current | 1884 A |
Ambient Temperature | -25～50℃ |
Cooling Method | Liquid cooling |
Relative Humidity | ≤95%RH,non-condensing |
Allowable Altitude | ≤5000m(>3000m needs to be customized) |
Protection Degree | IP54 |
Anti-corrosion | C4 |
FSS | Aerosol |
Weight | 43 T |
Dimension(W*D*H) | 6058×2438×2896 mm |
