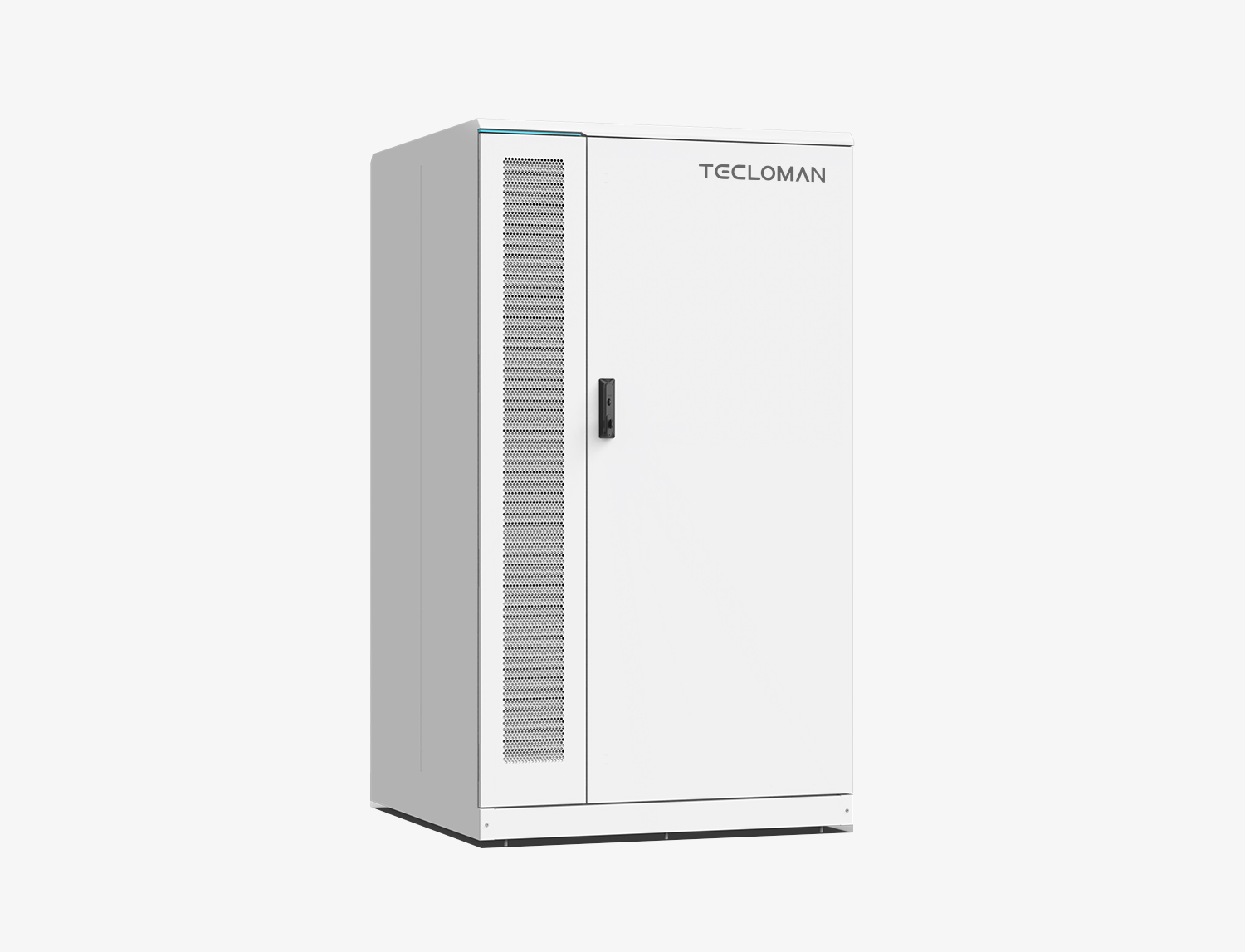

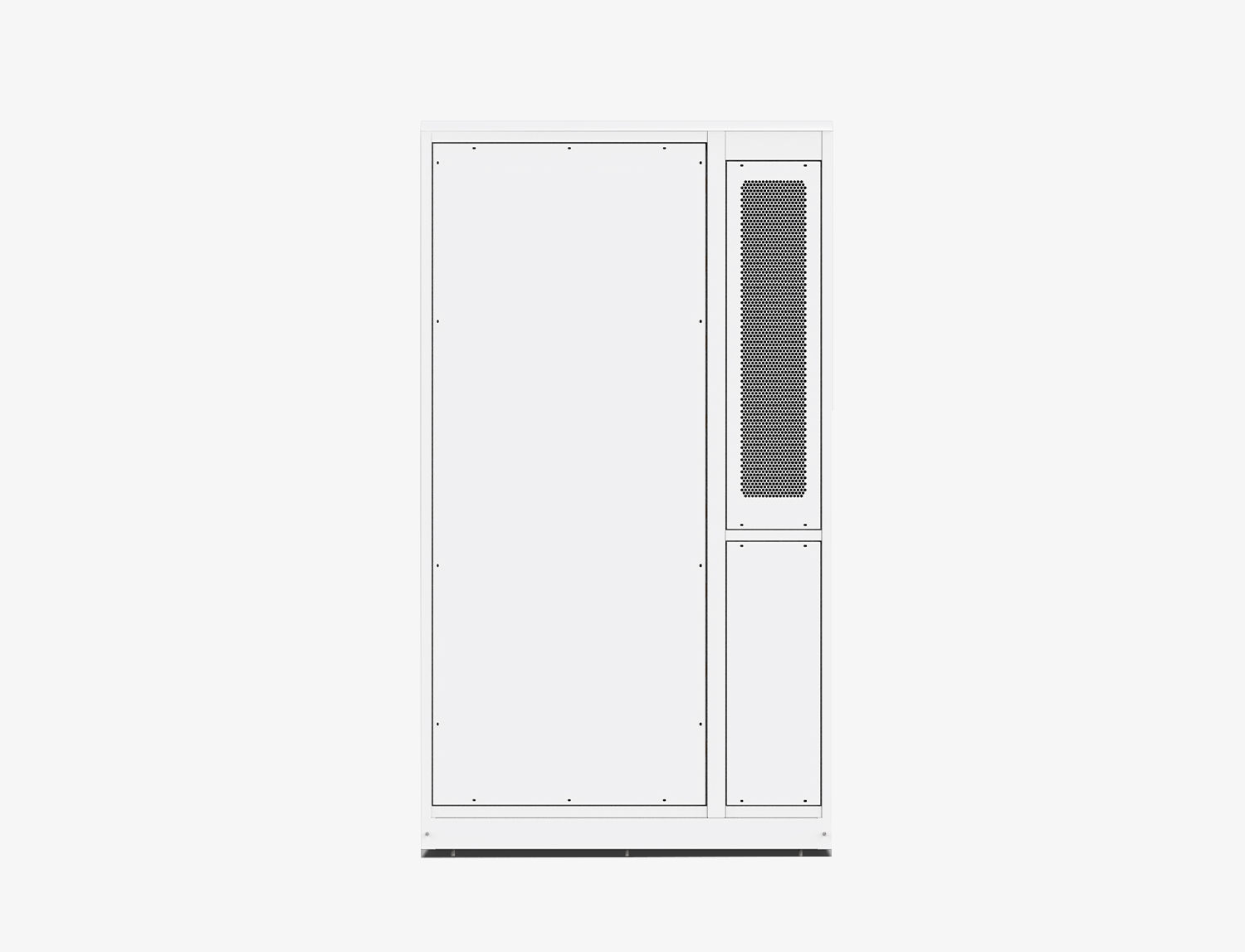

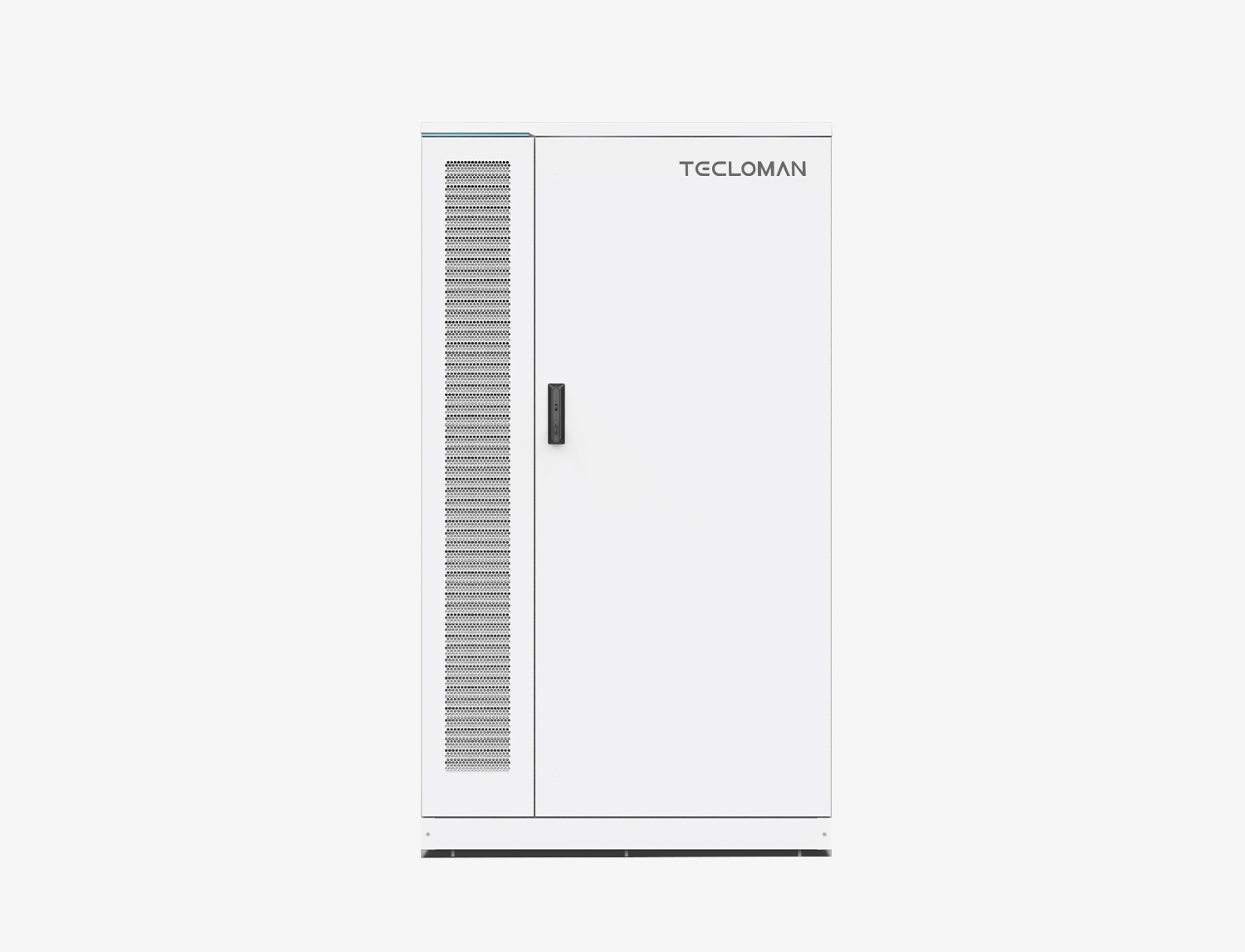

TRACK Outdoor Liquid-cooled Battery Cabinet
TRACK outdoor liquid-cooled battery cabinets adopt a modular design concept, equipped with efficient liquid-cooled battery modules and heat dissipation design to deliver ultra-high energy density. Compared with the containerized system, TRACK is more flexible, and the transportation and on-site assembly work is greatly simplified.
The system consists of Li-FePO4 battery modules, battery management system(BMS), liquid-cooled air-conditioning, fire-fighting system, etc. The TRACK can be connected to power conversion system(PCS) alone. or used in parallel. It can be widely applied in various energy storage scenarios, such as renewable energy consumption, peak shaving and valley filling, emergency power backup, and dynamic capacity increase.
Discuss TRACK Outdoor Liquid-cooled Battery Cabinet.
Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.
Documents for this product.
All product documentsTechnical specifications
Explore the details behind the system.
Model | TRACK-1500-372-L | TRACK-1500-417-L | ||
Cell Model | 280Ah | 314Ah | ||
Cell Type | LiFePO4 | |||
Formation Method | 1P416S | |||
Rated Voltage | 1331.2V | |||
Voltage Range | 1206.4V ~ 1456V | |||
| Rated energy | 372.736kWh | 417.996kWh | ||
Rated Charging/Discharging Power | 186kW | 208kW | ||
Rated Charge/Discharge Current | 140A | 157A | ||
Max. Continuous Charge/Discharge Curre | 280A | 157A | ||
Charge/Discharge Efficiency | ≥95% | |||
Battery Cluster Internal Resistance | ≤20mΩ | |||
Cycle Life | ≥6000次（0 .5C，25℃, 80%EOL，90%DOD） | |||
Operating Temperature | Charging: 0 ~ 55℃; Discharge: 20 ~ 55℃ | |||
Recommended Storage Temperature | 15 ~ 35℃ | |||
Relative Humidity | 0 ~ 90%RH | |||
Max. Allowable Altitude | 4000m (＞2000m derating ) | |||
Self-consumption/month | ≤3% | |||
Cooling | Liquid Cooling | |||
Production Process | Laser Welding | |||
Communication | CAN / RS485 / Dry Contact | |||
Weight | 4T | |||

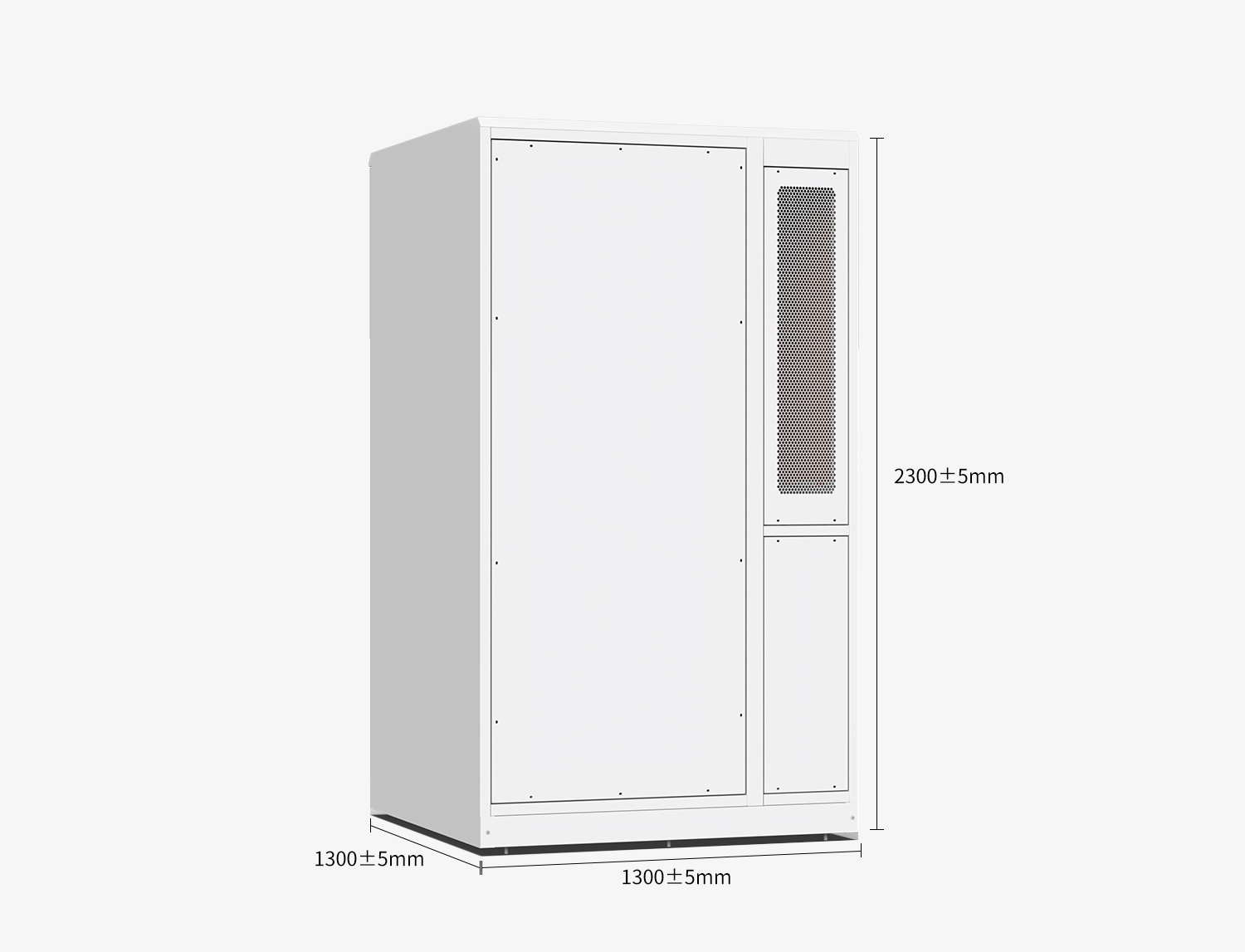

Dimension (W×D×H) | 1300mm×1300mm×2300mm | |||
Certificates | EMC/FCC/UN38 .3/UL1973/ EN62477-1/IEC62619/IEC60529/UL9540A | Not for now | ||
