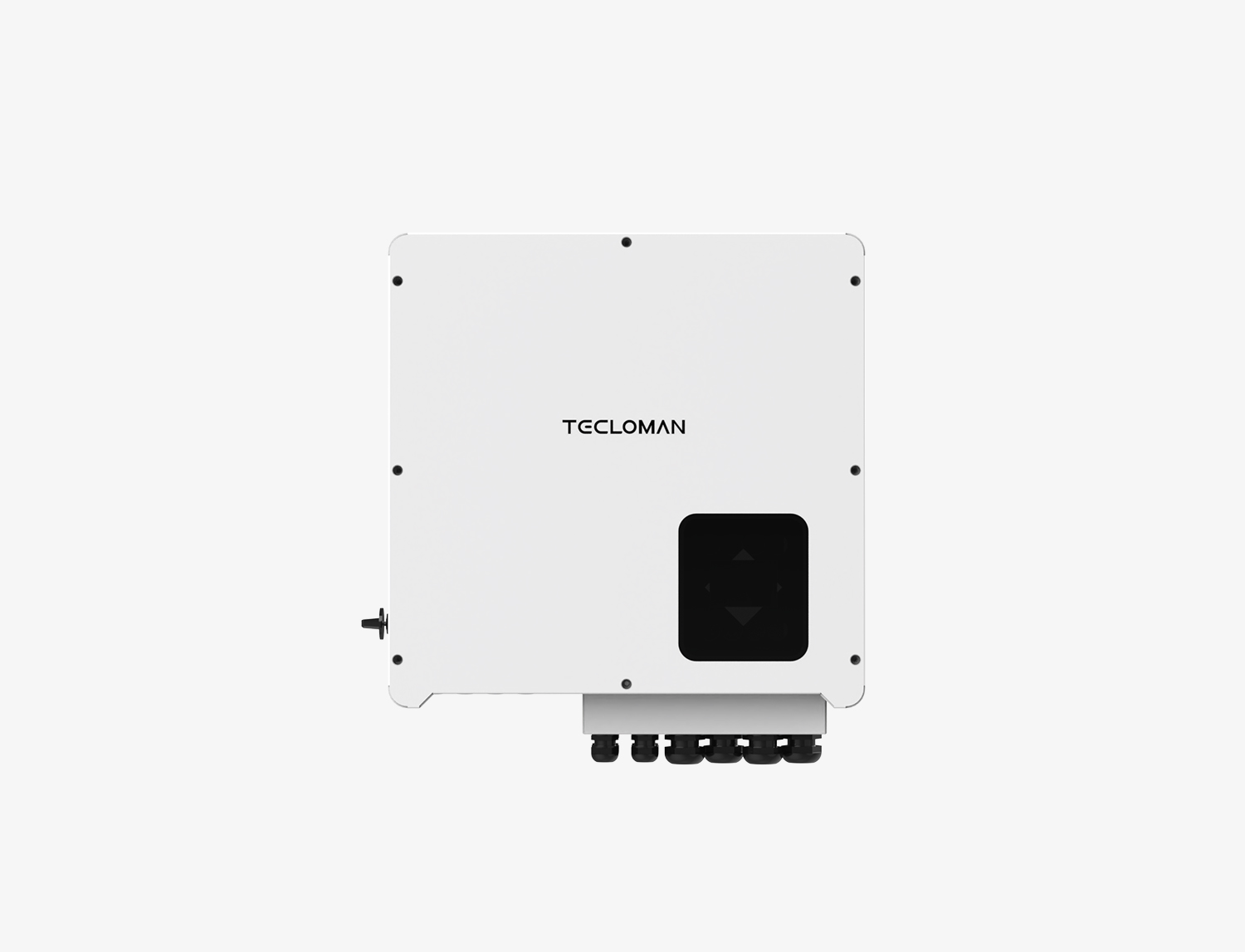

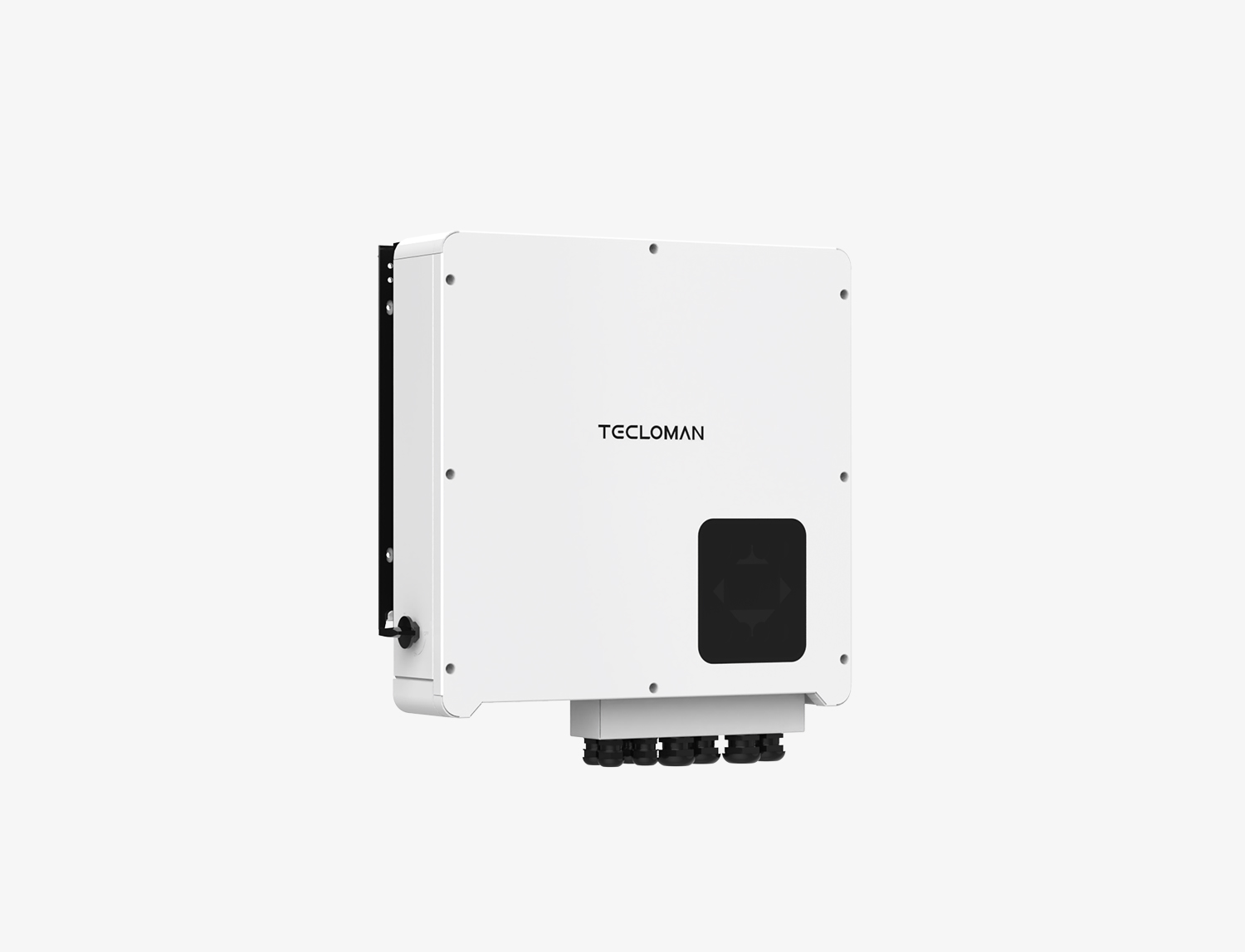

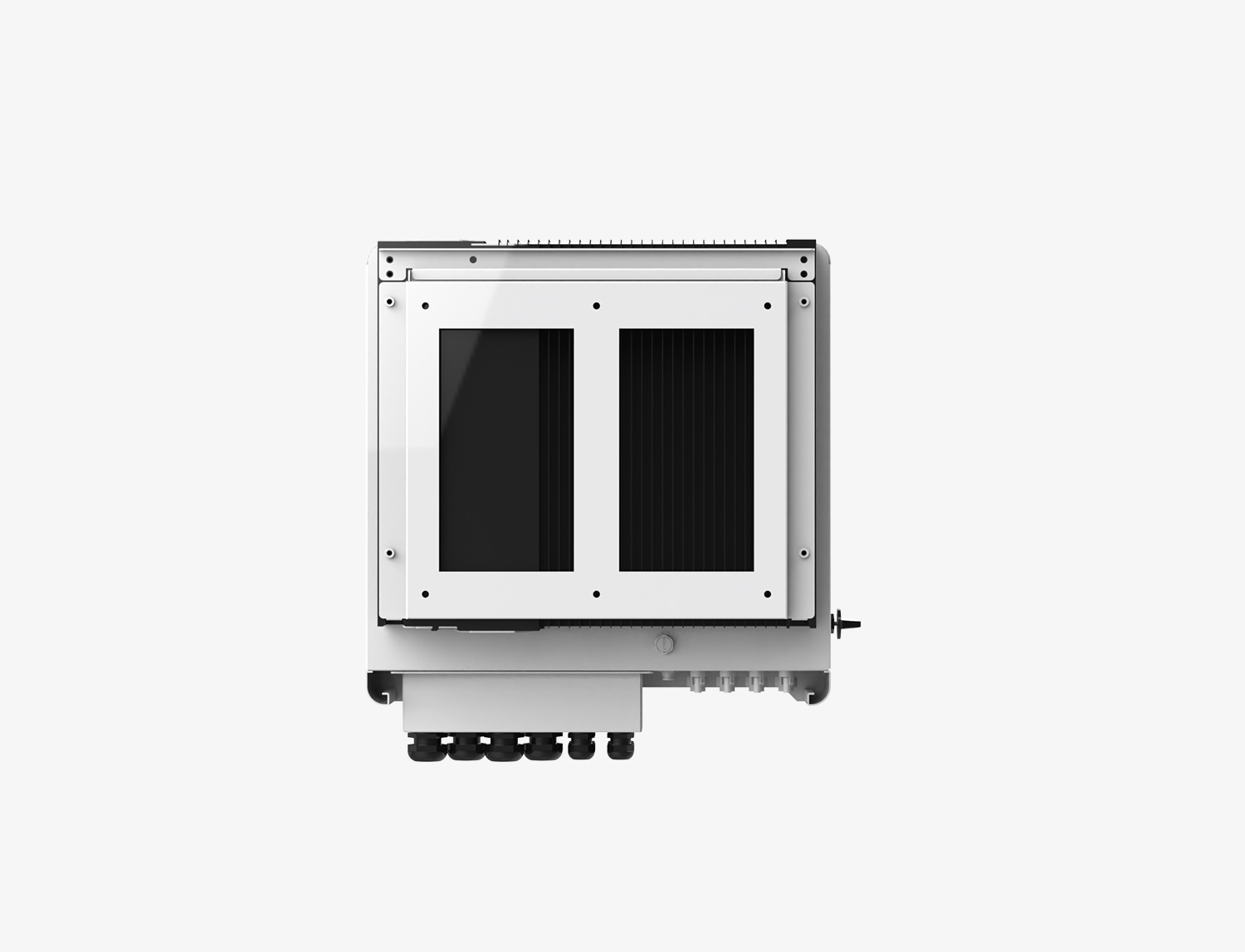

Three-Phase Residential Hybrid Inverter
Safe and reliable
With such functions as anti-island protection, inverse connection protection of PV input, inverse connection protection of battery input, insulation monitoring, residual current monitoring, AC overcurrent protection, AC overload protection and short-circuit protection
Flexible and friendly
Support the access of diesel generator;
Support the full power discharging and the automatic management of battery charging and discharging;
No external cooling fan designed, allaying the trouble about noise.
Economical and practical
Support multiple operating modes, which is more cost effective;Critical load of UPS protection available without grid.
Discuss Three-Phase Residential Hybrid Inverter.
Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.
Documents for this product.
All product documentsTechnical specifications
Explore the details behind the system.
Product model | R6KH3 | R8KH3 | R10KH3 | R12KH3 | R15KH3 |
Protection grade | IP65 | ||||
Operating temperature | -35~60°C | ||||
Relative humidity | 0-100% | ||||
Working altitude | 4,000m (derated above 2,000m) | ||||
Cooling type | Natural cooling | ||||
Noise | ≤25dB | ||||
Installation mode | Wall-mounted | ||||
EMC | IEC/EN 61000-6-1:2019, IEC/EN 61000-6-2:2019, IEC/EN 61000-6-3:2021, IEN/EN 61000-6-4:2019, IEC/EN 61000-3-2:2019/A1:2021, EN 61000-3-3:2013/A2:2021, IEC/EN 61000-3-11:2019, EN 61000-3-12:2011 | ||||
On-grid standard | Europe: EN 50549-1:2019/AC:2019, Poland: EN50549-1:2019/Rfg:2016/NC Rfg:2018/PTPiREE:2021, Germany: VDE-AR-N 4105:2018/DIN VDE V 0124-100 (VDE V 0124-100):2020, South Africa: NRS 097-2-1:2017 Edition 2.1, Britain: G99/1-6:2020, Spain: UNE217001:2020/UNE217002:2020/NTS V2.1:2021-07, IEC61727:2004/IEC62116:2014/IEC61683:1999, Hungary: EN50549-1:2019/RFG:2016/Hungary | ||||
Safety specification and standard | IEC/EN62109-1:2010,IEC/EN62109-2:2011 | ||||
Product Interface Parameters | |||||
Human-computer interaction | LCD;APP | ||||
BMS interface | RS485,CAN | ||||
EMS interface | RS485 | ||||
Electricity meter communication interface | RS485 | ||||
Support the communication interface | WIFI/GPRS /4G | ||||
Battery Interface Parameters | |||||
Maximum charging/discharging power | 6600W | 8800W | 11000W | 13200W | 16500W |
Battery voltage range | 125~600V | ||||
Operating voltage range of battery | 150~550V | ||||
Maximum charging/discharging current | 50A | ||||
Rated charging/discharging current | 40A | ||||
Battery type | Lithium battery and lead-acid cell | ||||
DC input parameters (PV side) | |||||
Maximum DC input power | 9000W | 12000W | 15000W | 18000W | 22500W |
Maximum DC input voltage | 1000V | ||||
MPPT voltage range | 180~850V | ||||
MPPT full-load voltage range | 250V~850V | 330V~850V | 430V~850V | 510V~850V | 620V~850V |
Starting voltage | 125V | ||||
Maximum input current of a single MPPT | 13/13A | 13/13A | 13/13A | 13/13A | 20/20A |
Maximum short circuit current | 16/16A | 16/16A | 16/16A | 16/16A | 30/30A |
Number of MPPTs | 2 | ||||
Number of MPPTs/maximum number of parallel strings | 1/1 1/1 | 1/1 1/1 | 1/1 1/1 | 1/1 1/1 | 2/2 1/1 |
Rated input voltage | 600V | ||||
AC side (grid-connected) parameters | |||||
Rated output power | 6000VA | 8000VA | 10000VA | 12000VA | 15000VA |
Maximum output power | 6600VA | 8800VA | 11000VA | 13200VA | 16500VA |
Maximum input power of grid | 13200VA | 17600VA | 22000VA | 26400VA | 33000VA |
Maximum input current of grid | 19.1A | 25A | 31.8A | 38.1A | 47.6A |
Rated output current | 8.7A | 11.5A | 14.4A | 17.3A | 21.7A |
Maximum output current | 9.5A | 12.7A | 15.9A | 19.1A | 23.8A |
Rated grid voltage | 380V/400V, 3W+N+PE | ||||
Rated grid frequency | 50Hz/60Hz | ||||
THDI | <2% | ||||
AC side (off-grid) parameters | |||||
Rated output power | 8000VA | 8000VA | 10000VA | 12000VA | 15000VA |
Maximum output rated power | 8800VA | 8800VA | 11000VA | 13200VA | 16500VA |
Rated output current | 8.7A | 11.5A | 14.4A | 17.3A | 21.7A |
Maximum output current | 9.5A | 12.7A | 15.9A | 19.1A | 23.8A |
Rated output voltage | 400V,3W+N+PE | ||||
Rated output frequency | 50Hz/60Hz | ||||
THDu | <2% | ||||
Maximum efficiency | 97.90% | 97.90% | 98.20% | 98.20% | 98.50% |
European efficiency | 97.20% | 97.20% | 97.50% | 97.50% | 97.60% |
MPPT efficiency | 99.90% | ||||
Maximum battery charging/discharging efficiency | 97.50% | 97.50% | 97.50% | 97.60% | 97.80% |
Mechanical parameters | |||||

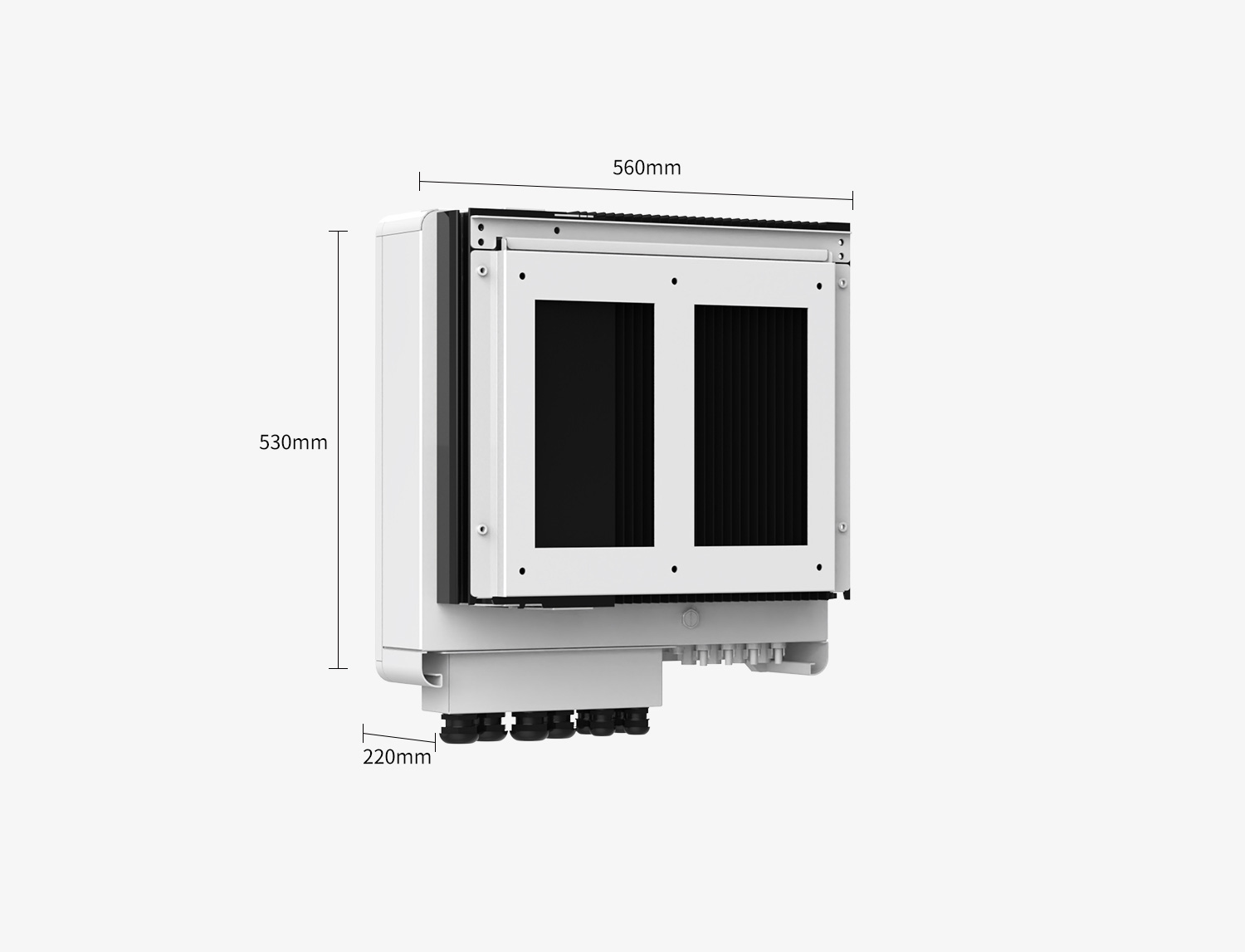

Length, width and thickness | 530*560*220mm | ||||
Weight | 30kg | 30kg | 31kg | 32kg | 34kg |
