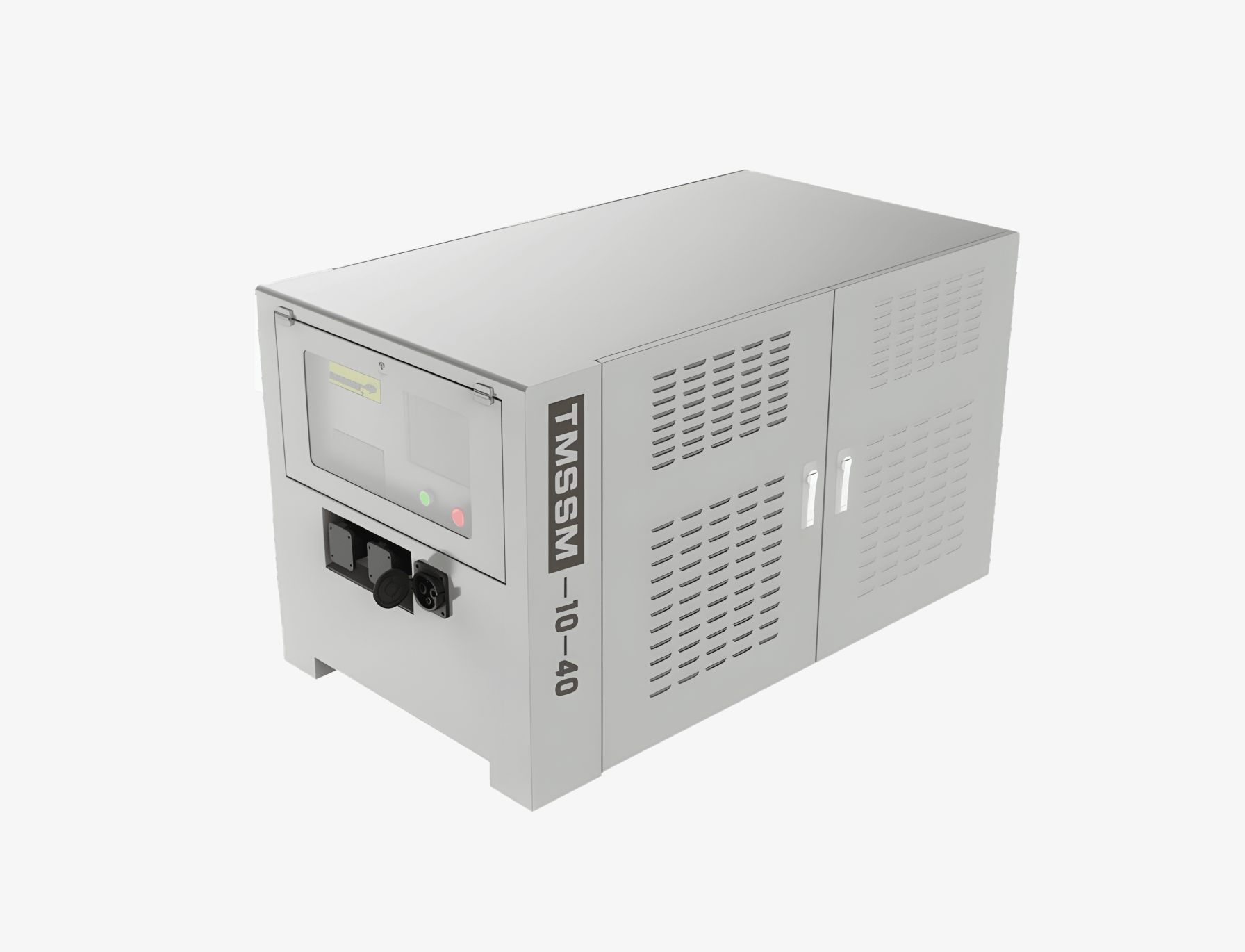

Off-grid Power Supply
1.Integrated,high protection grade structure design
2.Emergency stop protection alarmf eedbackfunction
3.Flexible capacity-and load increase,supporting parallel use with multiple sets
4.AC/DC charging interface,intelligent speed fast charging interface
5.Assembled convenient transportation installation
6.Intelligent human-computer interaction design with cloud technology support
Discuss Off-grid Power Supply.
Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.
Documents for this product.
All product documentsTechnical specifications
Explore the details behind the system.
Model | TESSM-10-40 | TESSM-20-40 |
AC grid-connected parameter | ||
Rated Power | 10KW | 20KW |
Input Type | Three-phase five-wire system | |
Input voltage | 380Vac±15% | |
Rated current | 16A | 32A |
Frequency range | 50/60Hz±5Hz | |
AC off-grid parameter | ||
Rated Power | 10kW | 20kW |
Output Type | Three-phase four-wire system | |
Rated Voltage | 380Vac±15% | |
Rated current | 16A | 32A |
Voltage Accuracy | ≤1% | |
Output Frequency | 50/60Hz±5Hz | |
Battery end parameters | ||
Battery capacity | 43.2kWh | |
Battery Type | Lithium iron phosphate | |
Rated Voltage | 192V | |
Voltage range | 168V-219V | |
Basic Features | ||
Peak efficiency | 91.0% | |
Protection Features | voltage,over current,over/under temperature,islanding,SOC too high/low,low insulation impedance,short circuit,etc. | |
Operating Temperature | 0℃~45℃ | |
Cooling method | Natural cooling | |
Relative humidity | ≤90%RH,non-condensing | |
Altitude | 4000 m(over 2000 m,itwill operate in derating | |
IP Protection Grade | IP54 | |
Communication mode | Ethernets RS485,4G | |
Dimensions (LxWxH) | 1460mm×840mm×825mm | |
Weight | 660kg | |
