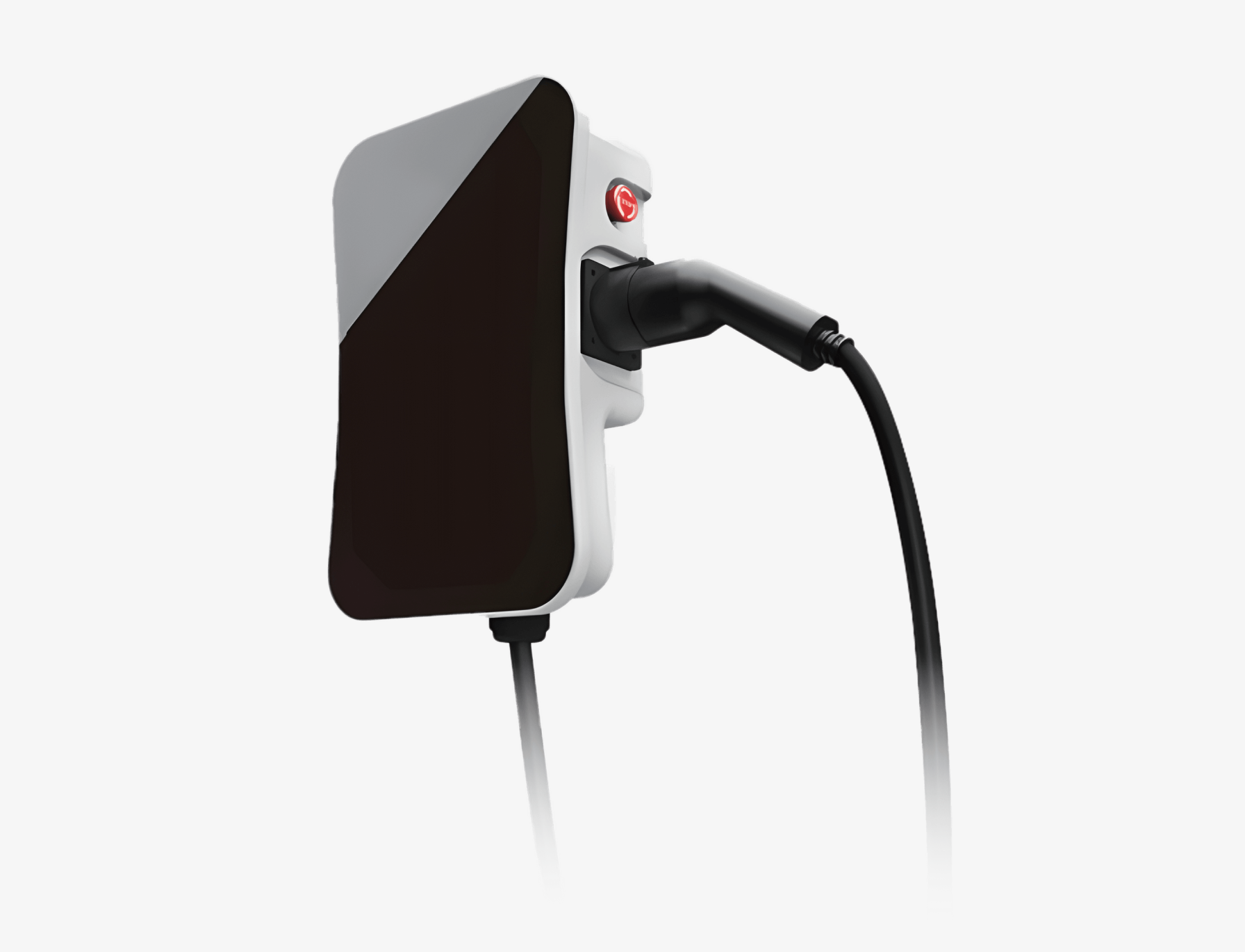

M3W EN-Series
Discuss M3W EN-Series.
Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.
Documents for this product.
All product documentsTechnical specifications
Explore the details behind the system.
Item | M3W132EN | M3W316EN | M3W332EN | |
Maximum Power | 7kW/32A -230VAC | 11kW/16A -400VAC | 22kW/32A -400VAC | |
Basic info | Tethered/Socket | Optional | ||
Connector | Type2 | |||
Dimension(H*W*D)mm Material | 410*260*164 Tempered glass front+metal plate back | |||
Colour | BLACK front+white back or OEM Color | |||
Indicator Display | 4 indicators 4.3-inch | |||
Features | Ethernet(RJ45) | Yes | ||
RFID | Yes | |||
WIFI | 2.4GHz | |||
4G RS485 | Optional Optional | |||
OCPP1.6J | Optional | |||
App | Optional | |||
Dynamic Load Balancing Solar Charging | Optional Optional | |||
Safety | Ingress Protection | IP54,IK08 | ||
Residual current protection | Type A30mA+6mADC | |||
Over load protection | Yes | |||
Over/Under voltage protection Short circuit protection | Yes Yes | |||
Earh Leakage Protection | Yes | |||
Ground Protection Surge protection | Yes Yes | |||
Over temperature Certification | Yes CE,RoHS,Reach,LVD,RED | |||
Certification Standard | EN IEC61851-1 | |||
Environment | Installation | Wall/Pole mounted | ||
Storge Temperature | -40~75℃ | |||
Work Temperature Work Humidity | -30~55℃ 3%~95% | |||
Work Altitude | <2000m | |||
