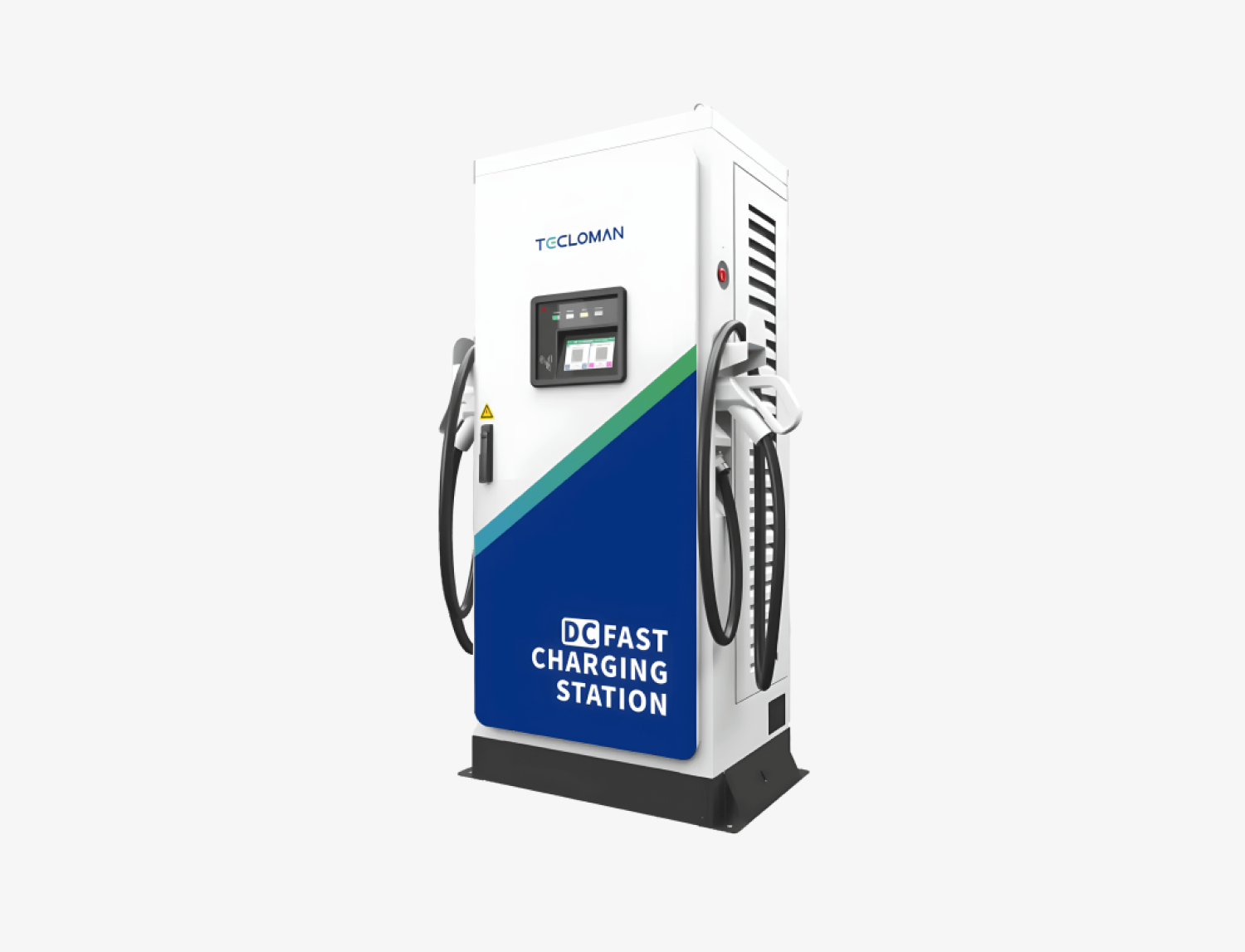

MF4 Series
Tecloman DC fast charging station can be equipped with 1 or 2 connectors,output power from80kw to 200 kW.It canquickly connect your EV,and charge to 80%or more in about 30 minutes.Our DC fastchargers are compatiblewith all types ofElectric Vehiclescurrently on the market withSAE J1772 plug standard.
Discuss MF4 Series.
Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.
Documents for this product.
All product documentsTechnical specifications
Explore the details behind the system.
Power Specifcations | MF4 |
Input AC Power Rating | 125kVA |
Input Voltage Range | 400 VAC ±10%, 50/60 Hz (EU Version) |
480 VAC ±10%, 50/60 Hz (North American Version) | |
Power Wiring | 3P+N+PE |
DC Voltage Output | 150 ~ 1000VDC |
Connector | CCS1+CCS1/CCS2+CCS2/CCS1+CCS2 |
DC Power Output Rating | 120kW |
The Maximum Output Current | 200A |
PF(Power Factor) | >0.98（Load≥50%） |
THD-I | ≤5％（400VAC input，Load≥50%） |
Peak Efficiency | ≥96% |
Output Voltage Error | ±0.5% |
Connector Mechanical Operating Life | ≥10000 times |
Voltage Stabilized Accuracy | ≤±0.5% |
Current Stabilized Accuracy | ≤±1% |
Ripple Factor | ≤±1%(when output current≥30A); ≤±0.3A(when output current＜30A) |
Electric Energy Measurement Method | ≤±0.5%(RMS) |
Output Current Error | Measuring DC output electric energy |
Connector Mechanical Operating | ≥1000 times |
User Inter ace & Control | |
Charging Control | App,RFID |
Human-Machine Interface | 7" high-contrast touchscreen |
Indicators | 4 LED indicators-Power/ Fault/Charging A/Charging B |
Network Interace | 3G/4G/Ethernet (RJ45) |
Communication Protocol | OCPP 1.6J |
Environmental | |
Storage Temperature | -40℃ to 75℃ |
Operating Temperature | -20℃ to 50℃, derating output in 55℃ |
Operating Humidity | Up to 95% non-condensing |
Altitude | ≤2000m |
Cooling Method | Forced air cooling |
Protection | |
Over Voltage Protection | Yes |
Over Load Protection | Yes |
Over-temp Protection | Yes |
Short Circuit Protection | Yes |
Ground Protection | Yes |
Surge Protection | Yes |
Emergency Stop | Yes |
Under Voltage Protection | Yes |
Mechanical | |
Protection Ratings | IP54 |
Reference Dimension (W×D×H) | 980mm×600mm×1820mm |
Equipment Weight | ≤ 300kg |
Enclosure Material | Metal |
Color | RAL 7032 (Grey) |
