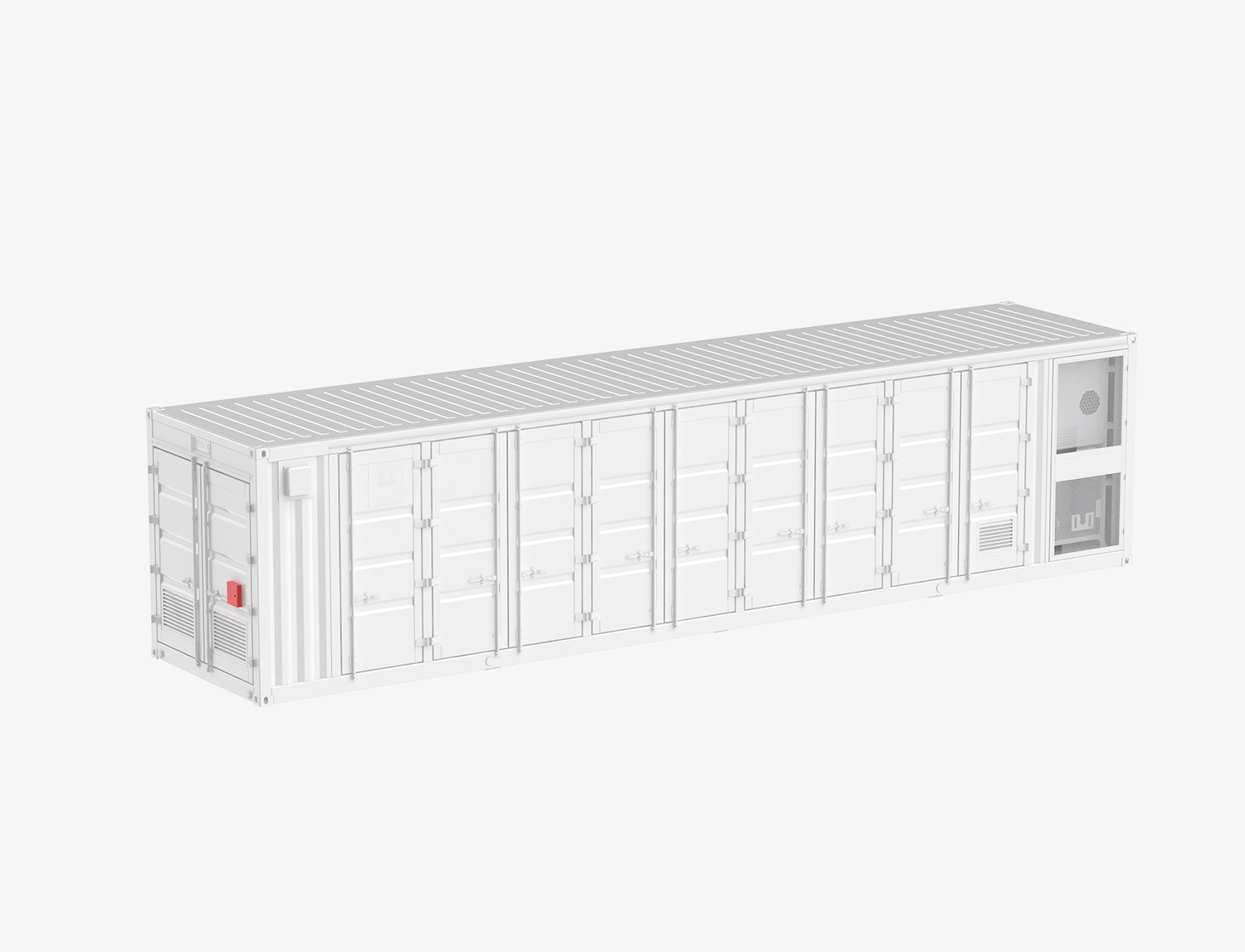

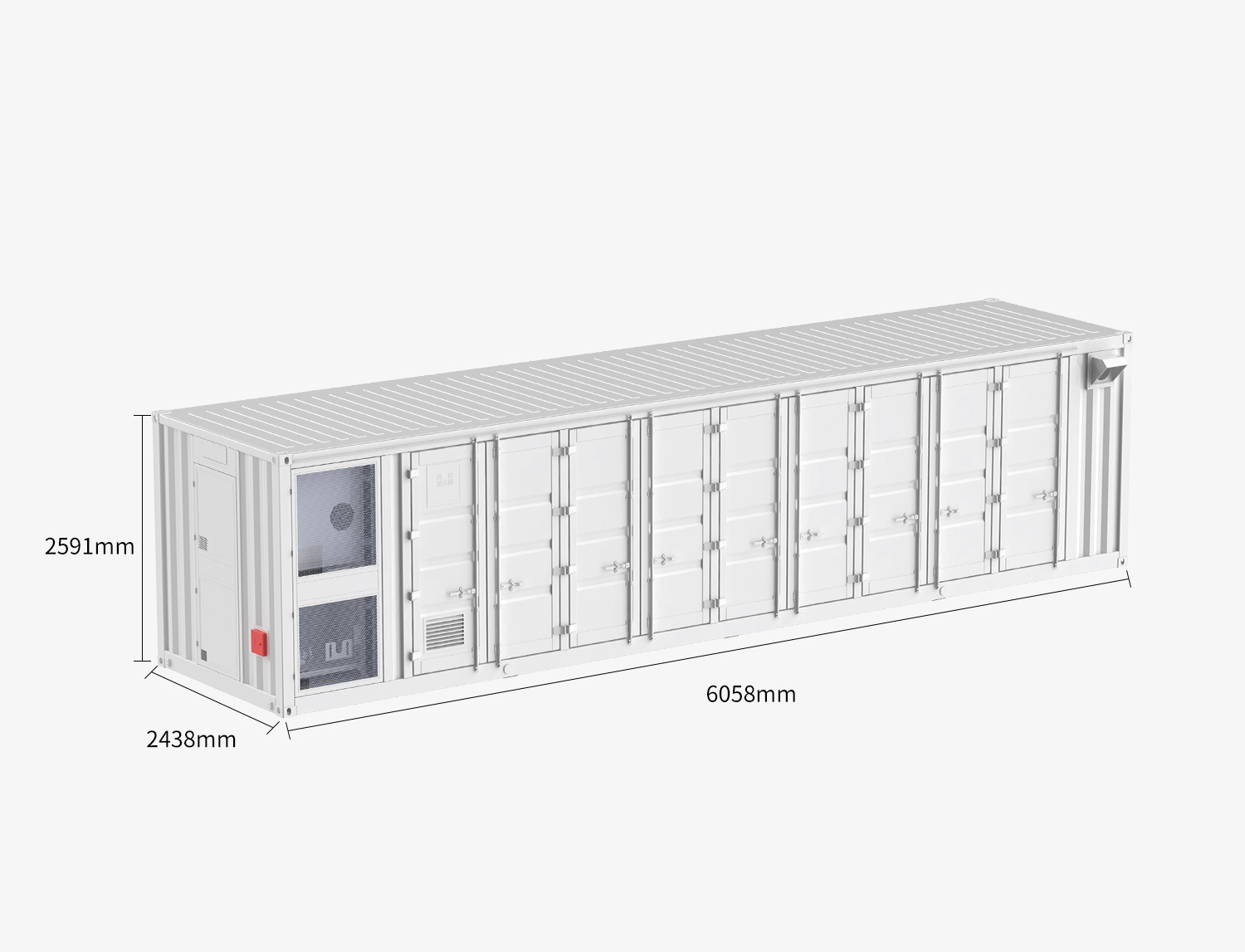

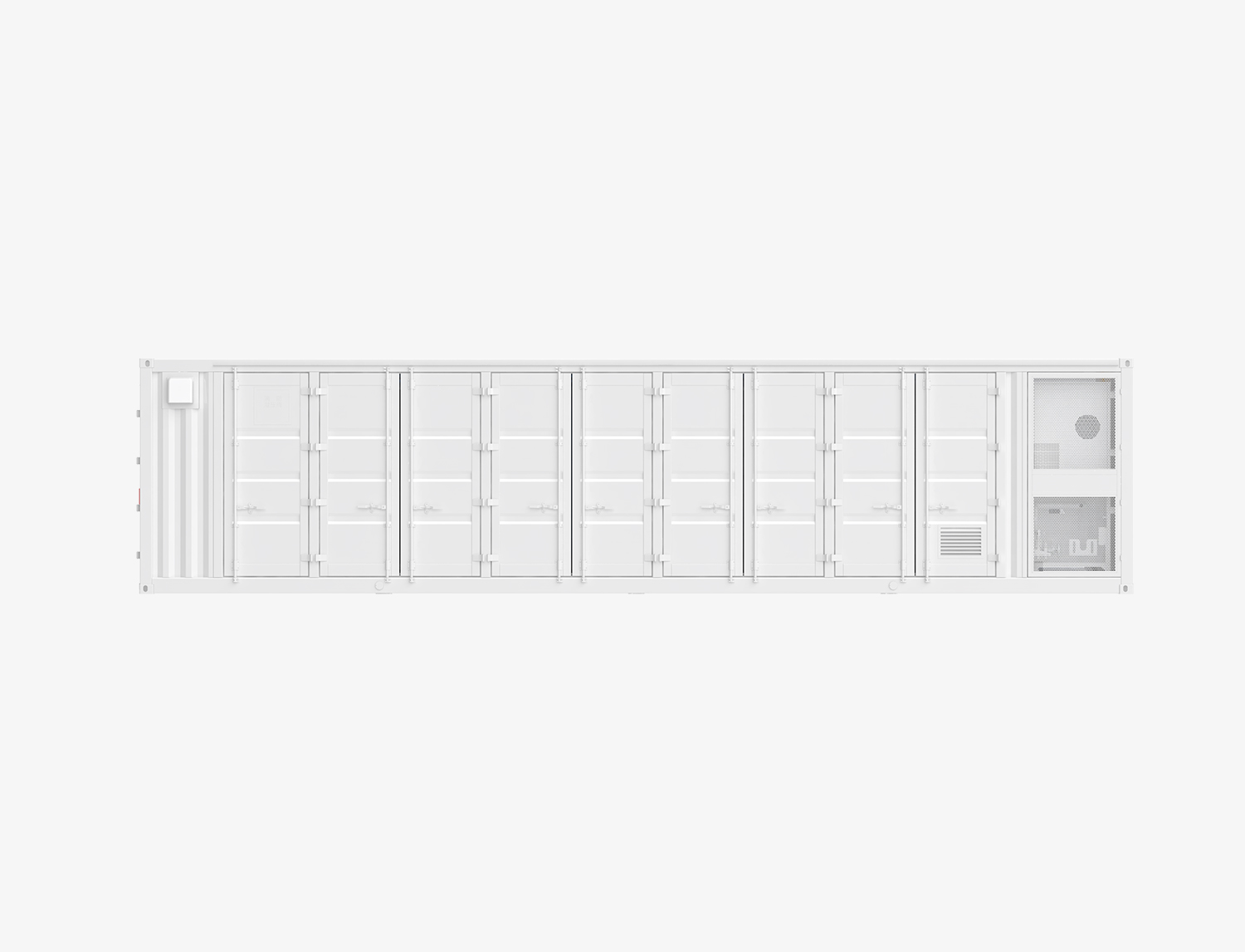

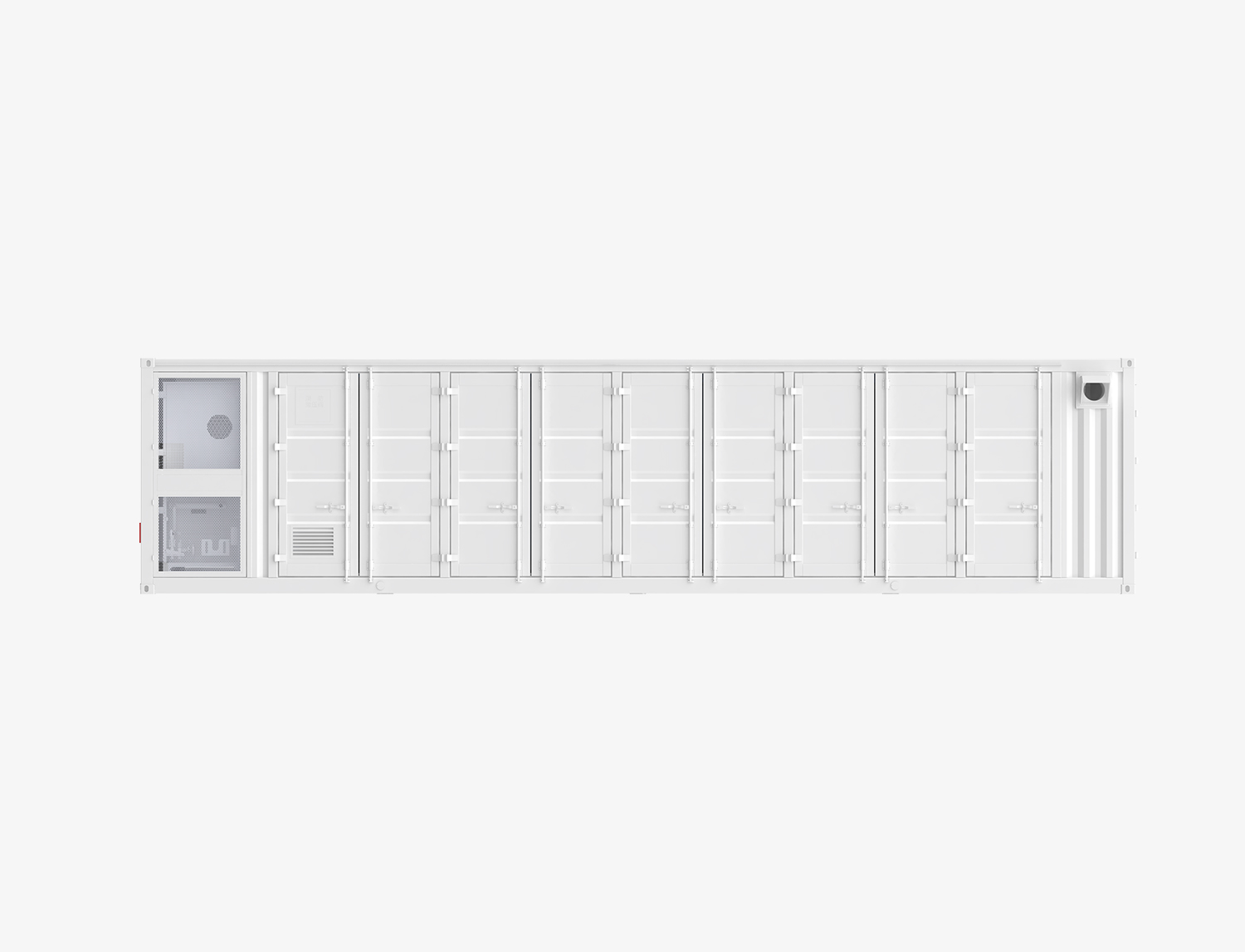

BESS container/Medium VoltageElectrical container
The 20/40ft container battery system is an energy storage device that meets the power output needs of megawatts and integrates energy storage battery system, battery management system, DC cabinet, temperature control system and fire protection system, and can be used with power conversion system for a variety of energy storage application scenarios.
Discuss BESS container/Medium VoltageElectrical container.
Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.
Documents for this product.
All product documentsTechnical specifications
Explore the details behind the system.
Type | TESS-1000-500 | TESS-1000-2000 | TESS-2000-1000 | TESS-2000-4000 |
Common parameters | ||||
Rated power | 1000kW | 1000kW | 2000kW | 2000kW |
| Rated energy | 500kWh | 2000kWh | 1000kWh | 4000kWh |
Rated powerchargingtime | ≈0.5h | ≈2h | ≈0.5h | ≈2h |
Rated power dischargingtime | >20min | >90min | >20min | >90min |
AC voltage level | 6~35kV | |||
Switching time | ≤10ms | |||
Grid-connection output | ||||
Maximum output power | 1100kVA | 1100kVA | 2200kVA | 2200kVA |
Allowablevoltage range | ±10%(configurable) | |||
Allowable frequency range | 50Hz/60Hz±5Hz(configurable) | |||
Power factor | 0.99 (ahead)-0.99 (delay) | |||
THDi | <3%(rated output power) | |||
Off-grid output | ||||
Carrying capacity of unbalanced load | 100% | |||
Voltagevariation range | <5%U | |||
Voltage DC component | <0.5%(linearly balanced load) | |||
THDu | <5%(linearly load) | |||
Battery parameters | ||||
Battery type | Lithium iron phosphate | |||
Charge-dischargeratio | 2C | 0.5C | 2C | 0.5C |
Charging temperature range | 0~55℃ | |||
Discharging temperature range | -20~55°℃ | |||
Fire protection design | Heptafluoropropane/perfluorostadioketone extinguishing medium | |||
Basic parameters | ||||
Protection level | IP54 | |||
Relative humidity | 0-95%(condensation free) | |||
Cooling type | Intelligentcooling/liquid cooling | |||
Highest altitude | 5000m(>4000mderated) | |||
Display | Touchscreen/Cloud platform | |||
Communication port | Ethernet,RS485,CAN2.0,cable (I0 | |||
