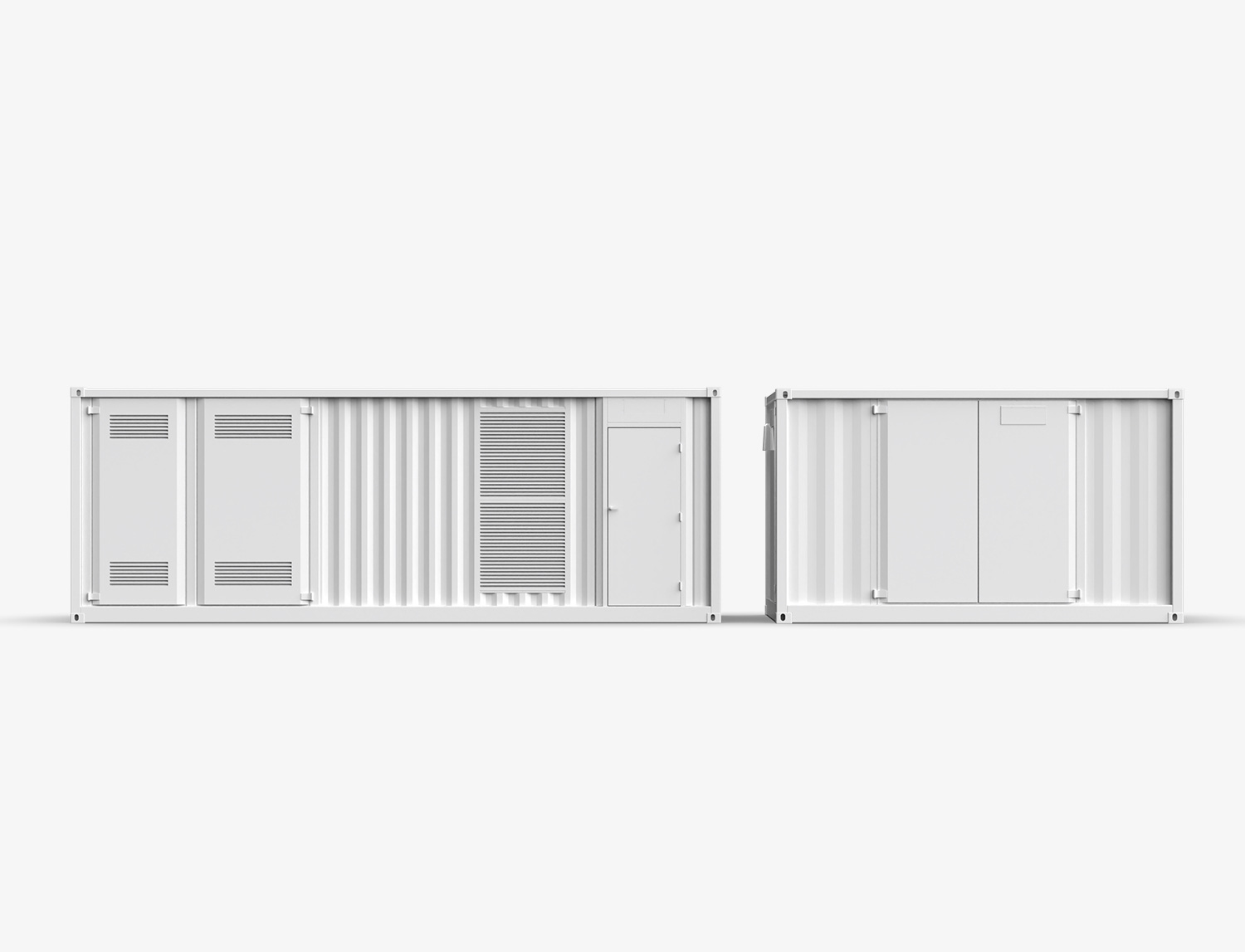

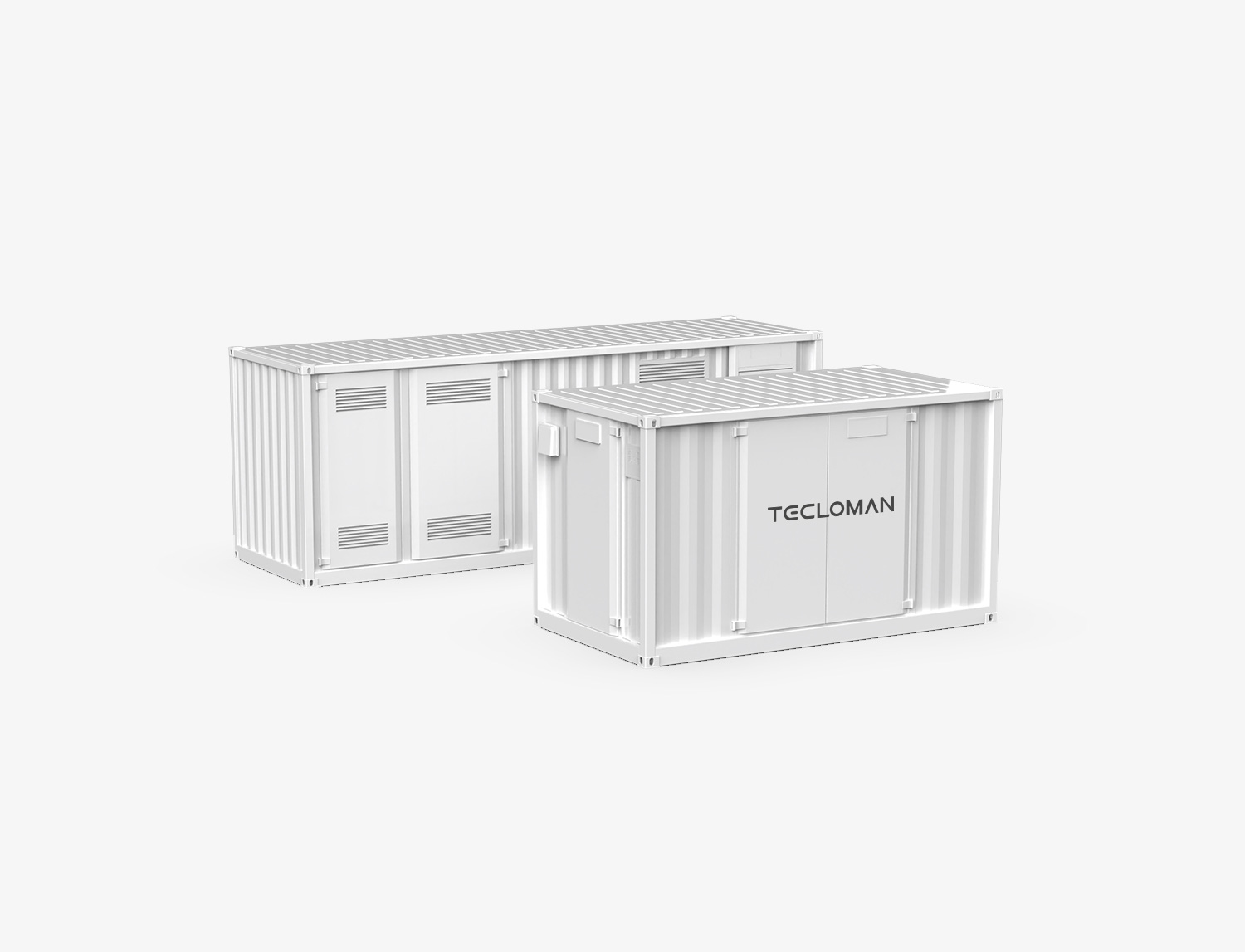

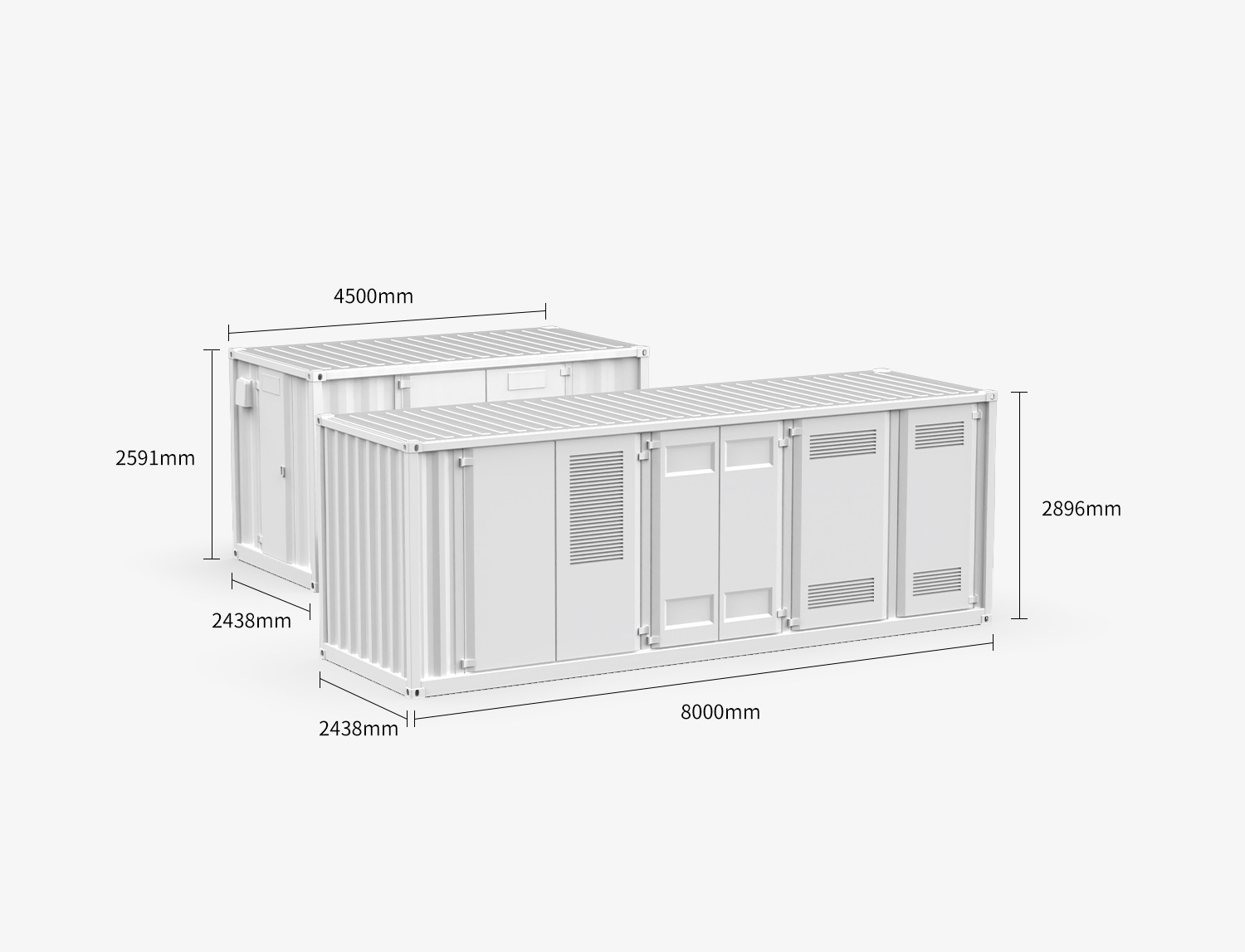

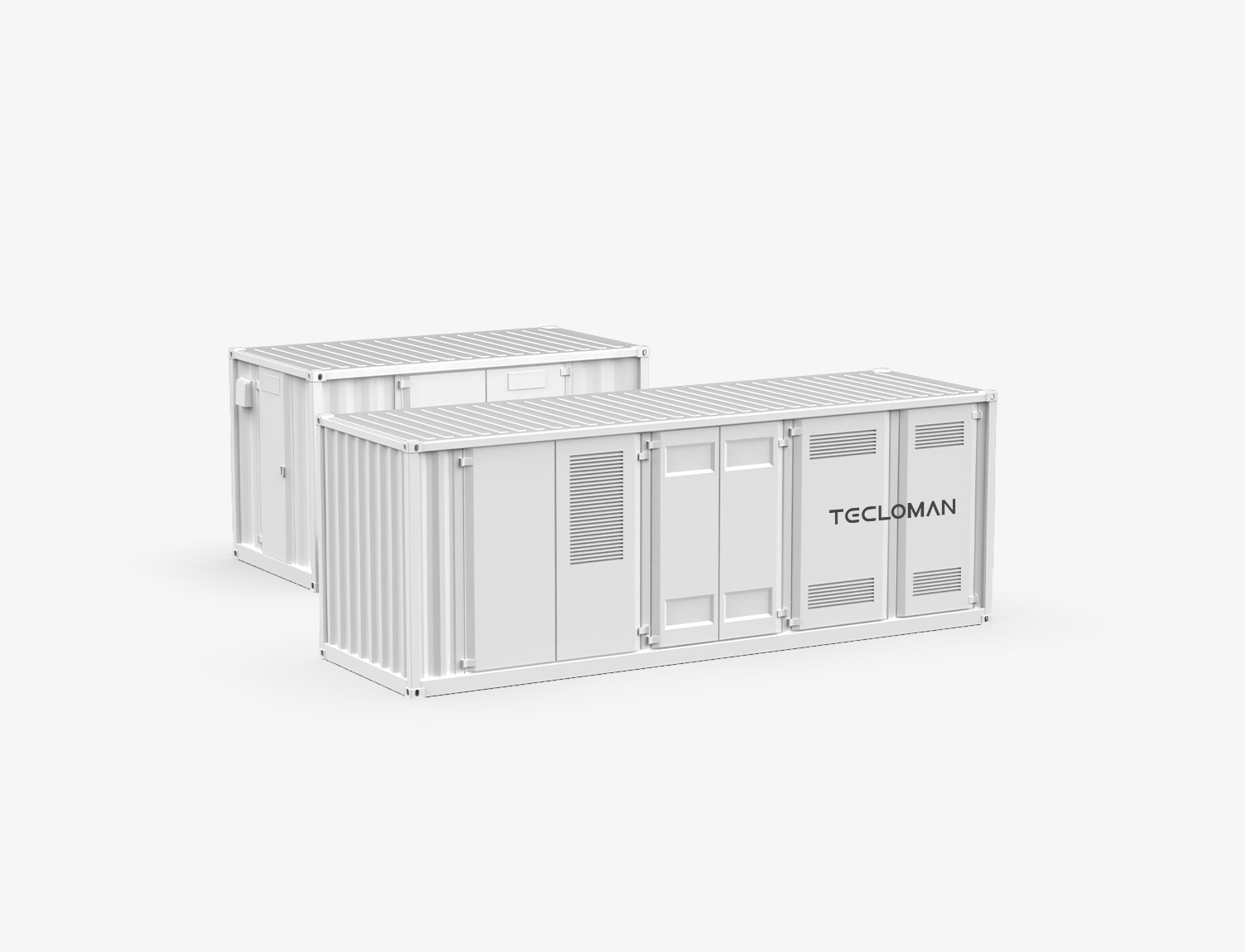

IDC Power Supply
The technological heart of IDC power supply lies in its ability to decouple common electricalloadcurrent quality issues from sporadic grid voltage quality issues.
Discuss IDC Power Supply.
Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.
Documents for this product.
All product documentsTechnical specifications
Explore the details behind the system.
Model | Tl DC-500/0.4 |
AC input | AC380V（-10%~+10%） |
Rated capacity | 500kVA |
Wiring mode | TN-S, three-phase five-wire |
Operation frequency | 50Hz±5Hz |
Power factor | >0.98 |
Harmonic distortion | THDi<3% |
Steady-state voltage error | <1%(three-phase balanced load) |
Output Frequency | 50±0.5Hz |
Phase voltage distortion THDv | <I %(linear load);<5%(nonlinear load, load current peak ratio CF> 3) |
Peak factor | CF≥3：1 |
Three phase difference | 120 ± 1 ° (balanced or unbalanced load) |
100%Unbalance of Unbalanced Load Voltage | <1% |
No-load voltage stabilization accuracy | ±2% |
Overload capability | 1.05~ 1.1 times the rated load, lmin to bypass; higher than 1.5 times the rated load, switch to bypass immediately. |
Number of parallel machines | Max. 5 parallel |
Efficiency | ≥ 98%(load rate ≤ 30%), ≥ 99%(load rate> 50%) |
DC voltage range | 230V-780V |
Other parameters | |
Operating Temperature | -5°C~+40°C |
Storage and transportation temperature | -25°C~+55°C |
Relative humidity | ≤90%RH, non-condensing |
Highest Altitude | 4000 m (over 2000 m, it will operate in derating) |
Noise | <65dB |
Display mode | LCD + Indicator |
Communication Interface | RS485/Modbus/Electrical Master Protocol |
Protection Grade | IP20 |
