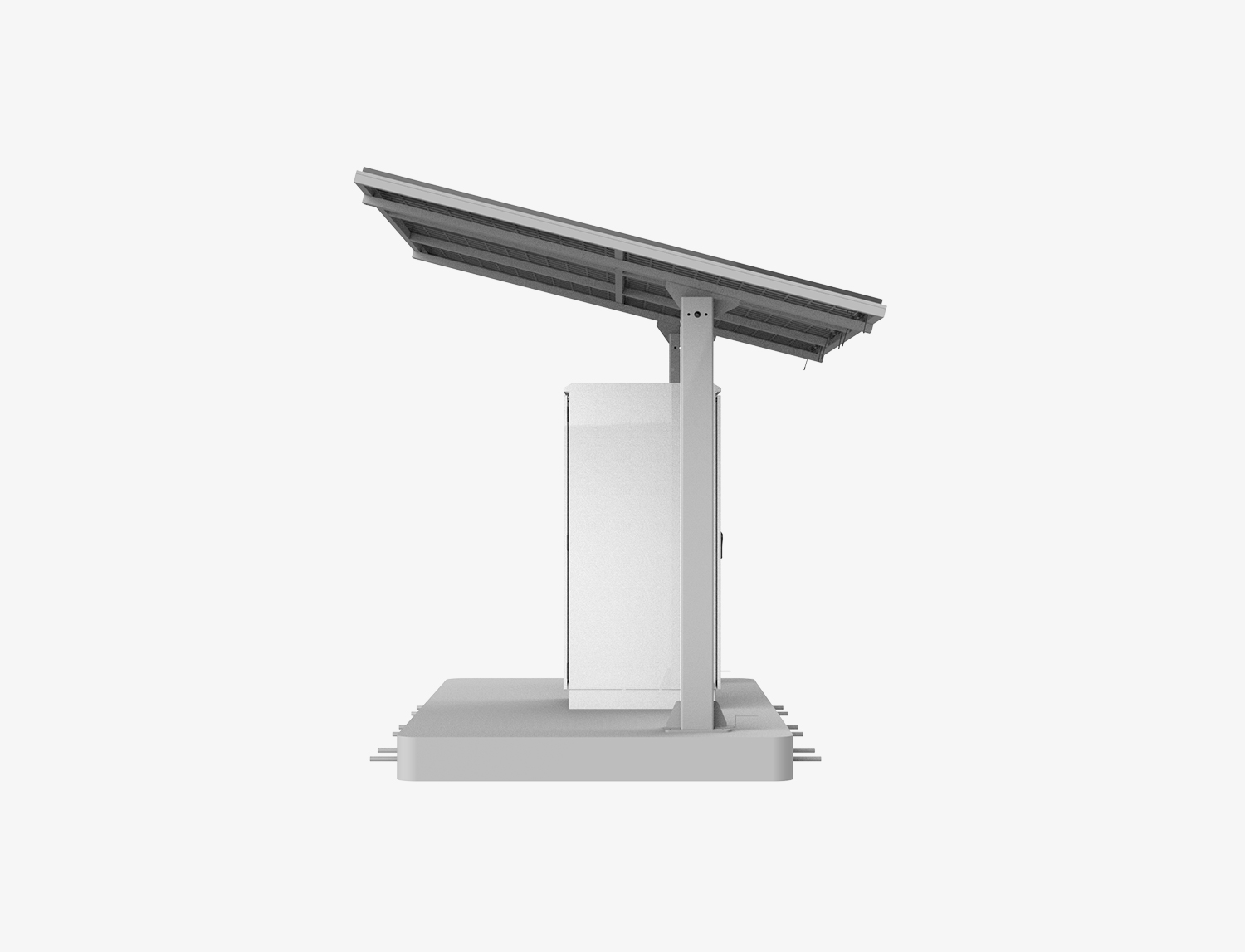

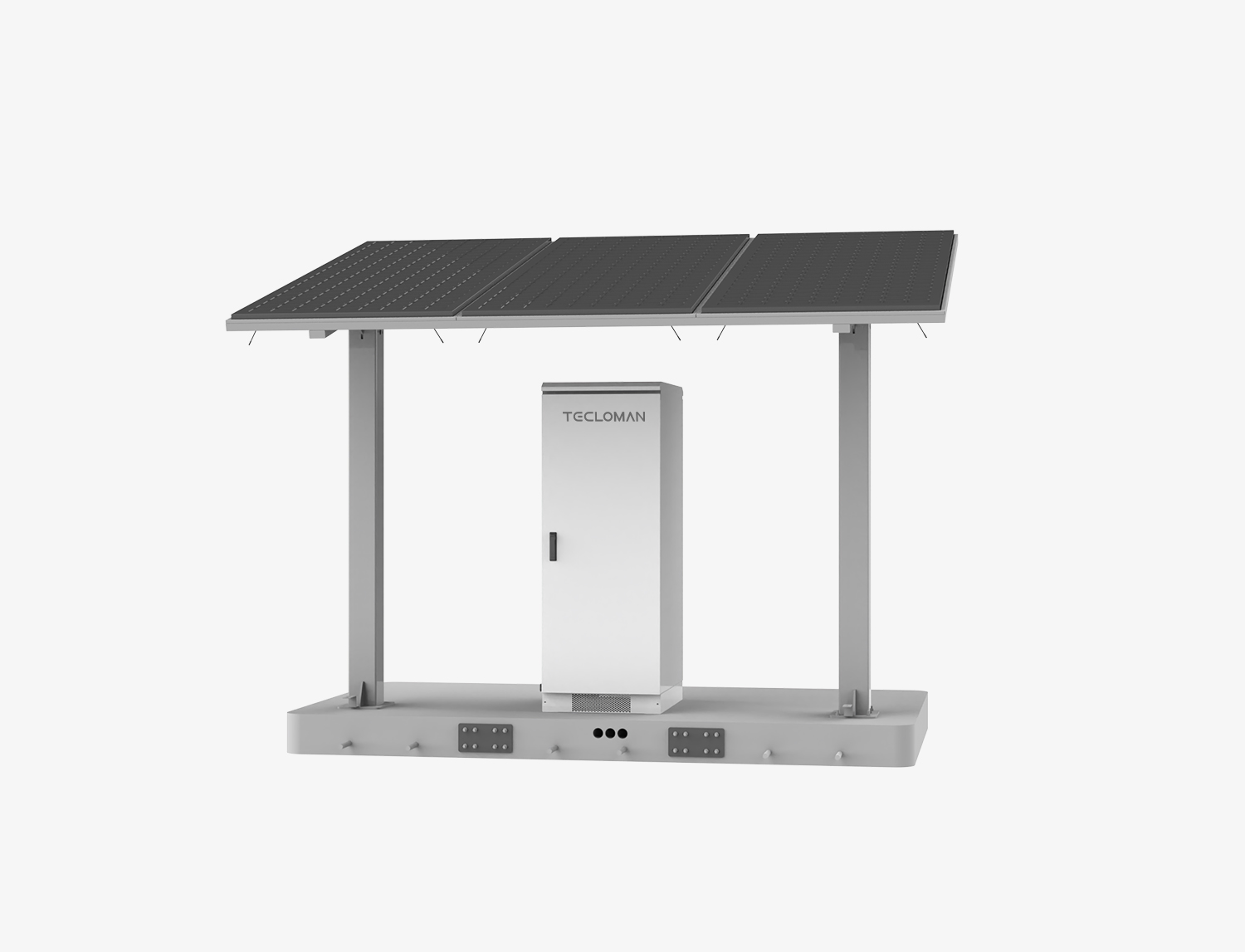

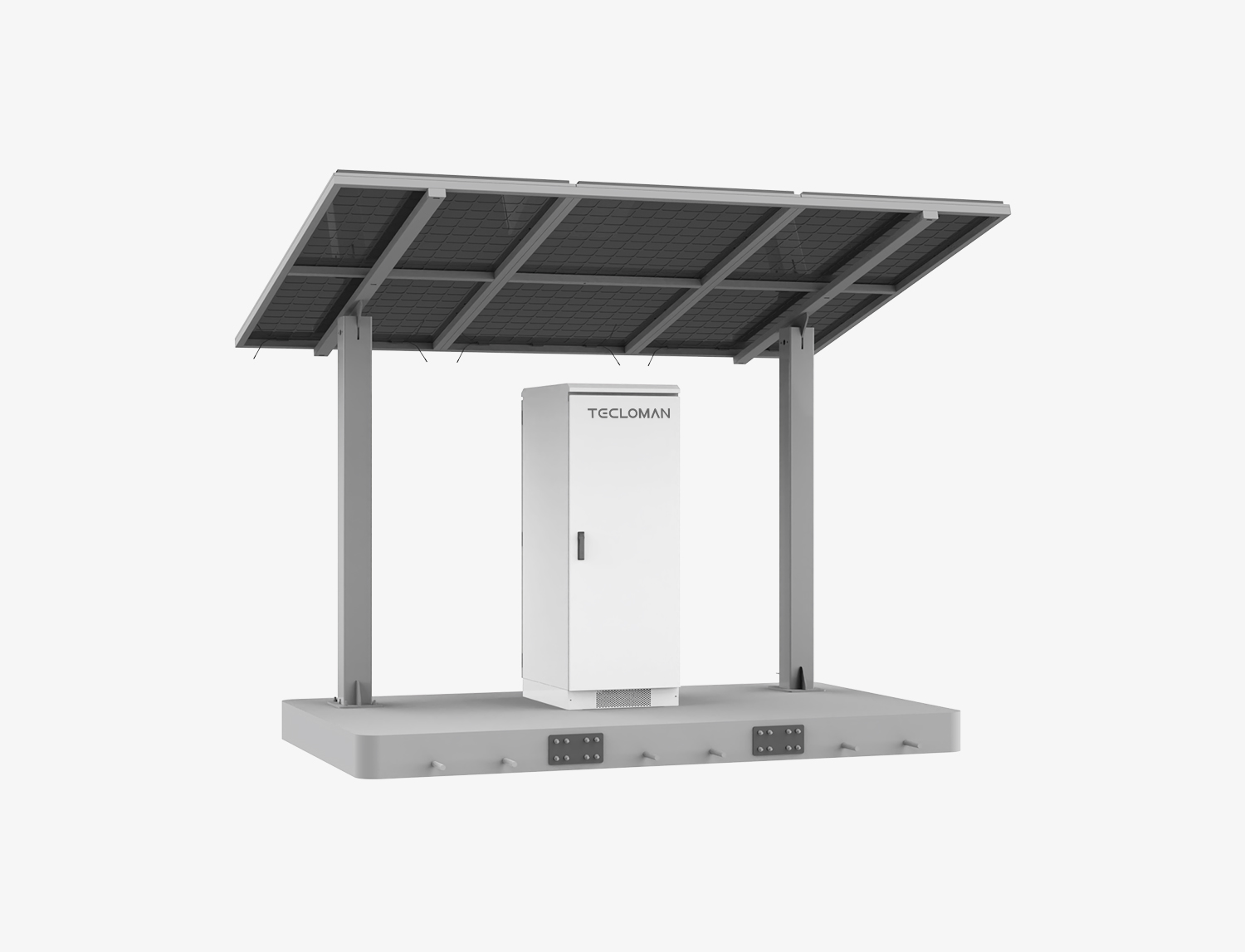

Intelligent PV+Battery Energy Storage System
This system, designed for the multi-source power supply guarantee of information communication equipment in the long-distance transportation valve chamber such as natural gas & oil, is composed of light storage system cabinet, photovoltaic module, photovoltaic column and bracket, of which the light storage system cabinet includes lithium iron phosphate energy storage battery module, battery/system management unit, solar controller, lithium iron phosphate battery charger, power distribution appliances and other modules. The system cabinet is outdoor IP65 protection level.
Discuss Intelligent PV+Battery Energy Storage System.
Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.
Documents for this product.
All product documentsTechnical specifications
Explore the details behind the system.
Model | Zdb-5.76kWh | Zdb-11.52kWh | Zdb-17.28kWh | |
Battery cell | 3P8S / 5.76 kWh / 55 kg / LiFeP04 / aerosol fire protection | |||
Battery module | 1 | 2 | 3 | |
Nominal capacity | 5.76 kWh | 11.52 kWh | 17.28 kWh | |
Rated voltage | 25.6 Vdc | |||
Operating voltage range | 22.4 Vdc~ 28.4 Vdc | |||
BMS protection | Short circuit, overcurrent, over-/under- voltage, serious high and low temperature etc. | |||
System | Current of MPPT charging the battery | Maximum 60 A | ||
Current of MPPT battery charger charging the battery | Maximum 50 A | |||
External load interface | 24 Vdc (22.4 Vdc ~ 28.4 Vdc); Maximum public power 350 W & maximum optical storage 1440 W | |||
Max PV input voltage | 49.6 Vdc | |||
PV module | Monocrystalline silicon; 540 W*3; Parallel | |||
Public power access voltage | 110 V / 220 Vac | |||
External communication | CAN/RS485 / 4G | |||

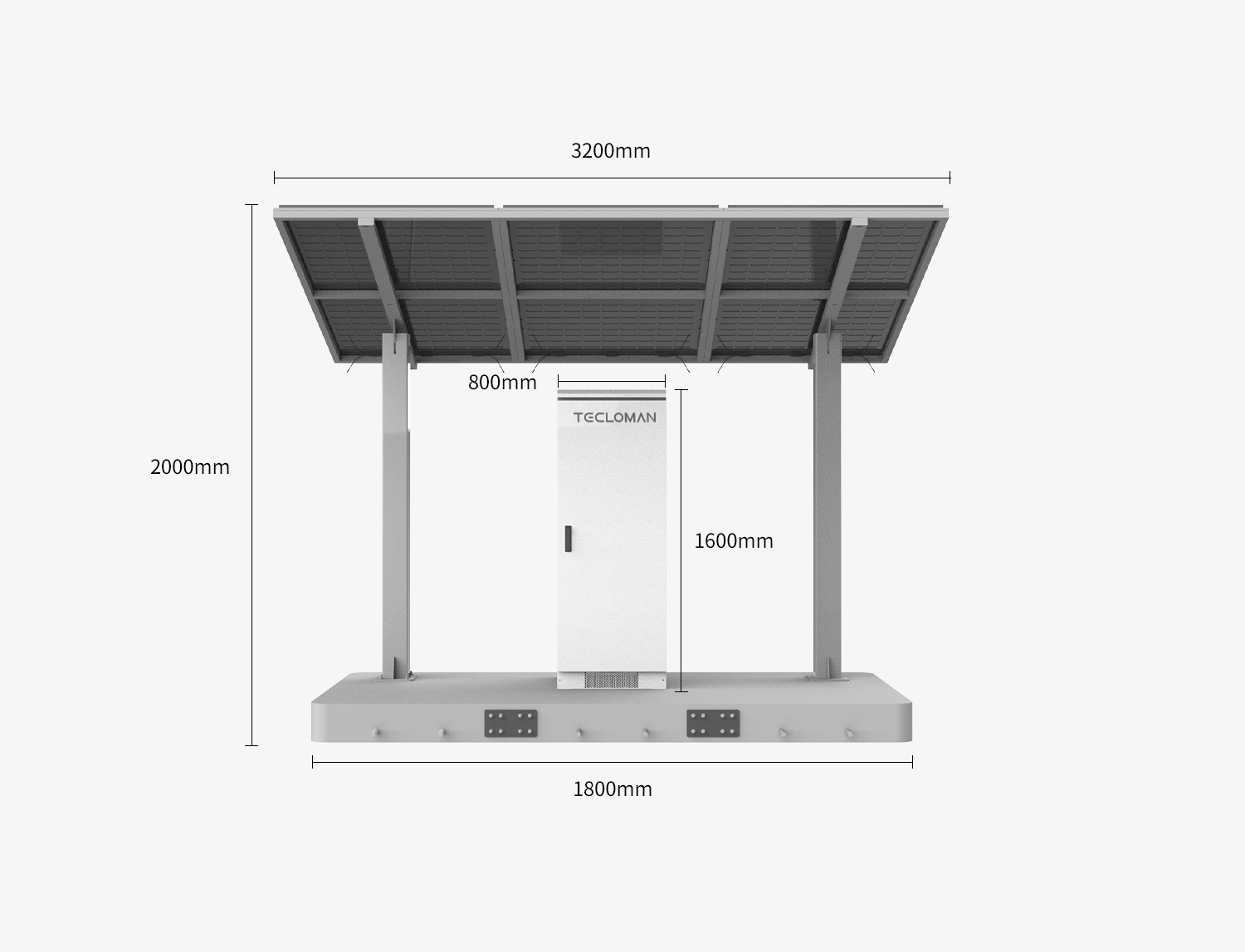

Pv post (H×T) | 2000 mm×80 mm; Rectangular tube welding, powder painting | |||
PV support bracket (W×D) | 3200 mm × 1800 mm; Square tube welding, powder painting | |||
System cabinet (W×D×H) | 600 mm × 800 mm × 1600 mm; Metal plate powder painting | |||
Operating temperature | -10°C~55°C | |||
Operating humidity | 5-90%RH | |||
Level of protection | IP65 | |||
Cooling type | Battery, MPPT natural heat dissipation Charger intelligent air cooling | |||
