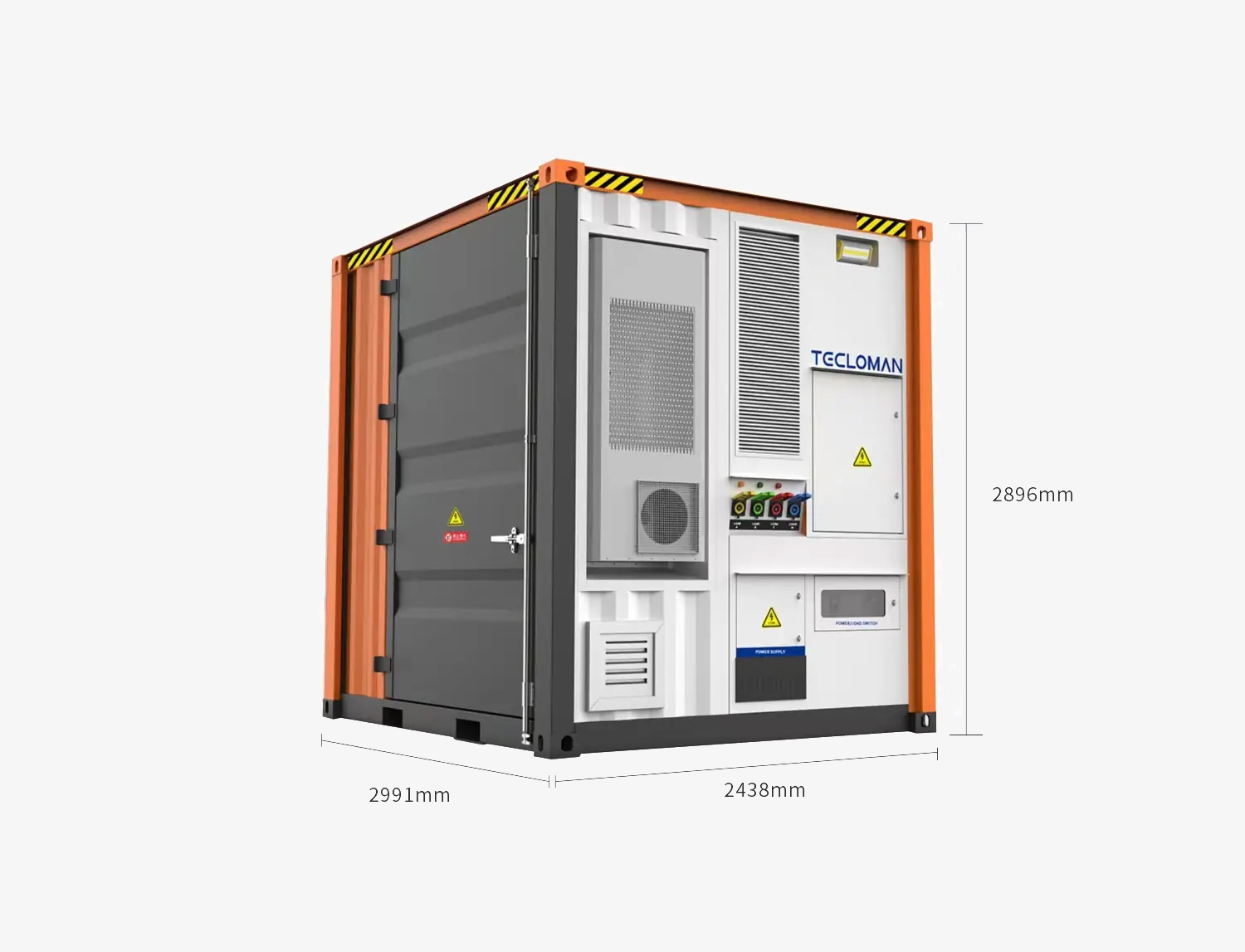

Power Cubox
The Power Cubox is a new Tecloman’s generation of mobile energy storage power supply that helps operators significantly reduce fuel consumption and CO₂ emissions while providing excellent performance, low noise, and low maintenance costs. Power Cubox uses high-density lithium-ion batteries and high-efficiency inverter systems to achieve outstanding energy storage and distribution goals.
Compared with traditional products, Power Cubox has a more compact structure, lower weight, and standard container size design for easy transportation. They are ideal for noise-sensitive environments such as construction site telecommunications at events or in large cities, or rental applications, or working with generators to solve low load problems.
Discuss Power Cubox.
Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.
Documents for this product.
All product documentsTechnical specifications
Explore the details behind the system.
Model | TVSS-20-71 | TVSS-60-129 | TVSS-300-602 | TVSS-300-645 | TVSS-630-1204 | TVSS-630-1290 |
Rated capacity | 71kWh | 129kWh | 602kWh | 645kWh | 1204 kWh | 1290 kWh |
Battery cell | LFP 3.2V 280Ah | |||||
Rated power | 20kVA | 60kVA | 300kVA | 300kVA | 630kVA | 630kVA |
AC mode | 3W+N+PE | |||||
Input voltage | 340 ~ 440V | |||||
Allowable input frequency | 50/60Hz±5HZ | |||||
Rated input current | 29A | 90A | 432A | 432A | 909A | 909A |
Power factor | ±0.99 | |||||
Overload capacity | 110% for long-term; 120% for 1min | |||||
On/off-grid switching | Possess | |||||
Rated output voltage | 400V | |||||
Rated output frequency | 50/60Hz | |||||
Output voltage deviation | ≤2% | |||||
Output voltage unbalance | ≤1% | |||||
Harmonic（THD） | ≤3%（Pure resistive load） | |||||
Cooling | Intelligent Air Conditioner | |||||
Communication interface | RS485 / CAN / Ethernet | |||||
HMI | Touch screen | |||||
Remote data monitoring | Equipped | |||||
Cloud platform access | Equipped | |||||
Operating temperature | -20℃ ~ 50℃（Capacity reduction above 45℃ ) | |||||
Operating humidity | ≤95% Without condensing | |||||
Altitude | ≤4000m，＞2000m derated | |||||
Weight | ≤850kg | ≤15000kg | ≤11000kg | ≤20000kg | ||
Dimensions(W×D×H) | 1000×1670×1100mm | 1100×2300×1730mm | 2991×2438×2896mm | 6058×2438×2896mm | ||
Fire suppression system | Aerosol fire extinguishing system | |||||
