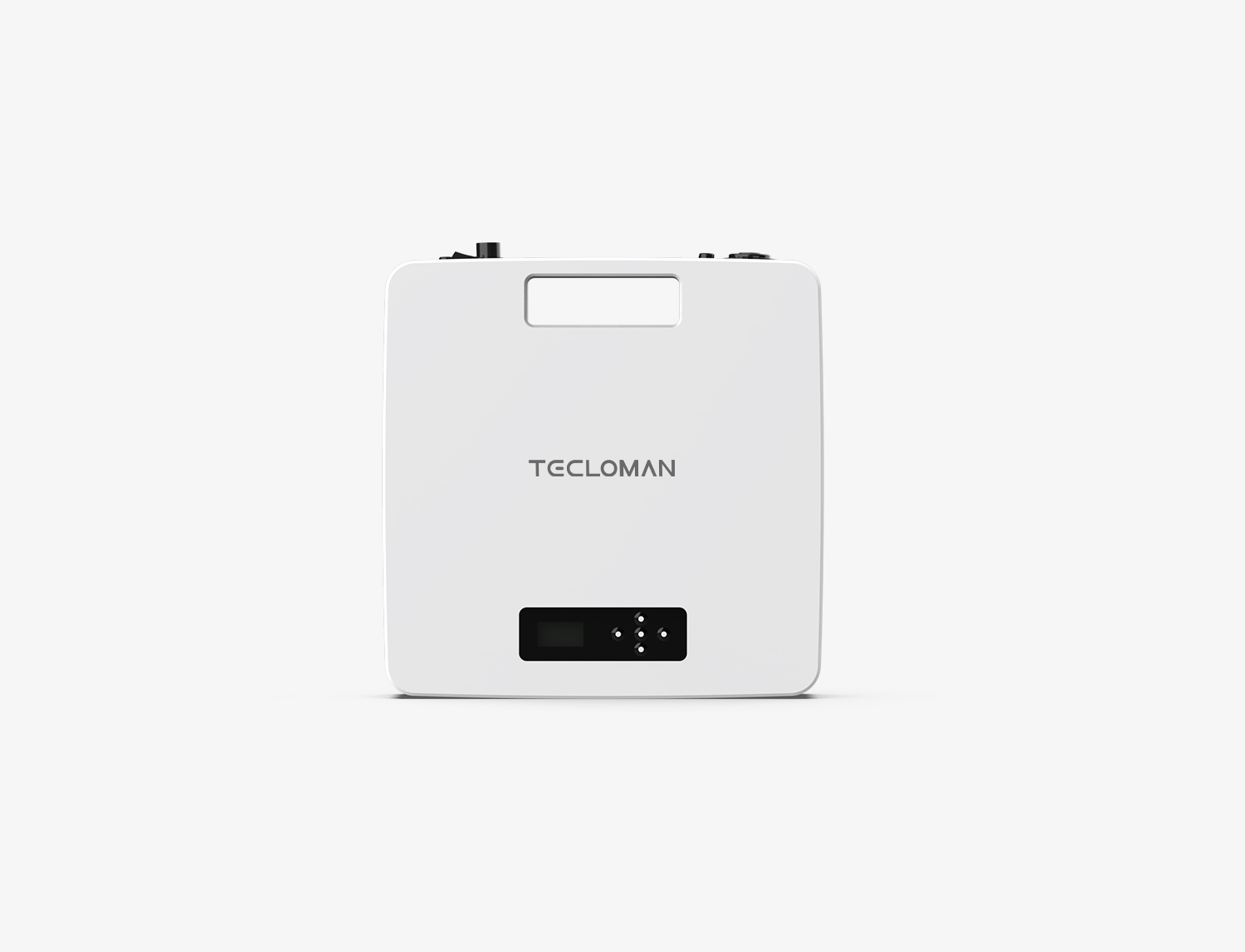

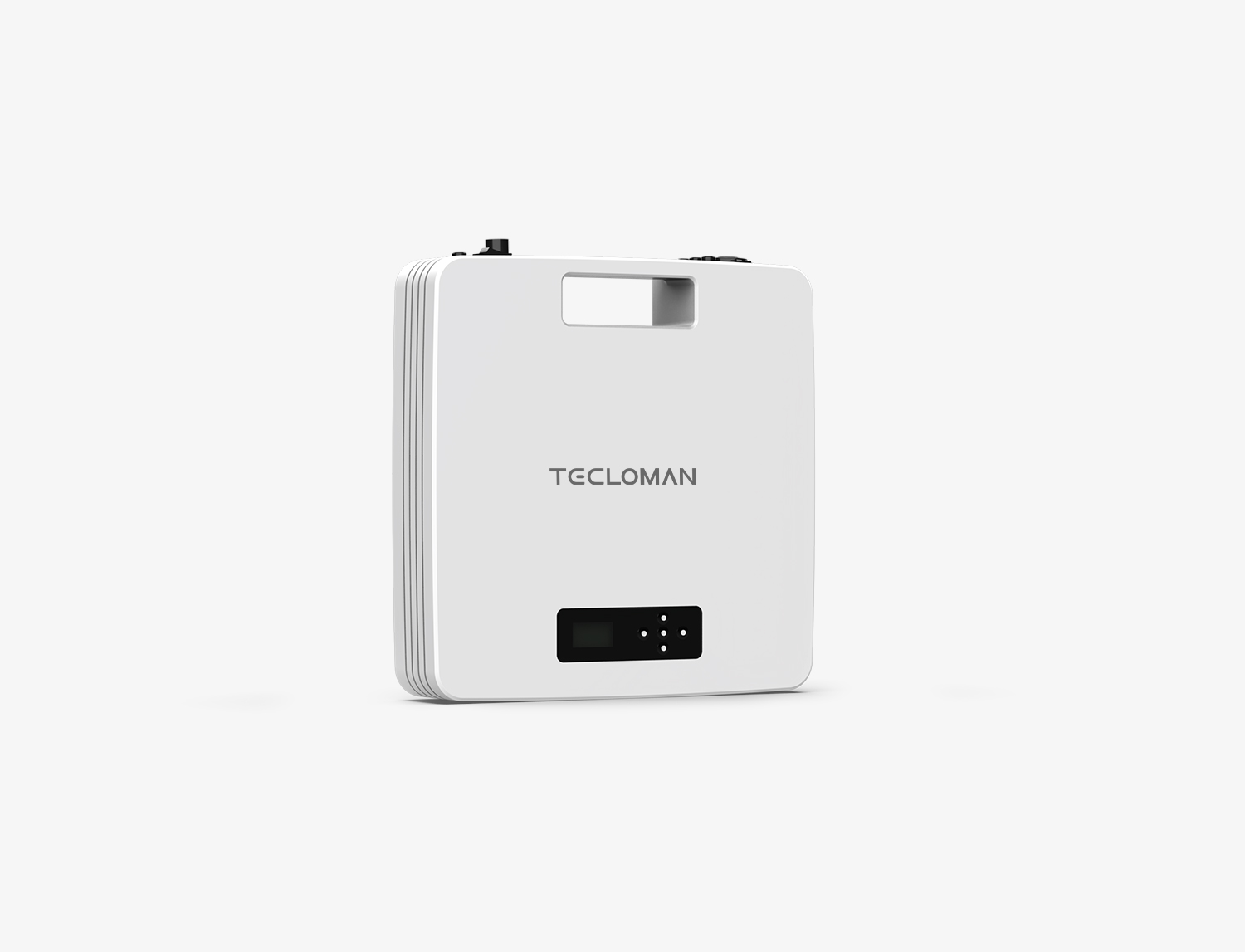

SolGlow
SolGlow is a device that provides lighting services and DC power to residents in areas without electricity or with unstable power grids. It is easy to use, maintenance-free, portable, on-demand and widely available, and its capacity and mode of operation can be adjusted according to users’ needs.
Discuss SolGlow.
Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.
Documents for this product.
All product documentsTechnical specifications
Explore the details behind the system.
Model | SolGlow-Ml | SolGlow -M2 | SolGlow-M3 |
PV panel | 50W, 18V | 100W, 18V | 150W, 18V |
Battery Capacity | 138 Wh | 276 Wh | 414 Wh |
Battery voltage | 9 ~14.6V | ||
Battery type | Lithium iron phosphate battery, 2000 cycles of capacity remaining > 80% | ||
Controller | 12V/15A with MPPT function, 32-bit microprocessor | ||
Charger | 2A | 6A | 6A |
LED lamp | 3W*2 | 3W*1 + 5W*1 | 5W*2 |
Lamp cable | 8m line, adjustable optical | ||
USB | 2-way 5V 2A | 2-way QC5.0, 24W at most | |
Fan | 12V/12W floor-mounted 16-inch brushless DC fan, which is adjustable in three gears and can swing the head | ||
Inverter | None | External 220V/50HZ/150W, corrected sine wave | |
Protection function | Overcharge and overdischarge protection, overload protection, short circuit protection, reverse current protection, reverse connection protection | ||
Status display | LCD screen, displaying battery power, remaining time, working status, fault information, etc. | ||
Operating temperature | Charge under 0°C - 55°C, and discharge under -20 °C - 60 °C | ||
Storage temperature | -20 °C - 55 °C | ||
Humidity | ≤80% RH | ||
Altitude | ≤3,000m | ||
Level of protection | IP34 | ||
Installation method | Desktop or wall mounted | ||
Certification & safety standards | CE | ||
