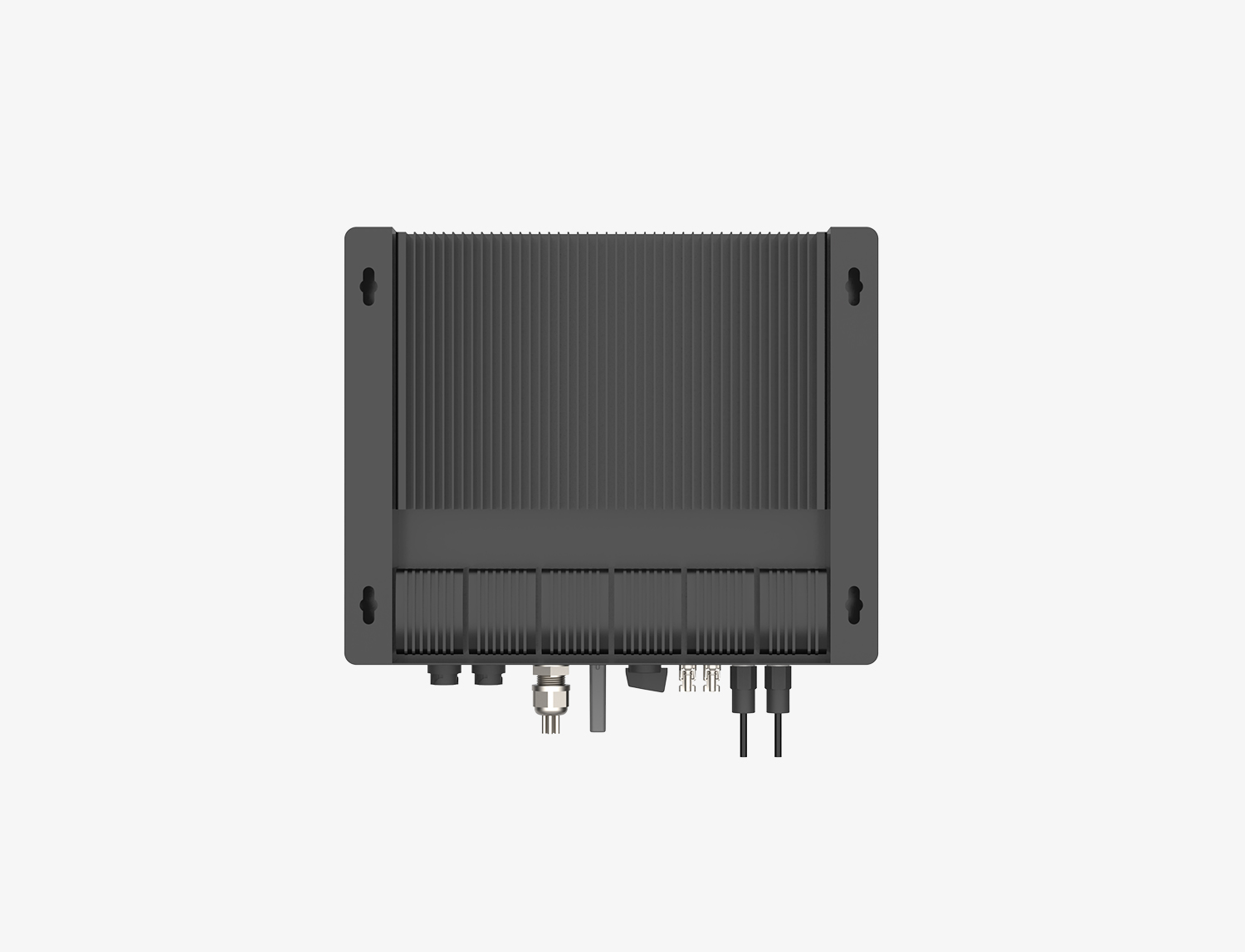

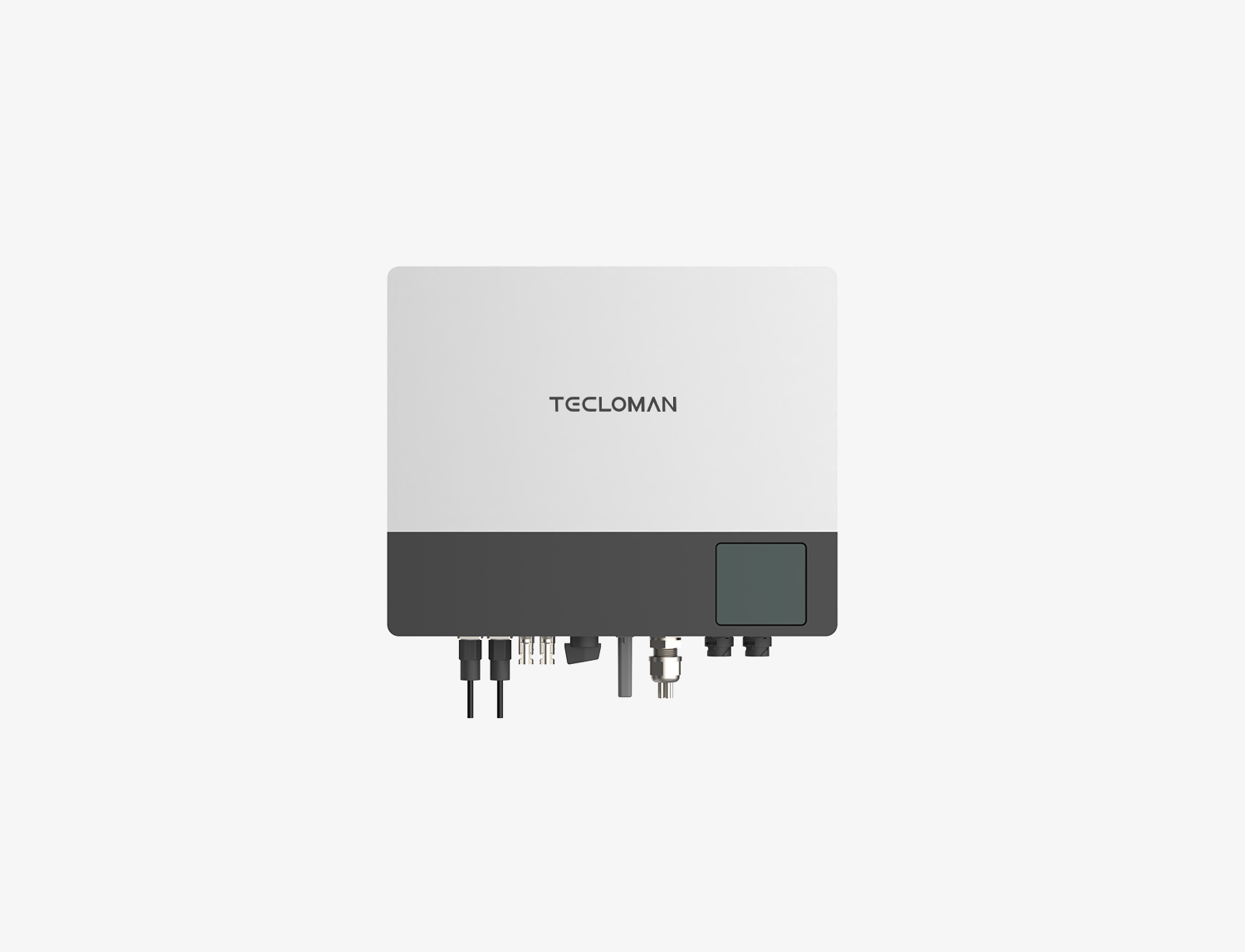

Firefly Residential Hybrid Inverter
This product is a new-type converter equipped with intelligent energy management system, which integrates charging controller, two-way power conversion system and PV inverter; together with Firefly home distributed battery system and PV module, it can build a comprehensive household solar energy storage system, thus effectively improving PV utilization rate, reducing electricity cost and improving electricity quality.
Discuss Firefly Residential Hybrid Inverter.
Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.
Documents for this product.
All product documentsTechnical specifications
Explore the details behind the system.
Model | Hybrid-3k | Hybrid-4.6k/5k | |
Alternating current (on-grid) | Maximum output apparent power | 3000VA | 4600VA/5000VA |
Rated output power | 3000W | 4600W/5000W | |
Maximum output current | 15A | 25A | |
Rated grid voltage (range) | 230V (180~270V) | ||
Rated grid frequency (range) | 50/60Hz (45-55/55-65Hz) | ||
Power factor | Adjustable, -0.8 lead to 0.8 lag | ||
Harmonic distortion rate of the total current | <3% | ||
AC mode | L/N/PE | ||
Alternating current (off-grid) | EPS maximum output apparent power | 3600VA/5000VA (without PV/with PV) | |
EPS rated output power (without PV) | 3000W | ||
EPS rated output current (without PV) | 13A | ||
EPS rated output voltage | 230V | ||
EPS rated output frequency | 50/60HZ | ||
Peak overload power | 4500W, 30S | ||
Harmonic distortion rate of the total voltage | <5% | ||
Switching time of on-grid and off-grid | ≤10ms | ||
Direct Current (PV and battery) | Maximum PV input power | 6600W | 8000W |
Max PV voltage | 550V | ||
PV MPPT voltage range | 120-500V | ||
Number of MPPTs | 2 | ||
Maximum PV input current | 10A | 11A | |
Compatible battery type | Lithium iron phosphate cell/lead-acid cell | ||
Rated battery voltage (range) | 48V(40~60V) | ||
Maximum charge/discharge power | 3600W/3600W | ||
Maximum charge/discharge current | 66A/66A | ||
BMS communication mode | CAN, RS485 | ||
Efficiency | Maximum efficiency | 97.90% | |
Battery charging / discharging efficiency | 94.50% | ||
Basic information | Protection | Direct current reverse protection, ground fault protection, short circuit protection, overload protection, etc. | |

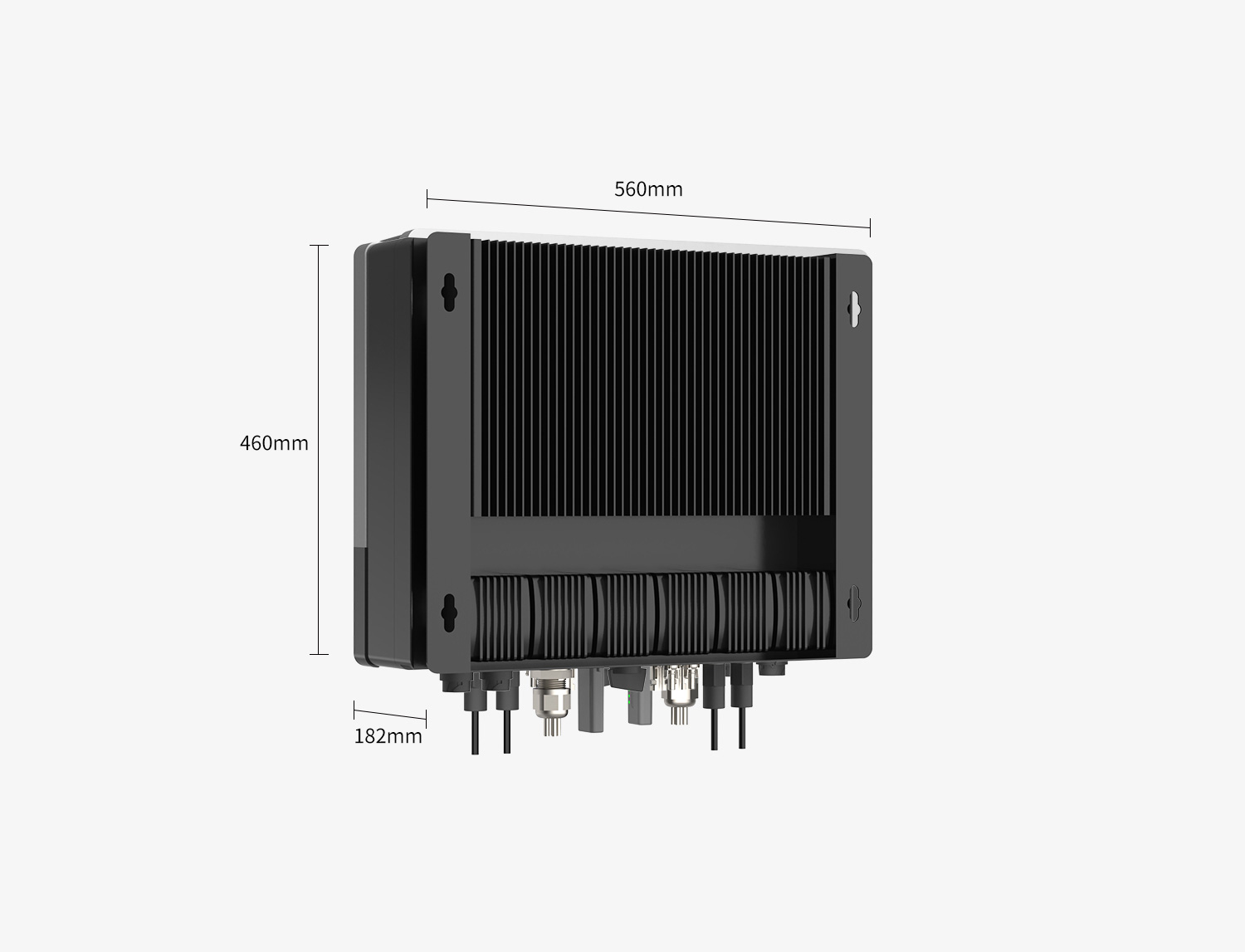

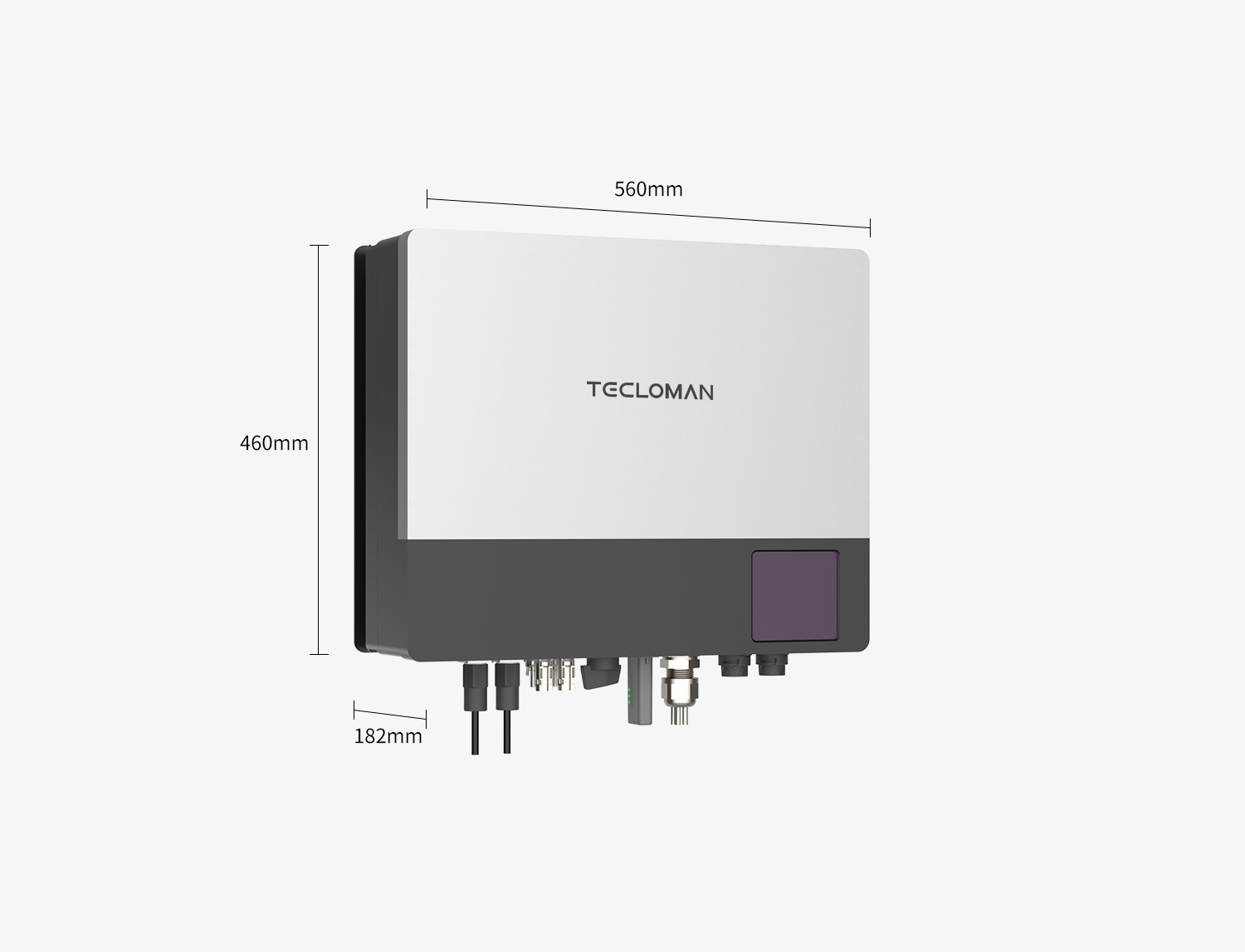

Dimension (W*H*D±2mm) | 451mmX469(551)mmX184 mm | ||
Weight | 20kg | ||
Topography | Without transformer, high frequency isolated (battery) | ||
Cooling mode | Natural heat dissipation | ||
Operating ambient temperature/relative humidity | -25~60°C/0~100%RH | ||
Elevation | <2000m | ||
Noise | <25dB | ||
Display and communication interface | LCD, LED, RS485, Wi-Fi, CAN | ||
Protection grade | IP65/NEM4X | ||
On-grid standard | EN50549-1, G98, G83, G59, AS4777.2:2015, VDE0126-1-1, VDE-AR-N4105, CEI 0-21, UTEC15-T12-l:2013-07 | ||
Safety regulation/EMC standard | IEC62109-1/-2, IEC62040-1, EN61000-6-1, EN61000-6-2, EN61000-6-3 | ||
