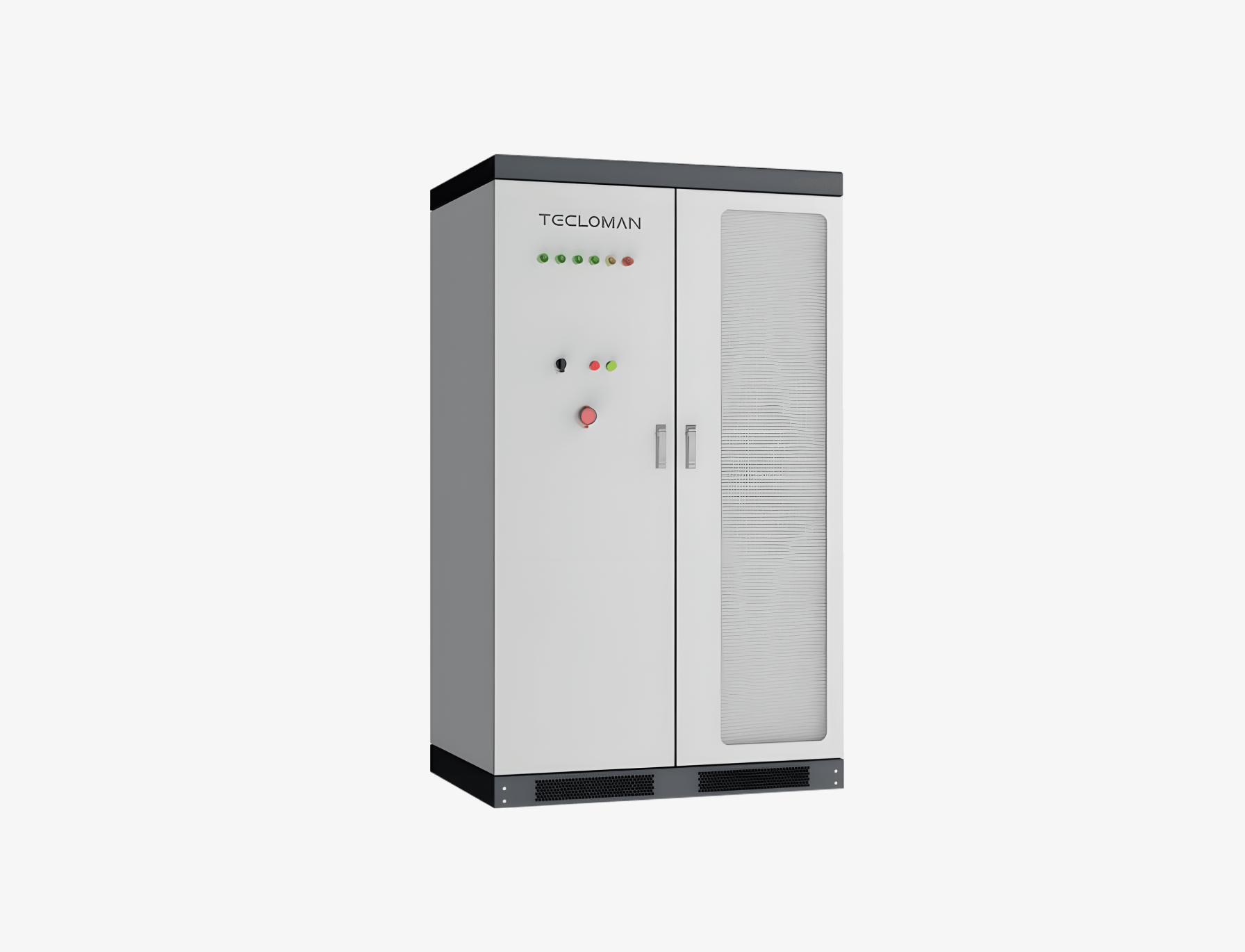

1250kVA STS Switch Cabinet

Categories：

Other

Tag：

other

YOUR PROJECT. A CLEARER NEXT STEP.

Discuss 1250kVA STS Switch Cabinet.

Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.

ENGINEERED FOR PERFORMANCE

Explore the details behind the system.

Model	TSTS-1250
Input parameters
AC voltage range	320V~440V
AC frequency range	50/60±5Hz
AC system	3W+PE/3W+N+PE
Performance parameters
Grid-side rated capacity	1250kVA
Rated currenton grid side	1819A
Rated capacity ofoiler side	-
Rated current of oiler side	-
Rated capacityof loadside	630kVA
Load side rated current	909A
Energystorageside rated capacity	630kVA
Rated current ofenergy storage side	909A
Overload capability	110%overload (long-term),120%overload (1min)
Maximum efficiency ofthe grid with load	>99%
Passive off-grid switching time	<10ms
System Parameters
Operating Temperature	-25℃~55℃(more than 45℃,it will operate in de derating)
Storage Temperature	35℃~65℃
Allowable humidity	≤95%RH,non-condensing
Noise	<65dB
Cooling methoo	Forced air cooling
Protection Grade	IP20
Dimensions (WXHXD)	1200mm×2050mm×850mm
Weight	≤1100kg
Highest Altitude	4000m(more than 2000m reduction)
