Firefly Residential Energy Storage System
1. Excellent lithium iron phosphate battery cathode
2. Modular stacking and cable-free design
3. Self-developed hierarchical intelligent BMS
4. Easy installation and flexible expansion
5. Accessible to our independent cloud platform6. Compatible with mainstream inverter manufacturer
Discuss Firefly Residential Energy Storage System.
Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.
Documents for this product.
All product documentsTechnical specifications
Explore the details behind the system.

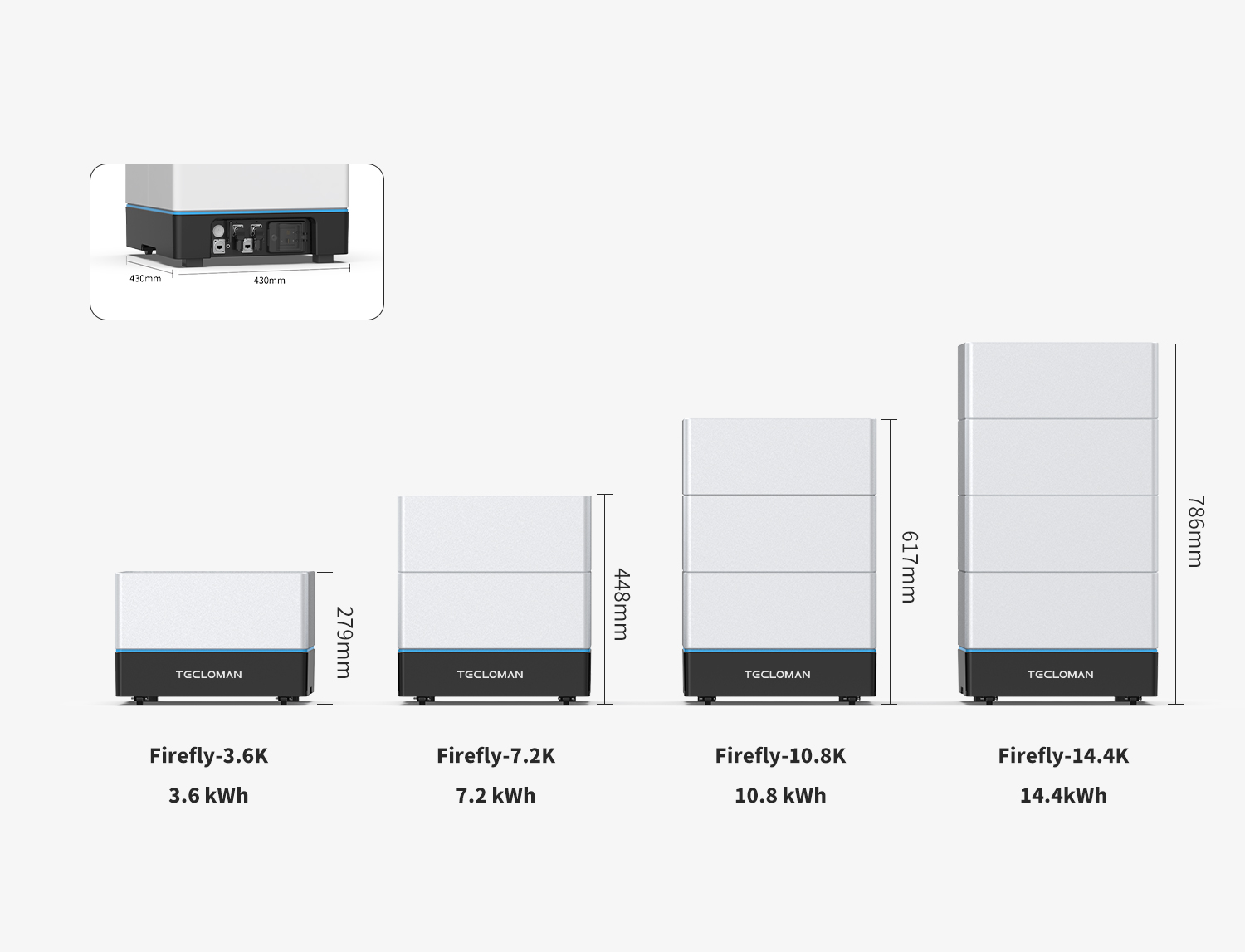

Model | Firefly-3.6K | Firefly-7.2K | Firefly-10.8K | Firefly-14.4K |
Battery module | 3.6kWh/37kg/LiFePO4 | |||
Number of modules | 1 | 2 | 3 | 4 |
Nominal capacity | 3.6 kWh | 7.2 kWh | 10.8 kWh | 14.4 kWh |
Available capacity | 3.24 kWh | 6.48 kWh | 9.72 kWh | 12.96 kWh |
Voltage | 51.2 Vdc | |||
Battery voltage range | 41.6~58.4Vdc | |||
Maximum continuous charge/discharge current | 37.5A | 75A | ||
Battery charging / discharging efficiency | >98% | |||
Communications | CAN/RS485/WI-FI | |||
Operating temperature | -10 - 45°C | |||
Operating humidity | 5 - 90%RH, without condensation | |||
Protection grade | IP54 | |||
Cooling mode | Natural heat dissipation | |||

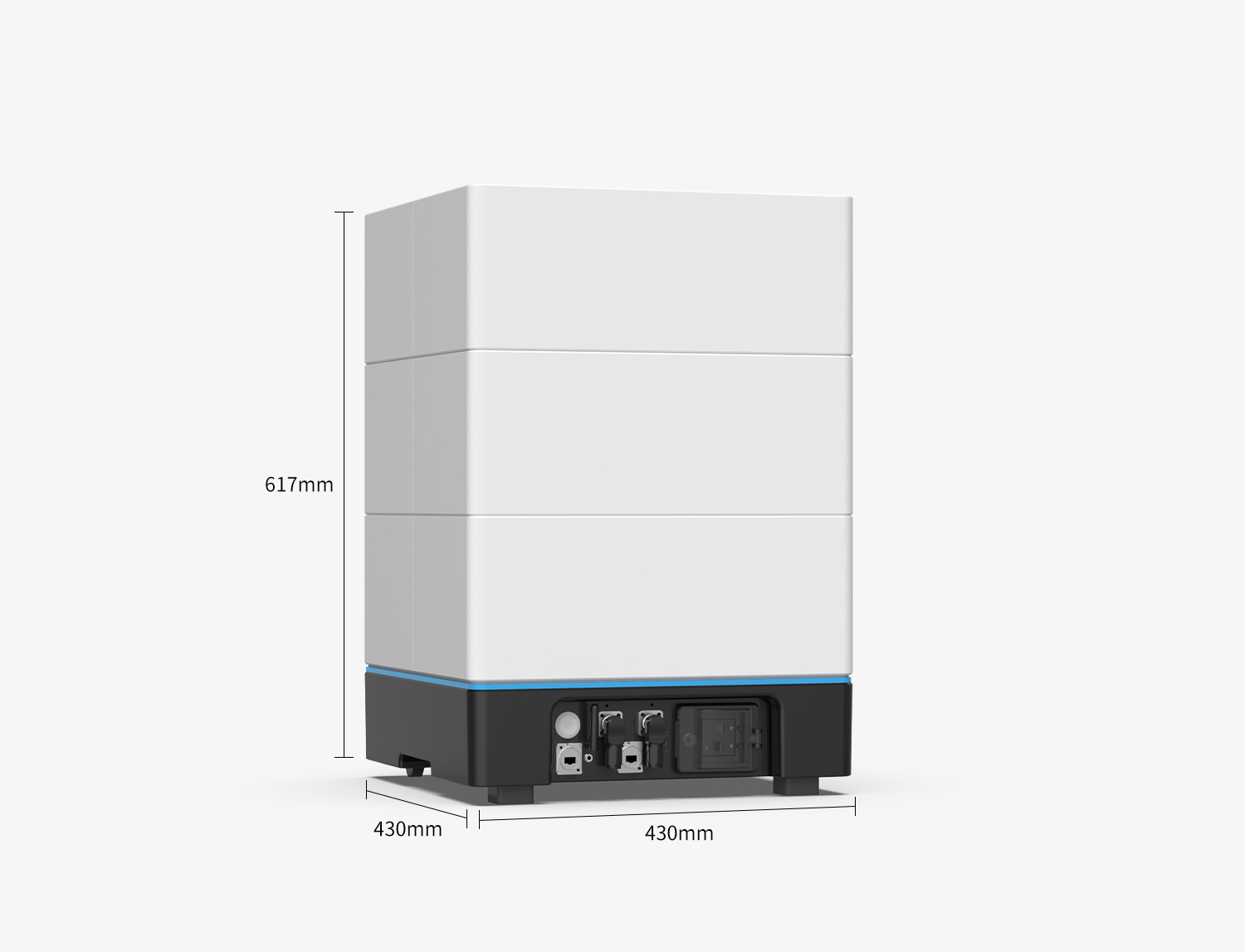

Dimension (W*D*H±2mm) | 430X430X279 mm | 430X430X448 mm | 430X430X617 mm | 430X430X786 mm |
Weight (±0.2kg) | 49kg | 86kg | 123kg | 160kg |
Certification & safety standards | TUV (IEC62619. IEC62040) / CB / RCM / CE / UN38.3 / RoHS | |||
Parallel operation | A maximum of 3 sets of parallel operation with the maximum electricity capacity of 43.2kWh and the maximum operating current of 75N3 | |||
