Firefly OS

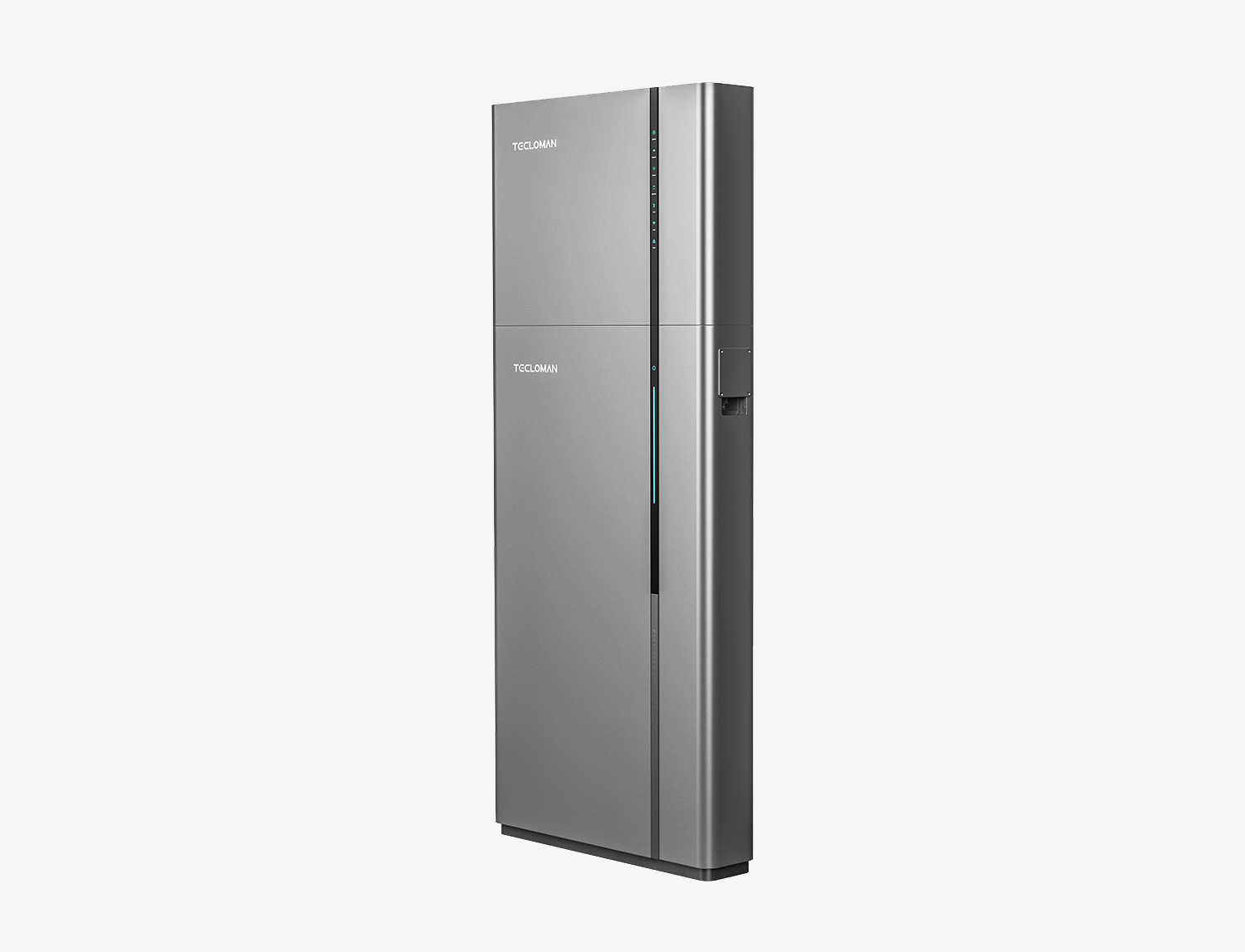

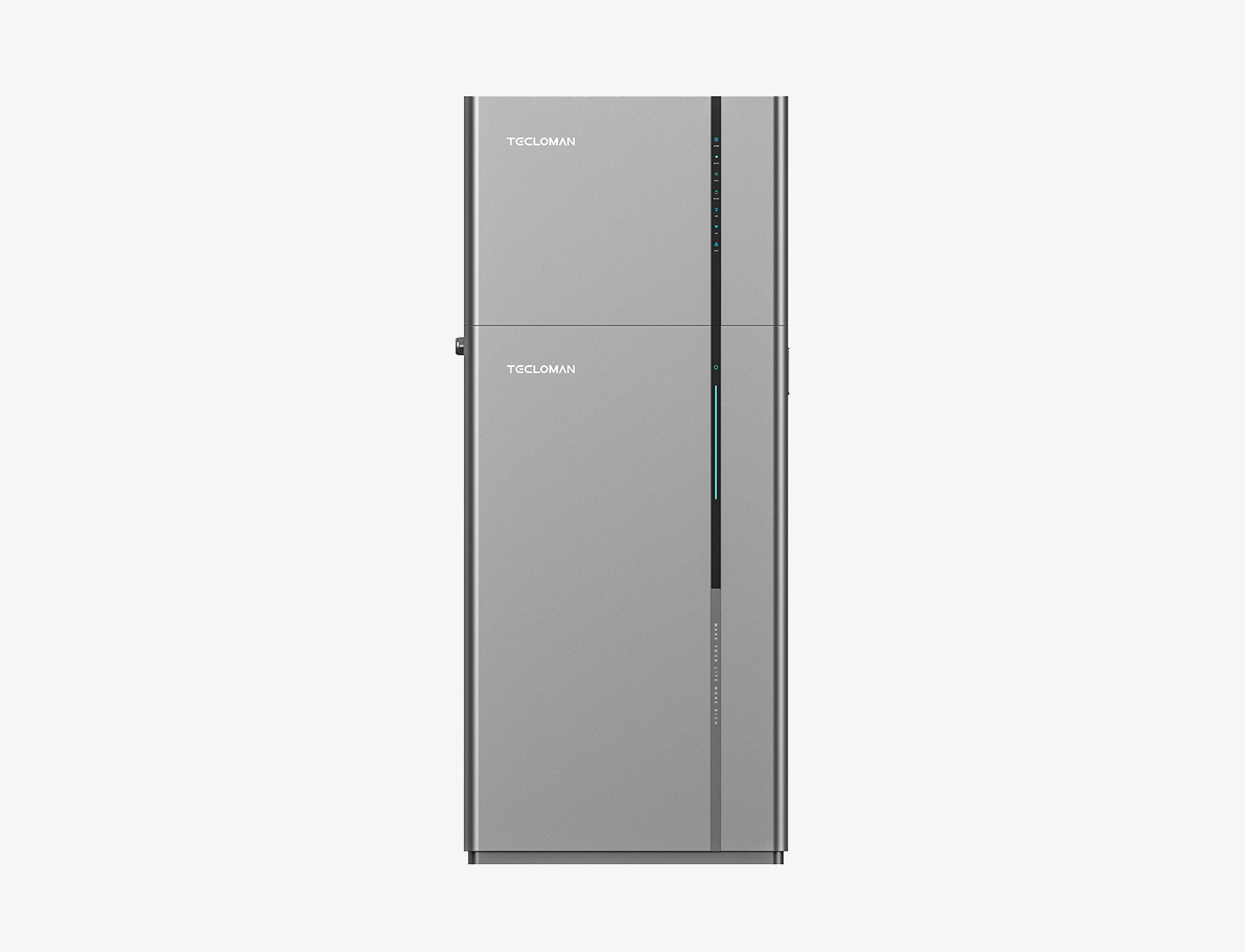

Firefly OS is independently developed and produced by Tecloman. Adopting a new battery Pack design and product molding style, the all-in-one quantitative battery system is organically combined with the optical storage all-in one machine to form a complete home storage system product.
The Firefly OS home storage system consists of standardized battery system (10kWh, 15kWh), integrated photovoltaic storage system (single-phase 5kW, three-phase 10kW, 15kW & North America 8kW), intelligent distribution box (single-phase, three-phase & North America split-phase), OEM home charging post and other standard products.
Discuss Firefly OS.
Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.
Documents for this product.
All product documentsTechnical specifications
Explore the details behind the system.
System Model | BH-OS-10 | BH-OS-15 |
Battery Type | Lithium iron phosphate | |
Rated capacity | 10kWh | 15 kWh |
Usable Capacity*1 | 9.5kWh | 14.25kWh |
Depth of Discharge | Up to 95%, adjustable | Up to 95%, adjustable |
Rated Voltage | 204.8Vdc | 307.2Vdc |
Operating voltage range | 179.2Vdc~230.4Vdc | 268.8Vdc~345.6Vdc |
Dimensions (Width * Depth * Height; ±5mm) | 745*170*1100mm | 745*170*1300mm |
Weight (Approx.) | 120kg | 180kg |
Max. Continuous Charging/Discharging Power | 10kW | 15kW |
Max. Continuous Charging/Discharging Current | 50A | |
Operating Temperature Range*2 | -20°C to 50°C (discharge); 0°C to 50°C (charge) | |
Relative humidity | 5% ~95% | |
Maximum working altitude | 3000 m | |
Protection Grade | IP55 | |
Installation method | Floor-mounted or wall-mounted | |
Communications | CAN、RS485、WIFI、Ethernet | |
Warranty | 10 years | |
Certification Standards | IEC62619、CE、UN38.3、UL1973、UL9540A、FCC | |
Parallel Expansion | Supports 2 to 6 units in parallel, allowing for a maximum capacity of 60 kWh & 90 kWh | |
Inverter Model | Hybrid-OS-E5K-S | Hybrid-OS-E8K-S | Hybrid-OS-E10T | Hybrid-OS-E15T | Hybrid-OS-E20T |
Photovoltaic Input | |||||
Maximum Input Power | 10kW | 16kW | 16kW | 24kW | 32kW |
Maximum Access Voltage | 600Vdc | 110Vdc | |||
MPPT Voltage Range | 80~580Vdc | 100~1080Vdc | |||
Number of MPPTs / Number of MPPT Access Strings Per Channel | 2, 1/2 | 2/2 | |||
Maximum Input Current | 18/36A | 36/36A | |||
Maximum Short-circuit Current | 22/44A | 44/44A | |||
AC Output (Grid Side) | |||||
Rated Output Power | 5kW | 8kW | 10kW | 15kW | 20kW |
Maximum Output Current | 21.7A | 34.8A | 14.5A | 21.7A | 29A |
Rated Output Current | 21.7A | 34.8A | 14.5A | 21.7A | 29A |
Operating Phase | 1P | 3P | |||
Rated Voltage | 220 / 230Vac | 220/380，230/400，240/415，312~520Vac | |||
Operating Voltage Range | 180~300Vac | 180~300Vac | |||
Rated Frequency | 50 / 60Hz | 50 / 60Hz | |||
Operating Frequency Range | 45 ~ 55 / 55 ~ 65Hz | 45 ~ 55 / 55 ~ 65Hz | |||
Power Factor | >0.99 | >0.99 | |||
THDi | ＜3% | ＜3% | |||
AC Output (Off-grid Side) | |||||
Rated Output Power | 5kW | 8kW | 10kW | 15kW | 20kW |
Maximum Peak Output Power | 8kW | 9.6kW | 20kW | 22.5kW | 24kW |
Switching Time between Parallel andOff-grid | ＜10ms | ＜10ms | |||
Rated Output Voltage/Range (L/N/PE) | 220/230/240V，180~300Vac | 220/380, 230/400, 240/415, 312~520Vac | |||
Rated Frequency | 50 / 60Hz | 50 / 60Hz | |||
Rated Output Current | 21.7A | 34.8A | 14.5A | 21.7A | 29A |
Total Voltage Harmonic Distortion Rate (@ Linear Load) | ＜2% | ||||
Efficiency | |||||
Maximum Efficiency | 98.6% | 98.8% | |||
European Efficiency/CEC Efficiency (North America) | 98.1% | 98.3% | |||
Basic Parameters | |||||
Weight | Approximately 20kg | ||||
Dimension (W×D×H) | 742×200×597mm | ||||
Operating Temperature | -25~60℃ | ||||
IP Rating | IP65 | ||||
Heat Dissipation Methods | Intelligent Air-cooled | ||||
External Communication | WIFI, Bluetooth, RS485,and CAN | ||||
Certification | |||||
Safety Regulation | IEC-62109-1/-2,IEC-62477-1,IEC-61000-6-1/-3 (under certification) | ||||
Grid-connection | AS/NZS 4777.2:2020, EN50549-1:2019, G98:2021, G99:2021,VDE-AR-N 4105 (under certification) | ||||
Inverter Model | Hybrid-OS-US7.6K | ||
Photovoltaic Input | |||
Maximum Input Power | 11.4kW | ||
Maximum Access Voltage | 600Vdc | ||
MPPT Voltage Range | 80~550Vdc / 360Vdc | ||
Number of MPPTs / Number of MPPT Access Strings Per Channel | 3 / 1 | ||
Maximum Input Current | 15.5A / 15.5A / 15.5A | ||
Maximum Short-circuit Current | 26A / 26A / 26A | ||
AC Output (Grid Side) | |||
Rated Output Power | 7.6kW | ||
Maximum Output Current | 31.7A | ||
Rated Output Current | 31.7A | ||
Operating Phase | 1P | ||
Rated Voltage | 240Vac | ||
Operating Voltage Range | 211.2 ~ 264Vac | ||
Rated Frequency | 60Hz | ||
Operating Frequency Range | 55 ~ 65Hz | ||
Power Factor | >0.99 | ||
THDi | ＜3% | ||
AC Output (Off-grid Side) | |||
Rated Output Power | 7.6kW | ||
Maximum Peak Output Power | 8.36kw | ||
Switching Time between Parallel and Off-grid | ＜10ms | ||
Rated Output Voltage/Range (L/N/PE) 220/380, 230/4 | 00, 240/415, 312~520Vac | ||
Rated Frequency | 50 / 60Hz | ||
Rated Output Current | 31.7A | ||
Total Voltage Harmonic Distortion Rate (@ Linear Load) | ＜2% | ||
Efficiency | |||
Maximum Efficiency | 97.6% | ||
European Efficiency/CEC Efficiency (North America) | 97% | ||
Basic Parameters | |||
Weight | Approximately 20kg | ||
Dimension (W×D×H) | 742×200×597mm | ||
Operating Temperature | -25~60℃ | ||
IP Rating | IP65 | ||
Heat Dissipation Methods | Intelligent Air-cooled | ||
External Communication | WIFI, Bluetooth, RS485,and CAN | ||
Certification | |||
Safety Regulation | IEC-62109-1/-2,IEC-62477-1,IEC-61000-6-1/-3 (under certification) | ||
Grid-connection | AS/NZS 4777.2:2020, EN50549-1:2019, G98:2021, G99:2021,VDE-AR-N 4105 (under certification) | ||
