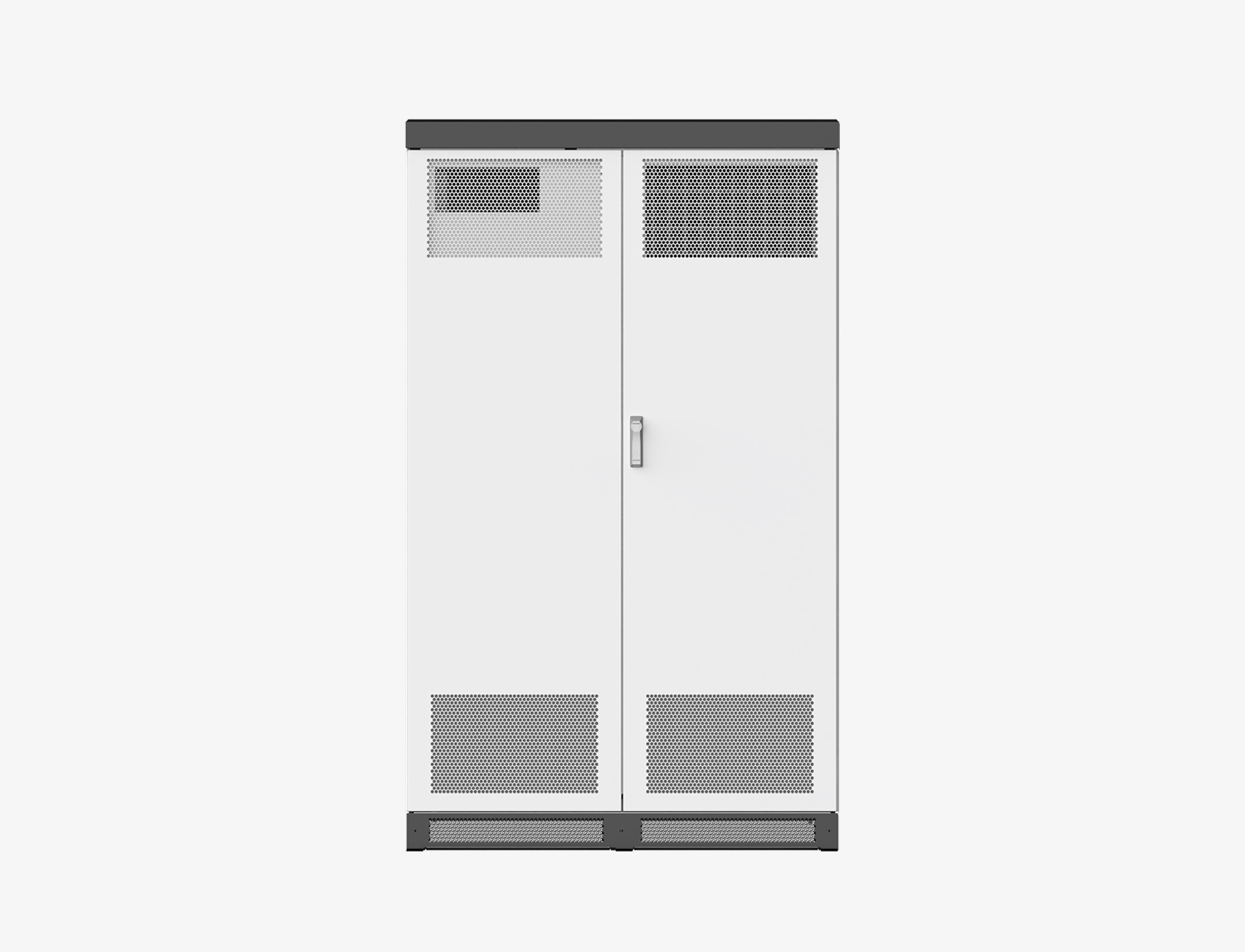

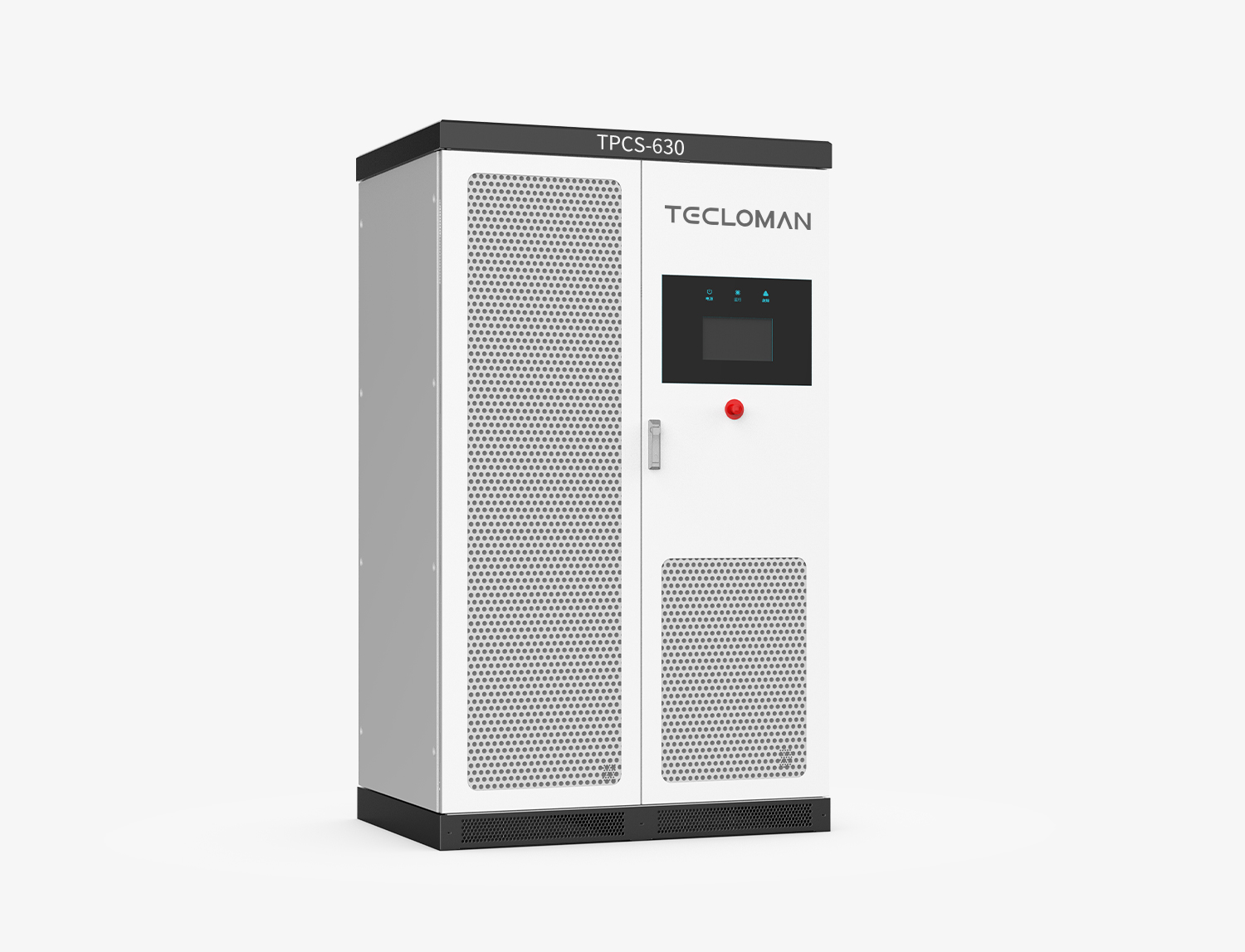

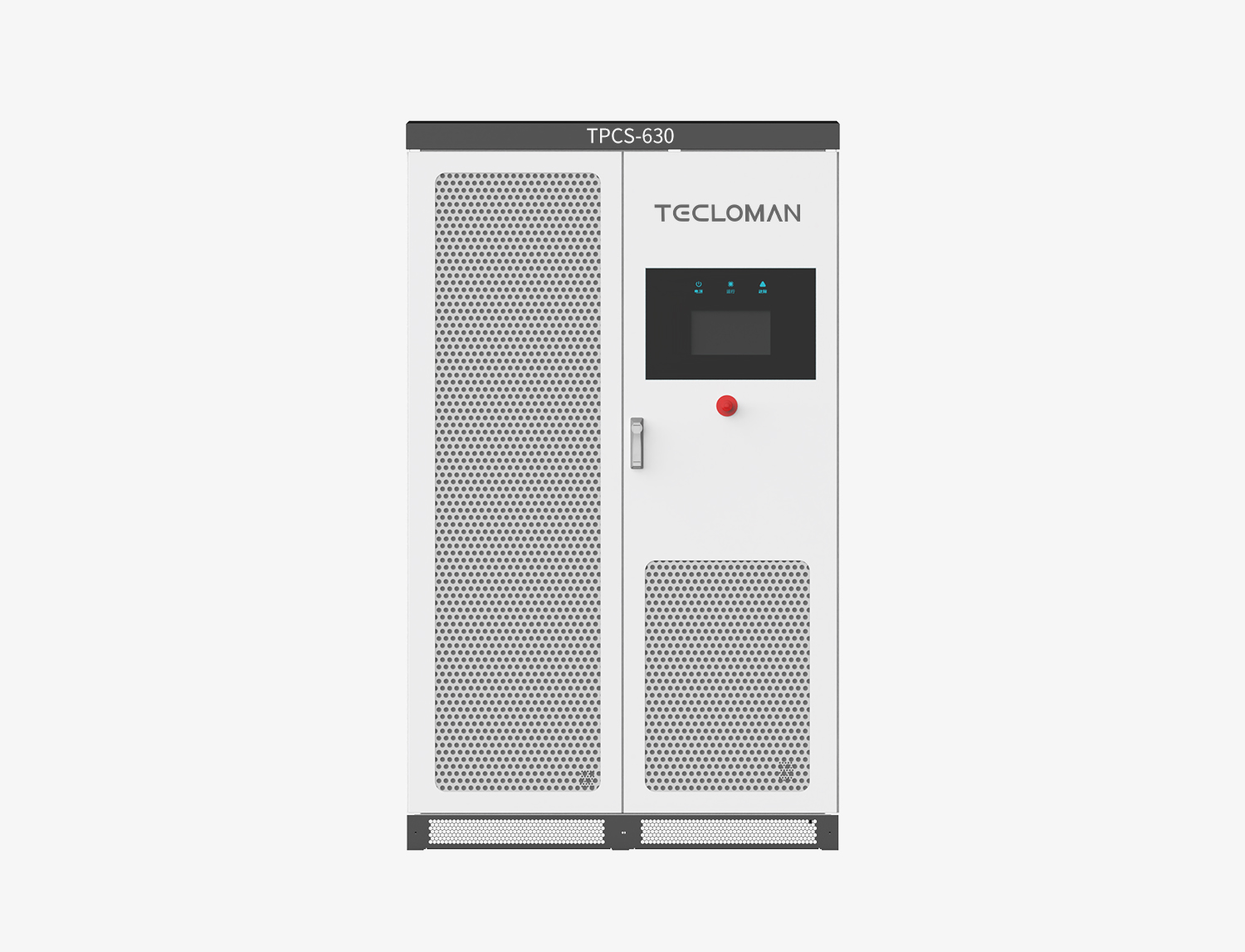

630kW BESS PCS

Model

TPCS-630

DC parameters

Maximum operating voltage

1000V

Minimum operating voltage

570V

Full load voltage range

600V~850V

Maximum input current

1166A

On-grid AC parameters

Rated output power

630kW

Maximum apparent power

693kVA

AC rated voltage

400V

AC rated frequency

50Hz/60Hz

Rated output current

909A

Maximum output current

1000A

Maximum overload capacity

110% overload (long time), 120% overload (1 min)

AC voltage range

85%UN~110%UN

AC frequency range

45-55Hz/55-65Hz (settable)

Harmonic distortion rate of maximum current

<3%

DC component of current

<0.5% of rated output current

Power factor

-0.99(advance) ~ 0.99 (lag)

Controllable range of reactive power

-100%~100%

Isolation method

None

AC mode

3W+PE

Off-grid AC parameters

AC rated voltage

400V

AC rated frequency

50Hz∕60Hz

Harmonic distortion rate of maximum voltage

<3% (linear load)

DC component of voltage

<0.5% UN (Linear balanced load)

Unbalanced load capacity

100%

Voltage change range

<3%UN

On-grid & off-grid switching mode

On-grid & off-grid switching capability

Planned off-grid

Passive off-grid switching method and switching time

<10ms with switching cabinet

Efficiency

Maximum efficiency

99.00%

Basic Parameters

Dimensions (W*D*H)

1,216mm * 850mm * 2,054mm

Weight

1200kg

Permissible operating temperature range

-25°C-55°C (derating above 45°C)

Cooling type

Forced air cooling

Level of protection

IP20

Relative humidity

≤95% RH with no condensation

Maximum altitude

4,000m (derating above 2,000m)

Self-consumption during shutdown

<50W

Human-machine interface

Touch screen

Communication interface

RS485, Ethernet, CAN

Protocols supported

Modbus TCP, Modbus RTU

Certificates

IEC62477-1,IEC61000-6-2,IEC61000-6-4,EN50549-1,C10-11
