1500V Energy storage converter

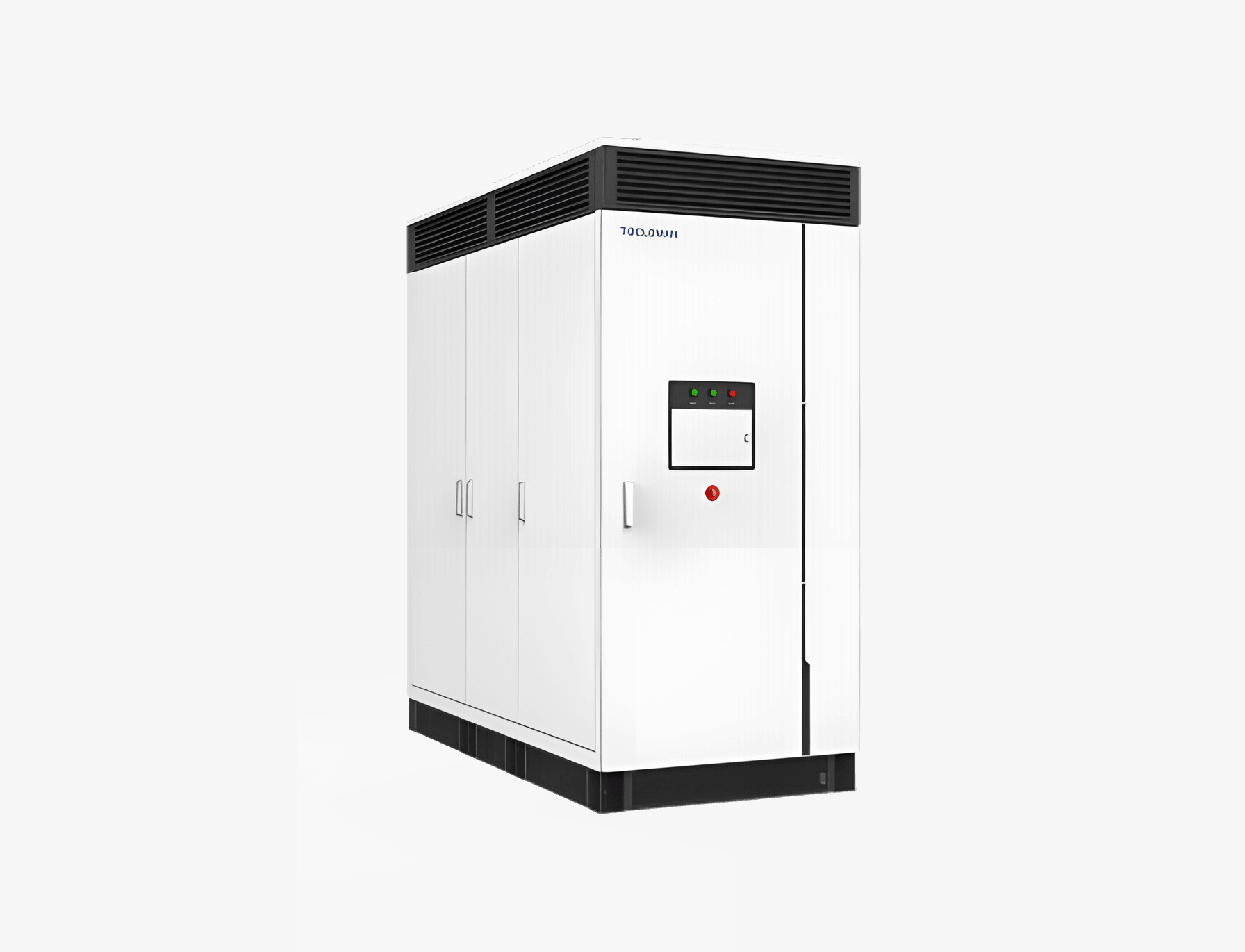

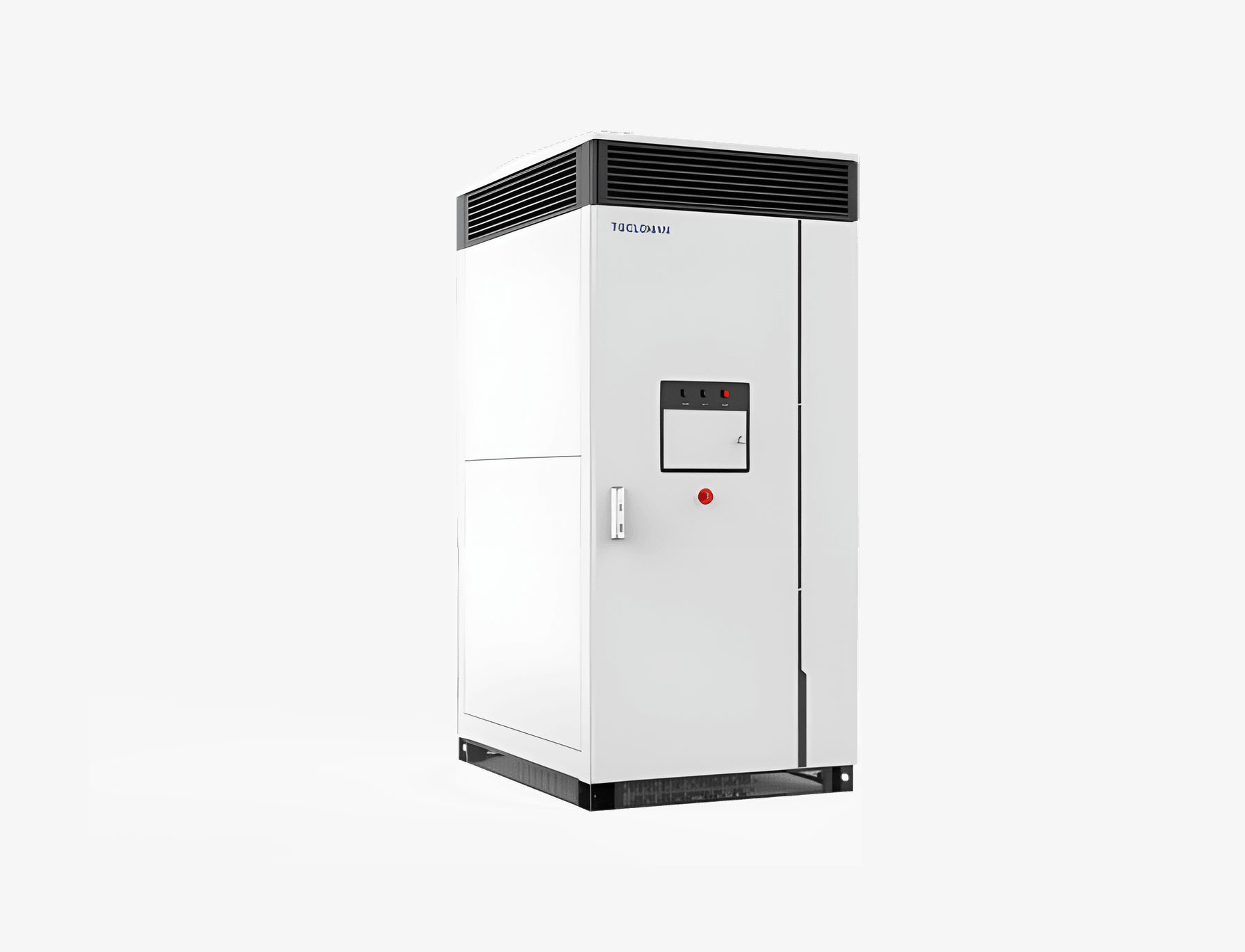

The 1500V energy storage converter is a wide DC voltage range AC/DC bi-directional converter with high power density and small footprint, which is suitable for high-power grid-connected and off-grid applications.
Discuss 1500V Energy storage converter.
Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.
Documents for this product.
All product documentsTechnical specifications
Explore the details behind the system.
Model | TPCS-1250 | TPCS-1375 | TPCS-1575 | TPCS-1725 | TPCS-2500 | |
DC | ||||||
Max. Voltage | 1500V | |||||
Voltage Range | 800~1500V | 800~1500V | 915~1500V | 1000~1500V | 1000~1500V | |
Max. Current | 1935A | 1935A | 1935A | 1935A | 3000A | |
Grid | ||||||
Rated Power | 1250kW | 1375kW | 1575kW | 1725kW | 2500kW | |
Max. Capacity | 1375kVA | 1513kVA | 1733kVA | 1898kVA | 3000kVA | |
Max. Current | 1443A @ 45℃ / 1587A @ 30℃ | 2092A @ 45℃ / 2510A @ 30℃ | ||||
Access Method | 3P3L | |||||
Isolation Method | Unisolated | |||||
Reactive Power Range | -100%~100% | |||||
Rated Voltage | 550V | 550V | 630V | 690V | 690V | |
Voltage Range | 484~605V | 484~605V | 554~693V | 607~759V | 607~759V | |
Frequency | 50Hz/60Hz | |||||
Frequency Range | ±5Hz | |||||
Total Harmonic Distortion Rate Of Current | ≤3%（Rated power ） | |||||
Power Factor | ＞0.99（Rated power ） | |||||
Charge/discharge Conversion Time | ＜100ms | |||||
Off-grid | ||||||
Rated Voltage | 550V | 550V | 630V | 690V | 690V | |
Voltage Deviation | <1%UN（Linear balanced load ） | |||||
Voltage Unbalance | <0.5%UN（Linear balanced load ） | |||||
Voltage Total Harmonic Distortion Rate | <3%（Linear load ） | |||||
Frequency | 50Hz/60Hz | |||||
Unbalanced Load Carrying Capacity | 100% | |||||
Protection | ||||||
DC Input Protection | Disconnect switches + Fuses | |||||
AC Output Protection | Interrupter | |||||
Surge Protection | DC Type II / ACType II | |||||
Insulation Monitori | Yes | |||||
Overheating Protection | Yes | |||||
System | ||||||
Inlet Method Bottom | feed | |||||
Max. Efficiency | >99% | |||||
Overload Capacity | 110% for long-time；120% for 1min | |||||
Operating Temperature | -35℃~ 60℃ (>45°C derating operation, < -20°C heating start) | |||||
Relative Humidity | 0％ ~ 100％RH，without condensation | |||||
Max. Altitude | 5000m，（ >2000m derating ） | |||||
Noises | ＜80dB | |||||
Dimension（W×D×H） | 1080×1480×2405mm | 1080×2380×2444mm | ||||
IP Level | > IP54 | |||||
Cooling | Forced air | |||||
Communication Interface | RS485, Ethernet | |||||
Cmmunication Protocol | MODBUS-RTU, MODBUS-TCP, IEC61850 ( GOOSE & MMS ) ，IEC104 | |||||
Certifications | ||||||
Certification Standards | GB/T 34120, GB/T 34133 | |||||
