500kW Modular PCS

Categories：

Other

Tag：

other

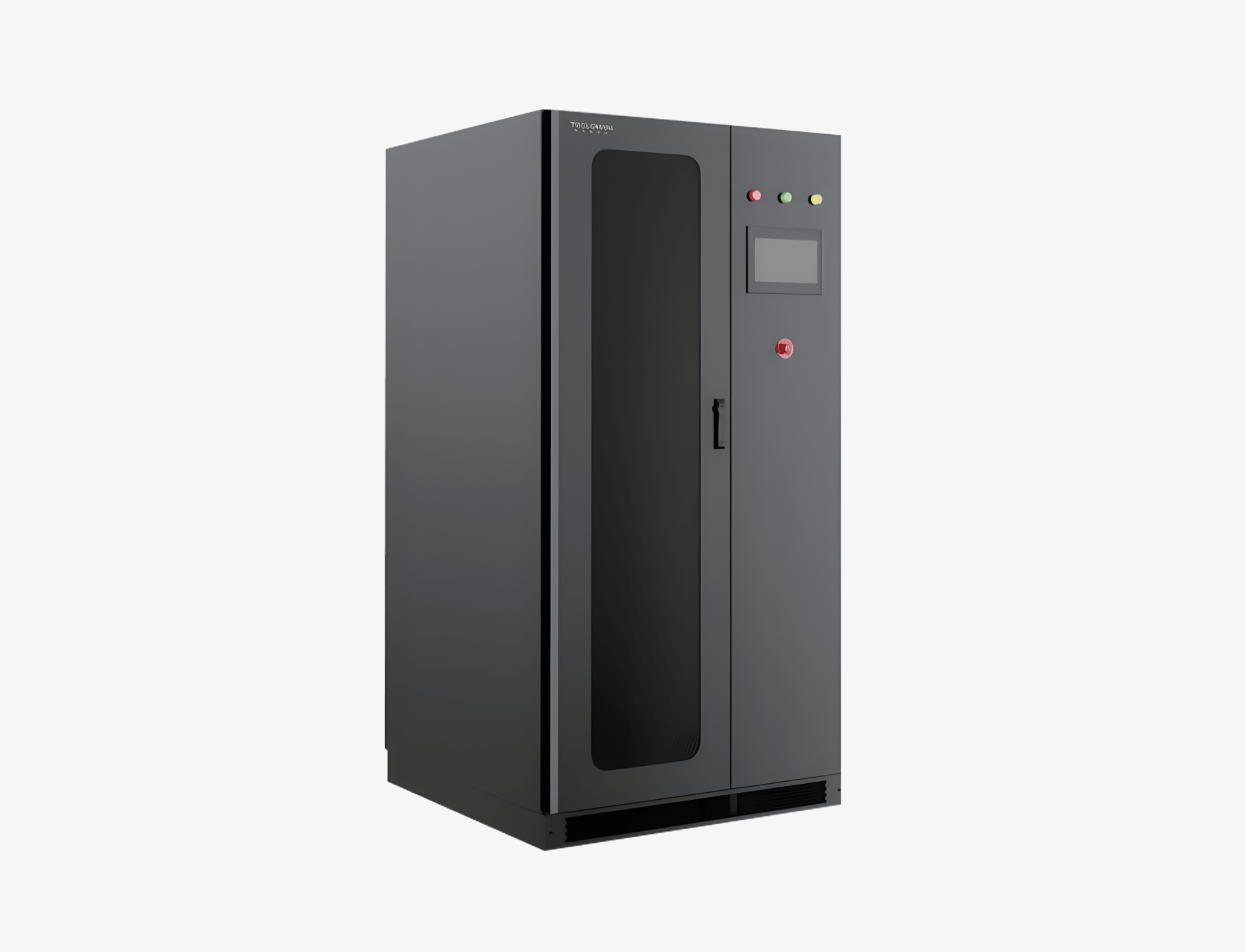

The 500kW modular PCS is a powerfulAC/DC bidirectional conversion device designed for BESS.

YOUR PROJECT. A CLEARER NEXT STEP.

Discuss 500kW Modular PCS.

Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.

ENGINEERED FOR PERFORMANCE

Explore the details behind the system.

Model		TPCS-500
Battery Interface Parameters	Operating voltage range	650V~800V
	Single channel input maximumcurrent	154A
	Maximum number ofchannels	5
Grid-connected AC parameter	Output line system	3W+N+PE/3W+PE
	Rated Power	500KW
	Rated Voltage	400V
	ACvoltage range	85%U~110%U
	Rated current	721A
	Rated Frequency	50Hz/60Hz
	Frequency range	±5Hz
	Maxmuim Current Total Harmonic Distortion	≤3%
	Power factor	-0.99(advance)~0.99 (lag)
	Reactive power controllable range	-100%~100%
	Maximum overload capacity	110%overload (long-term),120%overload (Imin)
	Isolation method	No/isolation transformer(optional)
Off-grid AC parameter	AC rated voltage	400V
	AC rated frequency	50Hz/60Hz
	Maxmuim Voltage Total Harmonic Distortion	≤3%(linear load)
	Load capacity ofunbalance load	100%
	Voltage variation range	<3%U
	Overload capability	110%过载overload (long-term),120%overload (1min)
Gird-connection and offswitch mode	Gird-connection and offswitch capacity	Planned off-gric
	Passiveoff-grid switching mode and switchingtime	<10ms with switching cabinet
	Maximum efficiency	98.7%
Basic parameters	Dimensions (WXHXD)	1000mm×2012mm×1000mm
	Weight	800kg
	Permissible operating temperature range	-20℃~55℃(over 45℃,it will operate in derating)
	Cooling method	Forced air cooling
	Protection Grade	IP20
	Relative humidity	≤95%RH,non-condensing
	Highest Altitude	4000m(over 2000m,it will operate in derating)
	Self power consumption in shutdown	<100W
	HMI	Touch Screen
	Noise	<75db
	Communication Interface	RS485,Ethernet,Can
	Support protocols	Modbus TCP、Modbus RTU
