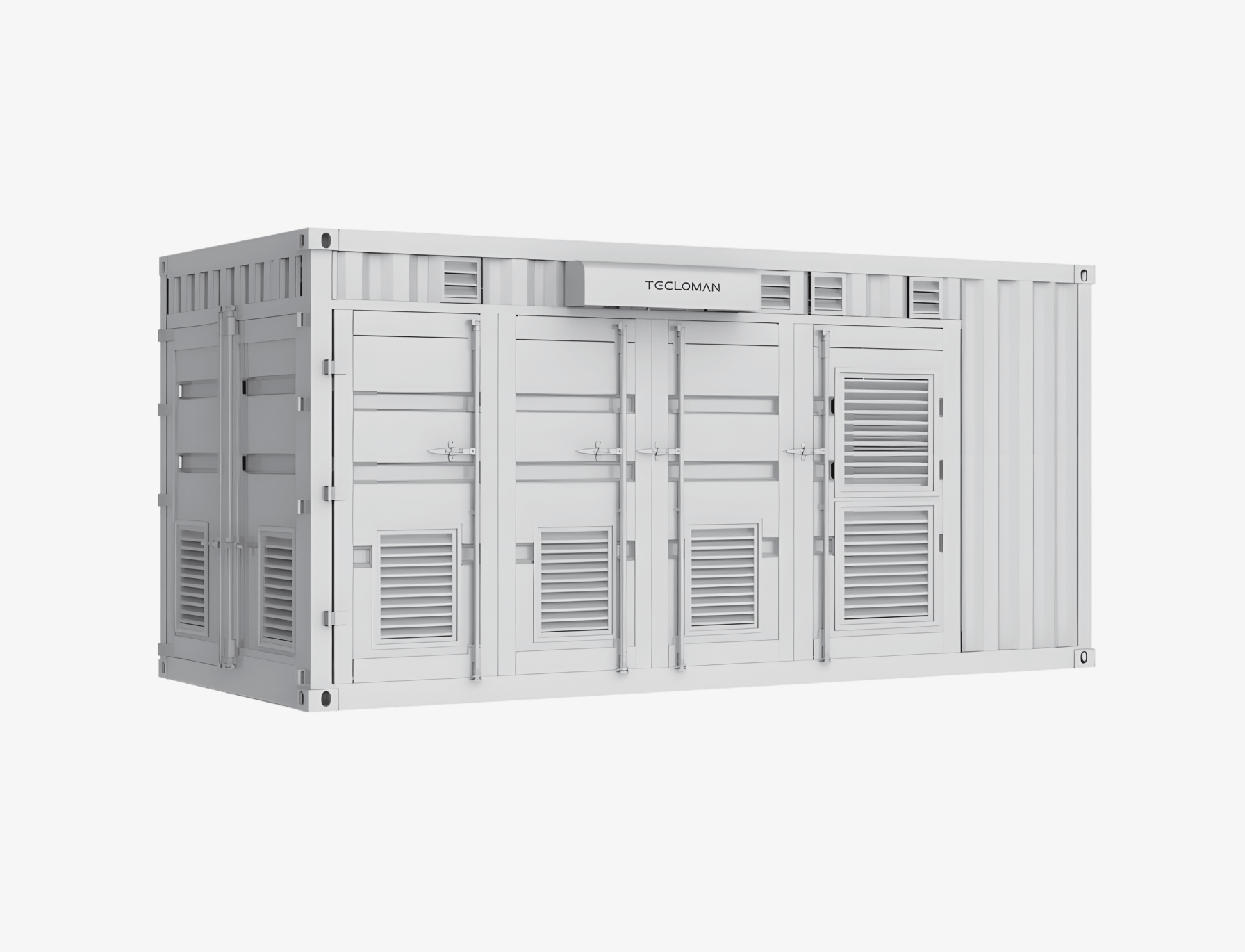

1000V All-In-One BatteryEnergy Storage System
The system is a power supply system integrating energy storage converter,high and lowvoltage distribution equipment,step-up transformer and station power supply system,which can support 6~35kV grid access and meet the application of large or super large energy storage power plant.
Discuss 1000V All-In-One BatteryEnergy Storage System.
Bring your site requirements to our Australian team. We will help identify the relevant model documents and configuration information.
Documents for this product.
All product documentsTechnical specifications
Explore the details behind the system.
Model | TBVS-1000K-T | TBVS-1260K-T |
DC side parameters | ||
Maximum DCvoltage | 1000vdc | |
DCvoltage range | 600Vdc~850Vdc | |
Maximum DC curren | 1852A | 2332A |
Automatic pre-charge function | Equipped | |
AC(grid-connected)parameters | ||
Rated Power | 1000kw | 1260kw |
Maximum power | 1100kw | 1386kw |
Maximum current | 1588A | 2000A |
Ratedgrid-connected voltage | 400Vac | |
Allowable Voltage Range | 400Vac士10% | |
Frequency range | 50/60Hz土5Hz | |
Power Factor /Adjustable Range | - 0.99(Overrun)~0.99(lagging) | |
THDI | ≤3% | |
AC(off-grid)parameters | ||
RatedVoltage | 400Vac | |
VoltageAccuracy | 1% | |
Maximum current | 1588A | 2000A |
Output Frequency | 50/60Hz土5Hz | |
THDU | ≤3% | |
Efficiency | - | |
Maximum efficiency | 99% | |
Transformer Characteristics | ||
Rated Power | 1000kw | 1260kw |
Voltage Ratio | 0.4/6~35kV | |
Transformer Type | Oil change /dry change | |
Basic Features | ||
Protection Grade | IP54 | |
Operating Temperature | -15℃-50℃ | |
Relative humidity | ≤95%RH,non-condensing | |
Cooling method | Air cooling | |
Weight | About 1200kg | |
Altitude | 4000m(more than 2000m reduction) | |
Human-computer interaction | Touch Screen | |
Noise | ≤65dB | |
Communication mode | Ethernet.RS485、4G | |
Outline Dimensions | 6058mmx2896mmx2438mm | |
